Principal Components

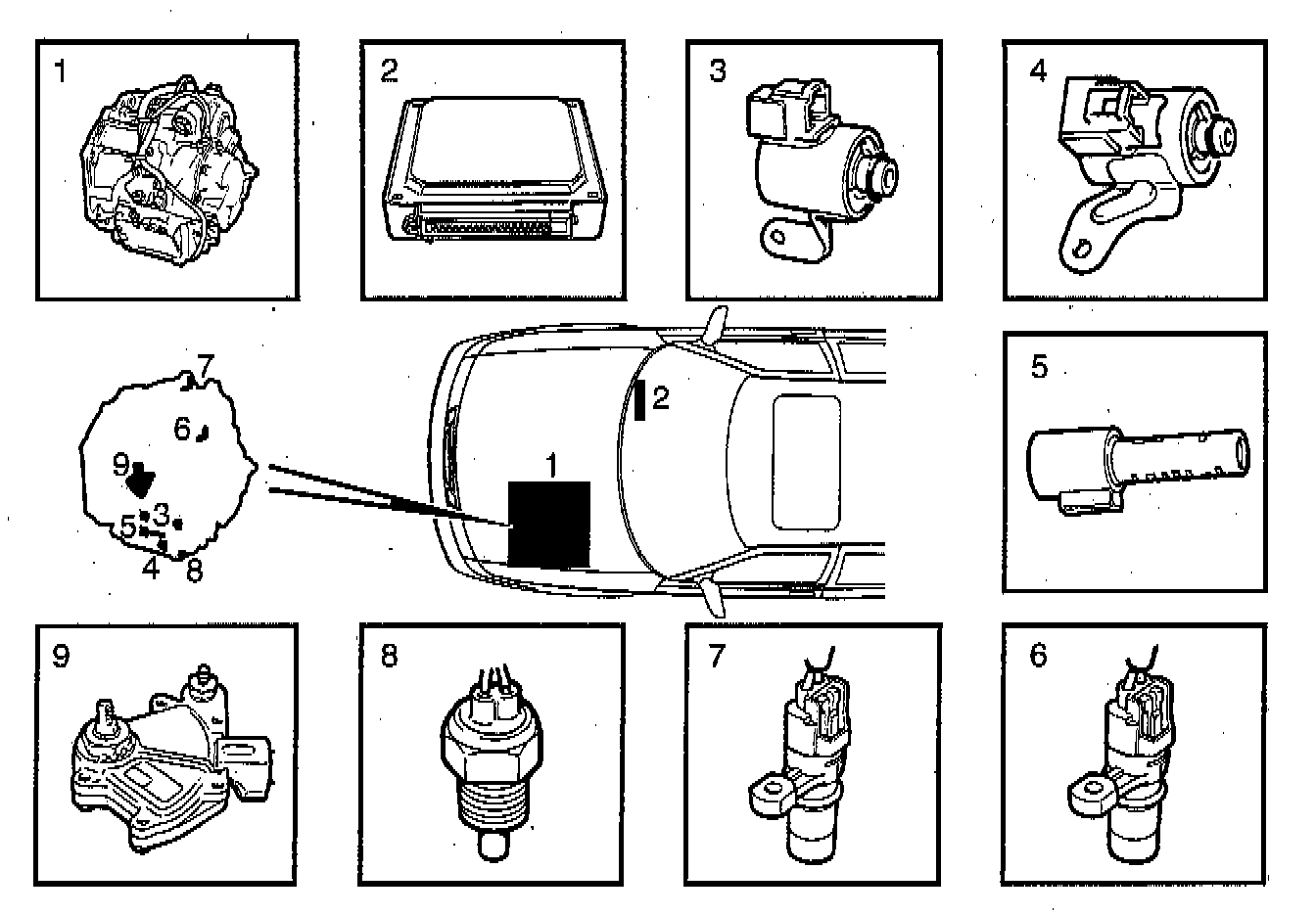

Component Locations:

The Automatic Transmission Consists Of The Following Principal Components:
1. Transmission
2. Transmission control module
3. Solenoid valves for shifting
4. Solenoid valve for lock-up
5. Solenoid valve for system pressure
6. Input shaft speed sensor
7. Output shaft speed sensor
8. Transmission fluid temperature sensor
9. Gear selector position sensor
