Outputs of the Transmission Control Module

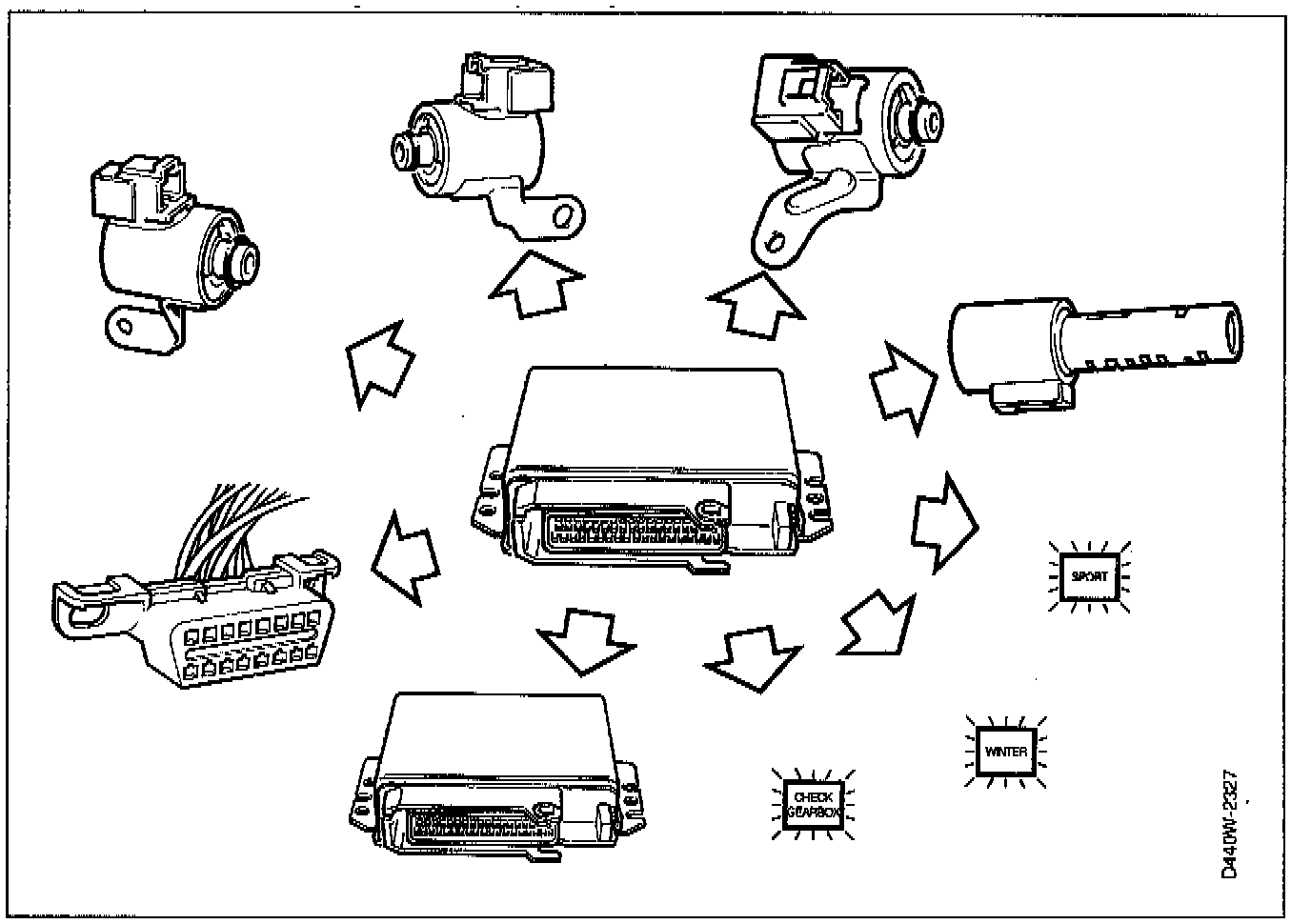

OUTPUTS OF THE TRANSMISSION CONTROL MODULE (TCM)
^ Shift solenoid S1 (pin 1)
^ Shift solenoid S2 (pin 3)
^ Torque converter clutch (TCC) solenoid SL (pin 19)
^ Pressure control solenoid (pins 16, 34)
^ SPORT indicator lamp (pin 24)
^ WINTER indicator lamp (pin 7)
^ Warning lamp CHECK GEARBOX (pin 6)
^ Signal, torque limitation (pin 13)
^ Signal, drive (pin 11)
^ Data link K (pin 23) (also input)
