Limp Home Mode





LIMP-HOME MODE

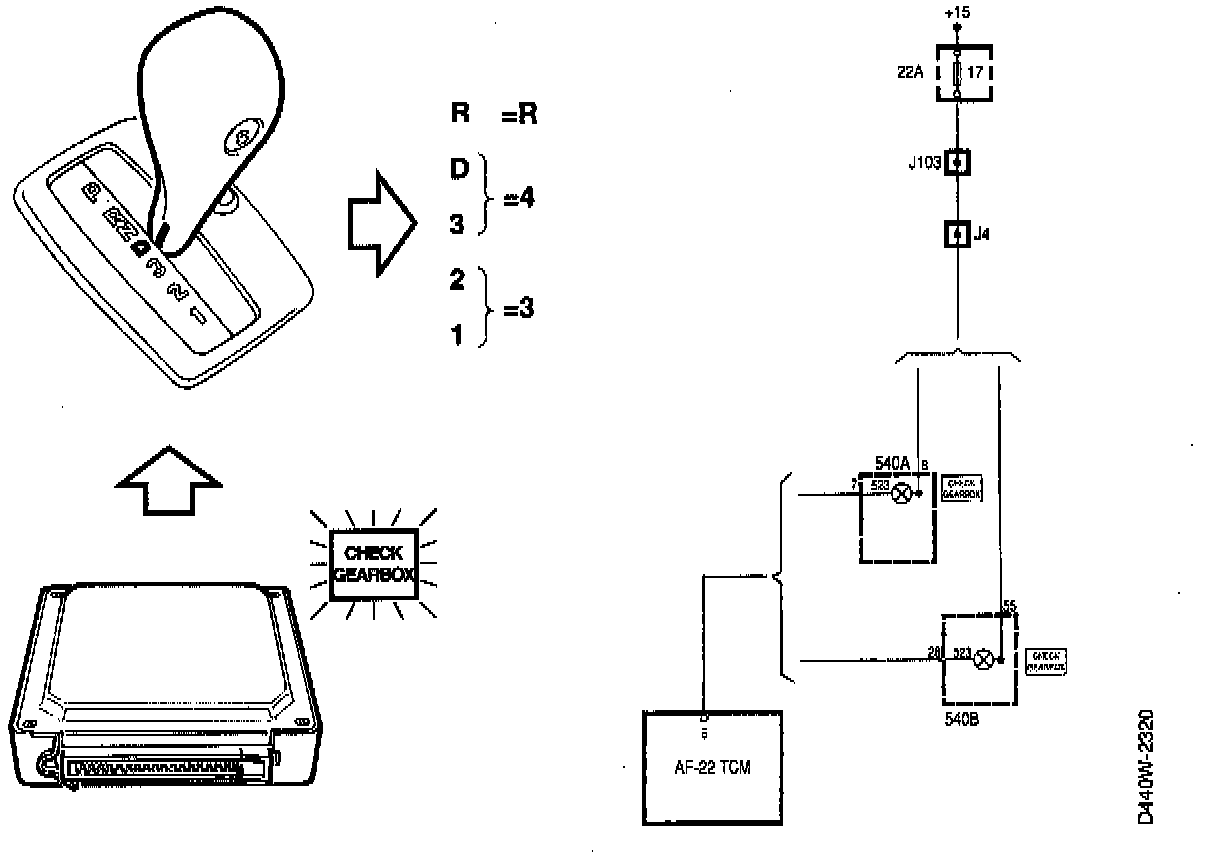

If a fault should occur in the transmission control module or in any of the sensors, the system goes into an emergency operation program, the limp-home mode. It is then only possible to run the car in 3, 4 and R gears by moving the selector lever manually between these positions.

The emergency operation program gives a gear position as follows:
Gear position P R N D 3 2 1
Emergency operation P R N 4 4 3 3
