Electronic Reverse Gear Lock

ELECTRONIC REVERSE GEAR LOCK

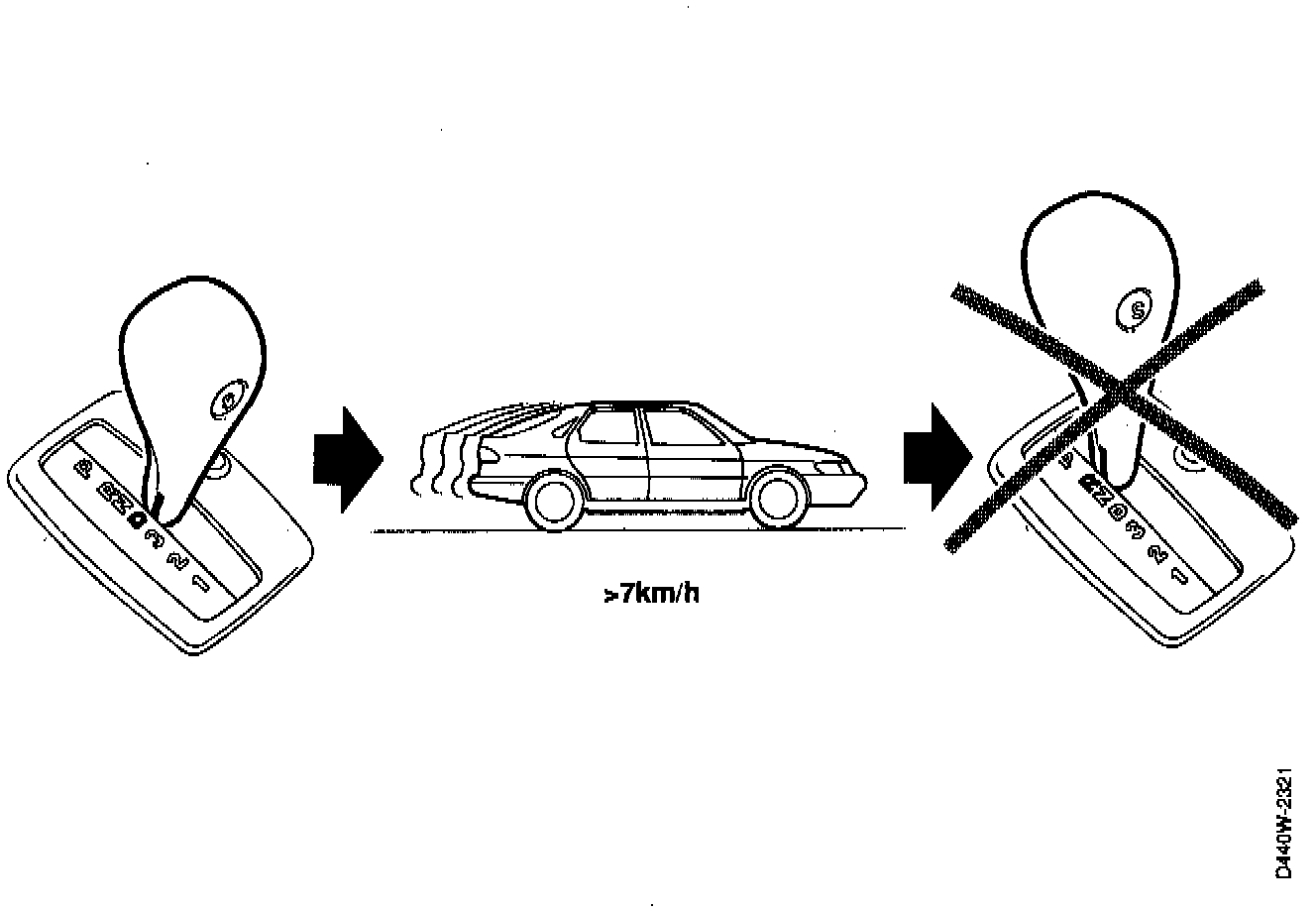

When you shift to R from D, 3, 2 or 1 at the same time as the car exceeds a certain speed, the transmission control module sends a signal to solenoid S1, which prevents the reverse gear from being engaged (brake B3 releases).

The electronic reverse gear lock is released when:
1. The speed of the car falls below 7 km/h (4 mph).
2. The selector lever is moved to a position other than R.
