Electronic Over-Revving Protection





ELECTRONIC OVER-REVVING PROTECTOR

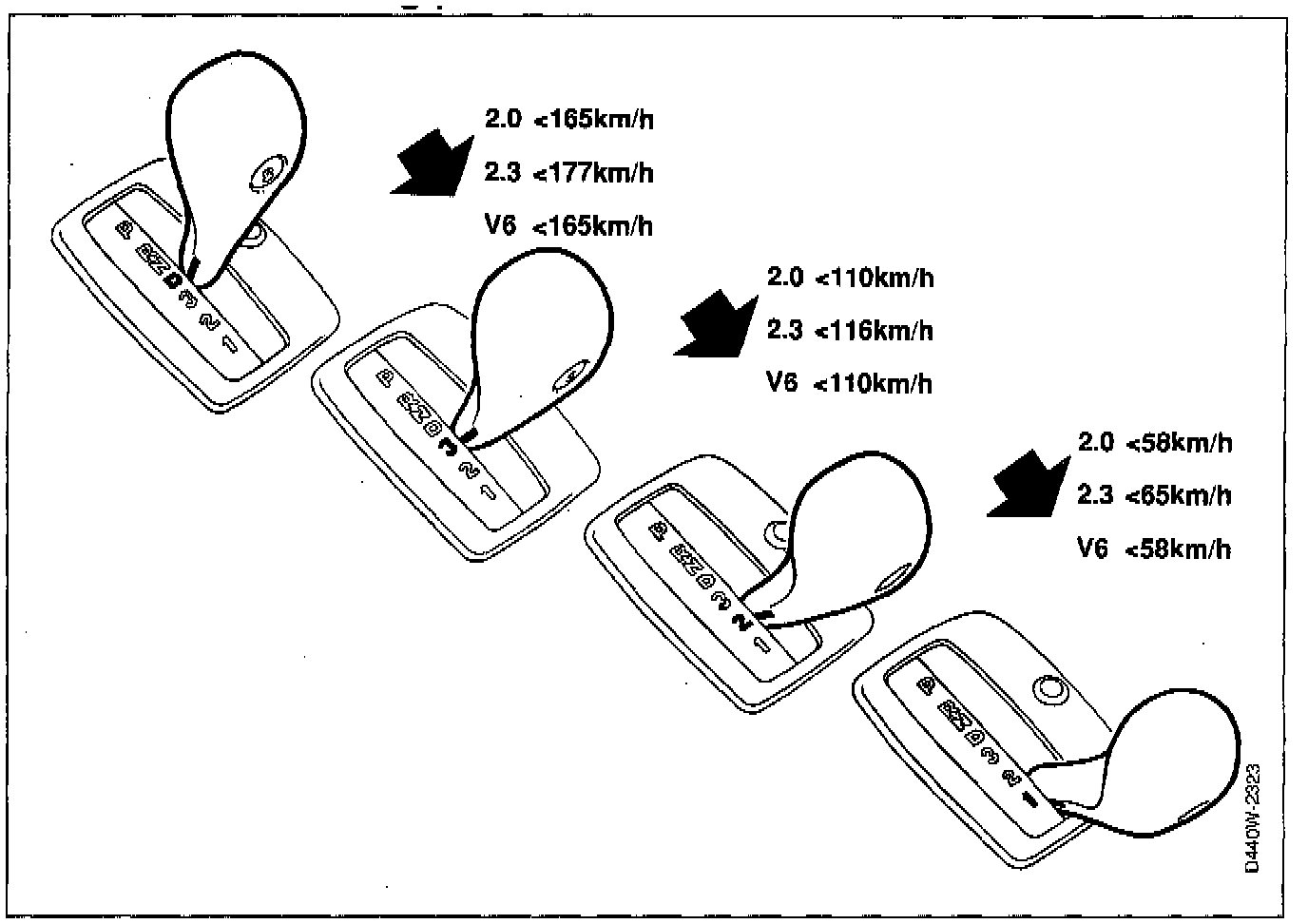

To prevent the engine from over-revving, the transmission is fitted with an over-revving protector. This means that it is not possible to shift to a lower gear until the speed of the car is below the limit value for the gear in question.

4-3 165
3-2 110
2-1 58
