Suspension - Front End Vibration: Overview

CATEGORY
Suspension

SECTION
7

PAGE
9

ISSUE
02/95-0551

CODE
731

Subject:
Changing to Hydraulic Suspension Arm Bushings

Application:
1994-900 (excluding 1994 Convertibles)
1995 900 Convertibles
Up to VIN Serial Nos. S2012271 and S7014772

Supersedes PSI 04194-0457

As a running production change, the suspension system of the 900 models has been updated to include hydraulic suspension arm bushings. This took effect as from VIN Serial No. S2012272 and S7014773. Should you have a customer complain of unacceptable front end vibration, follow the instructions below and change to hydraulic suspension arm bushings.

Cars Affected:

1994-900 models excluding Convertibles
1995 Convertibles
Up to VIN Serial Nos. S2012271 and S7014772

Parts:

Hydraulic suspension arm kit for cars
fitted with 15" wheels (manual or auto. transmission) 89 94 055

Axle counterweight must be used in conjunction
with P/N 89 94 055 on cars equipped with
automatic transmission 46 45 594

Hydraulic suspension arm kit for cars 89 94 063
fitted with 16" wheels and manual transmission

Wheel covers (steel wheels only) 45 45 729

Hub nut 89 65 360

Clamp for rubber boot 43 99 341

Subframe rear bolt (2) 43 45 666

Tools:

Lifting beam 83 93 947

Foot 83 94 769*

Puller 89 96 696*

Engine support table J39580-SAAB*

Fitting ring 87 91 972**

Press shaft bearing race 87 91 204**

Supplies:

Molycote 33 or equivalent rubber bushing lubricant

Loctite 242

CV joint grease

Transmission Fluid 02 69 936

*Current "essential" special tools

*Were formerly essential tools for working on 900 and 9000 gearboxes.

Warranty Information:

Based on a customer complaint, submit a warranty claim using the following information:

Failure code: 10815-10-0-01/06-01

Labor operation: 10815 for 2.7 hr. rebuilding chassis

Labor operation: 12602 for 0.6 hr. front end alignment

Labor operation: 10816 for 0.5 hr. for test drive.

NOTE:
For automatic transmission please add: straight time for 0.5 hr.

Please update your DCS tables using the following information:

Failed part: 10815 Changing Hyd. Susp.arm bushings

Operation number: 10815 Rebuilding Chassis for 2.7

Operation number: 10816 Test drive/10815

Engine type = 9

Transmission type = B

Beginning Year = 94, End Year = 95

Add $7.00 total for Molycote 33, Loctite and CV grease supplies under sublet amount.

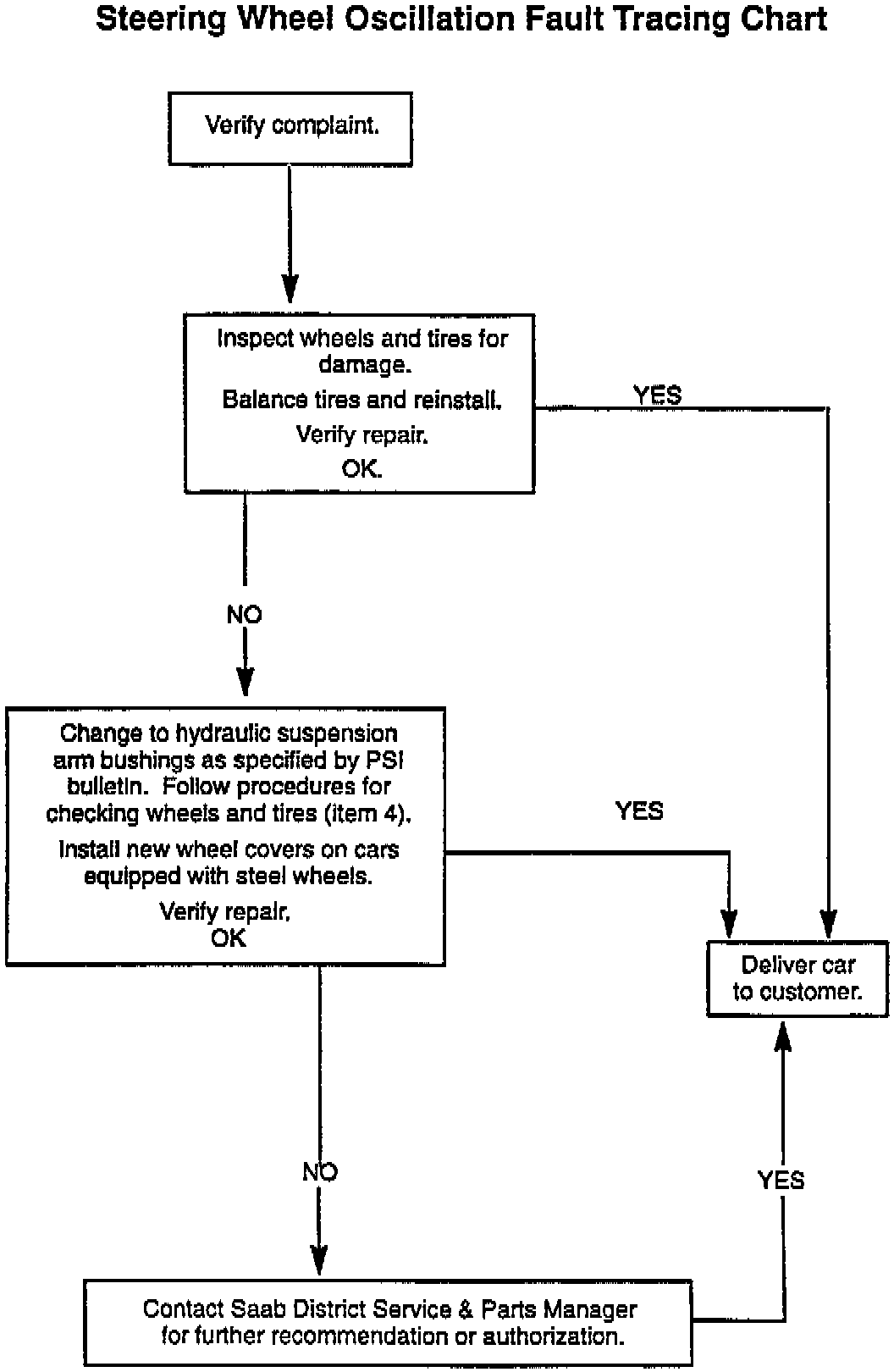

Steering Wheel Oscillation Fault Tracing Chart
