8:1 Body, Body Repairs

Page 810-2 Body shell

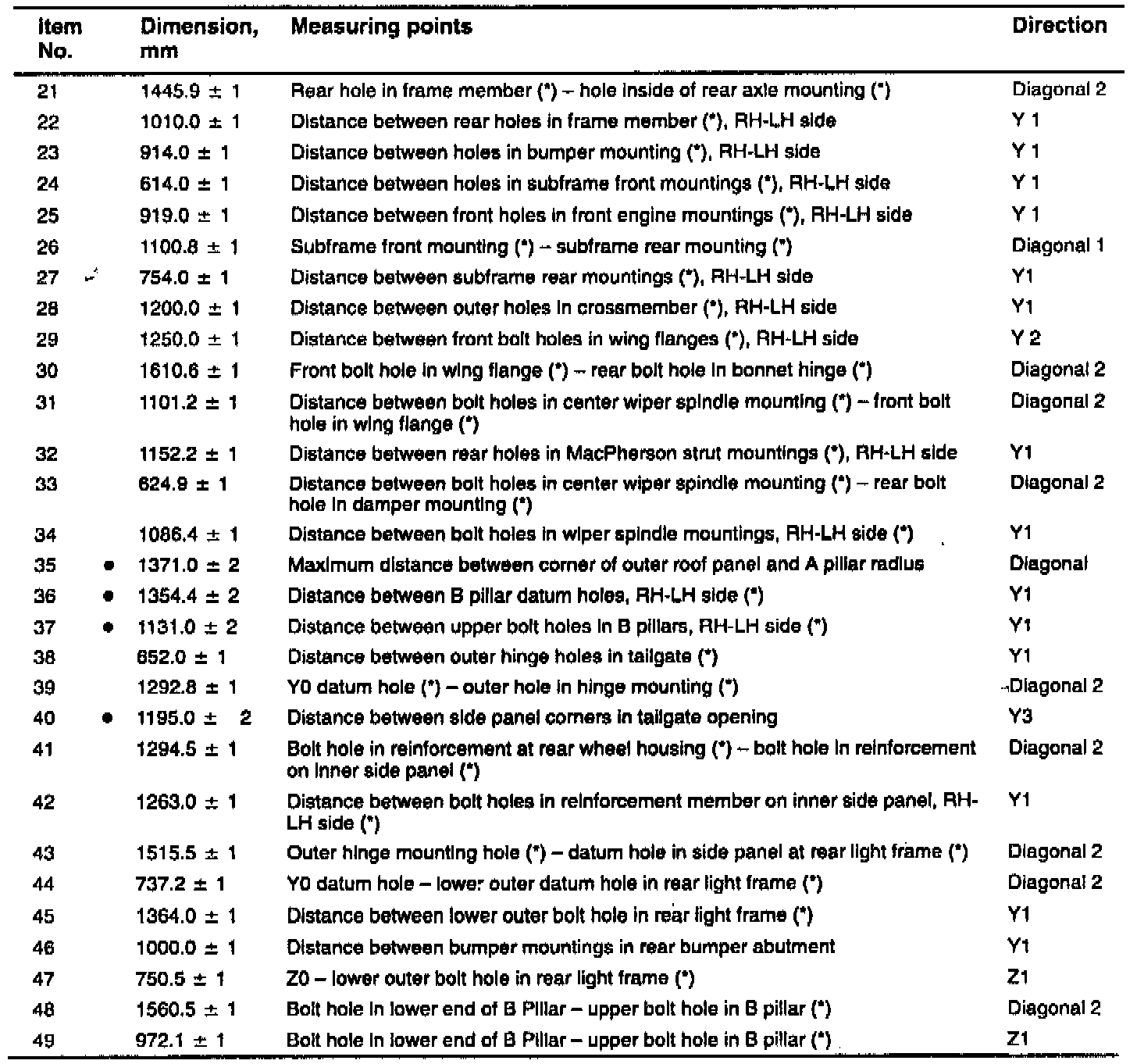

A number of body shell measurements are incorrect. These measurements are corrected in the table illustrated. The amended measurements are marked with ^.

Page 810-3 Body shell




A number of body shell measurements are incorrect. These measurements are corrected in the table illustrated. The amended measurements are marked with ^.

Also note that dimension 35 is measured in a new way.

Page 810-17 Body shell

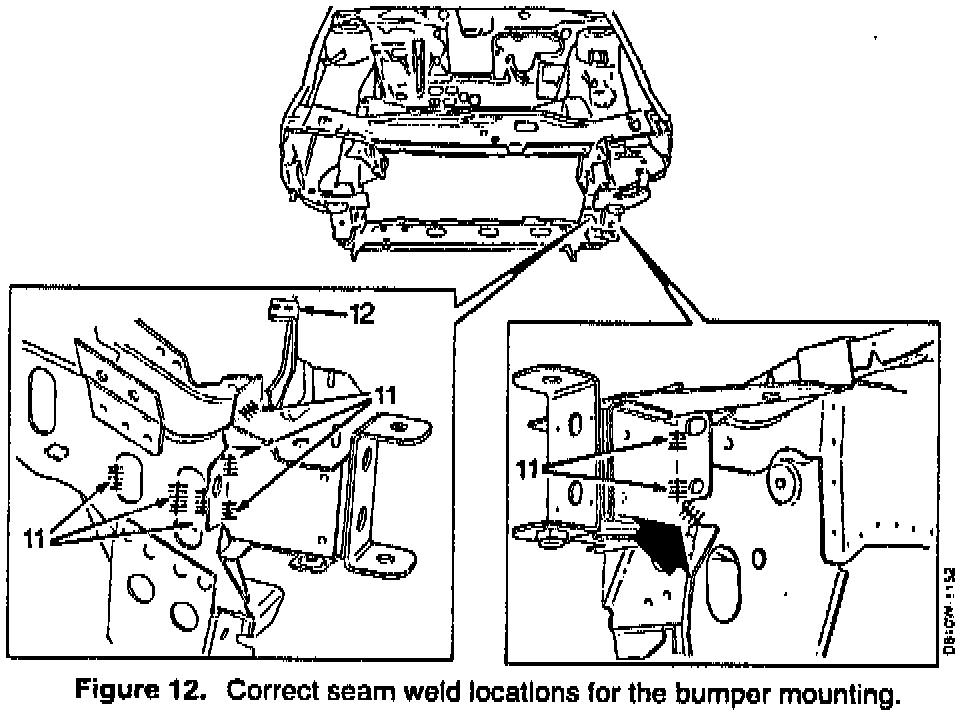

A seam weld is missing in the illustration in the manual. The correct locations of the seam welds are shown in Figure 12, The missing seam weld is highlighted by an arrow.

Add the following Important between steps 11 and 12.

Important
It is extremely important for the bumper mounting to be welded in place with the right number of seam and spot welds to ensure that it will undergo deformation in the designed manner in the event of a collision,

Page 843-12 Window glass

Second paragraph of step 3 has an incorrect part number for the primer. The correct part no. is 30 18 702. (This part is not yet in the system, but comes as part of the windshield glue kit.
