7 Suspension and Wheels
Page 027-1 Technical data - Drive shaftsMobile GS57C has part number 30 18 629
Molycote Rapid G VN2461C has part number 30 02 466.
Page 027-2 Technical data

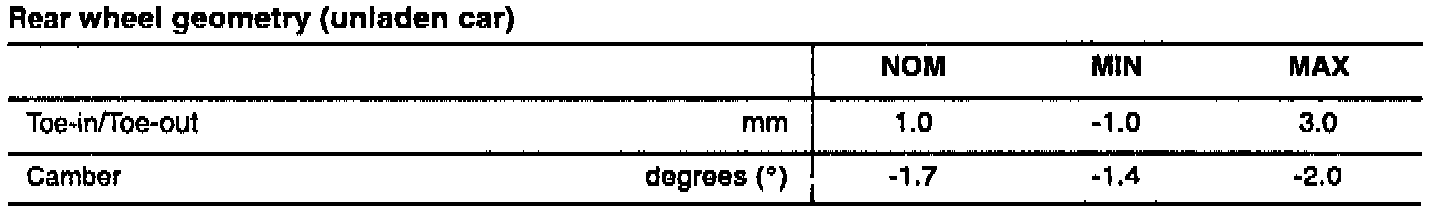

Rear wheel geometry (unladen car)
Page 027-3 Suspension arms
Rear mounting of support to subframe 100 Nm + 75° to 90° (73.8 ft.lb. + 75° to 90°) should 110 Nm (81 ft.lb.) + 75°.
Page 732-5 Rear suspension
Change the first paragraph as follows:
"Fit the hub assembly on both sides. Tighten the nuts." should read "Fit the hub assembly on both sides. Tighten using a torque wrench."
Change the Important note as follows:
Important
If the hub nuts have been undone, new ones must always be fitted. This is because the locking device on the nuts becomes less effective once the nuts have been slackened.
Tightening torque: 50 Nm + 30° + 15° (36.9 ft.lb.).
Delete the existing tightening torque from Step 3, page 732-4. Move the above items from page 732-5 to page 732-4 between Steps 3 and 4. "Remove the jack or similar" remains part of step 13.
Page 732-7 Rear suspension
To fit
Change step 1 as follows:

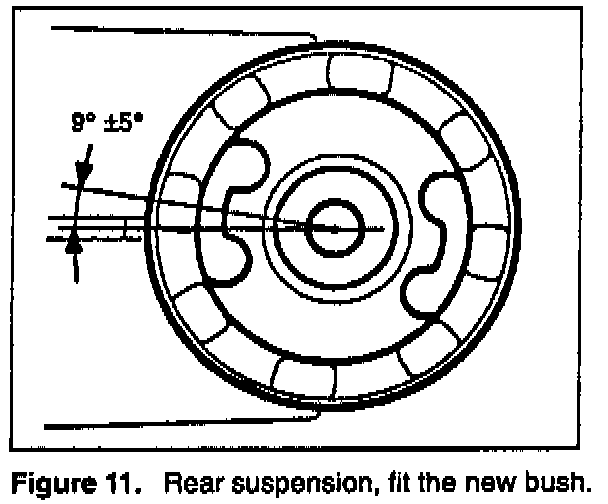

1 Fit the new bush, using special tool 89 96 688. The bush should be fitted so that the grooves are located 9° +/- 5° upwards in relation to the spring link's weld.
Refer to Figure 11.
