2:4 Exhaust System. Cooling System. Turbo System

Page 022-1 Technical data - Cooling system

Cooling fan, Switch-off (ignition off) B20G/B234i/B258i, 110 (217) should be 110 (230).

Page 200-7 Technical description

Heated oxygen sensor

"The oxygen sensor does not start to function until the working temperature exceeds 600°C (1120°F) and is therefore fitted with electrical preheating." This should read: "Since the operating range of the oxygen sensor is between 200 and 850°C (392 and 1562°F), it is equipped with electric preheating."

The illustration shows the oxygen sensor in the wrong position. It should be in front of the catalytic converter.

Page 200-8 Technical description

The illustration shows the wrong relay. The correct relay is mounted on a bracket under the RH seat.

Page 200-13 Technical description

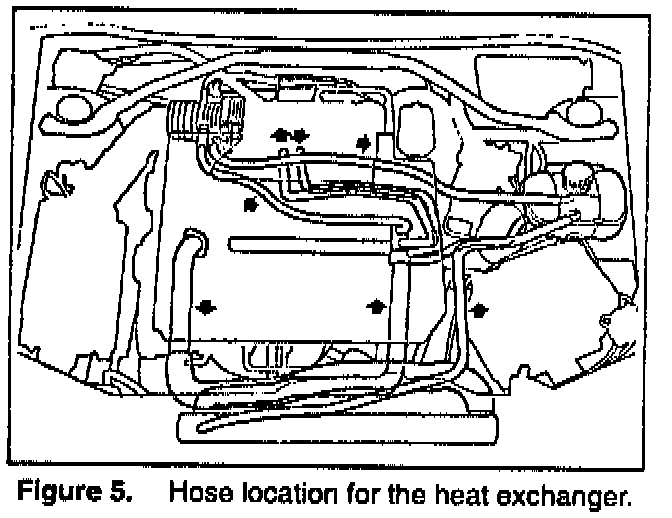

In the illustration, the hoses for the heat exchanger in the cabin have been transposed, Figure 5.

Page 254-6 Exhaust emission control system

1 Delete the last sentence "Check that the valve does not allow gases to pass in the reverse direction".

Page 254-9 Exhaust emission control system Replacement of rear secondary air injection pipe (6-cyl)

Change steps 2 and 5 as follows: Figure

2 Separate the pipe leading to the rear exhaust manifold at the hose and remove the screw from the engine block.

5 Lower the car and fit together the pipes running to the rear exhaust manifold.

Page 291-3 Turbo system

Adaptation of maximum boost pressure (cont.)

In the illustration, 3250 should be 4000.
