Mobile Telephones - Dash Connector

CATEGORY
Electrical

SECTION
3

ISSUE
01/96-0657

PAGE
91

CODE
300

Subject:
Connector for Mobile Telephones

Application:
1994- 900 Models,
1990- 9000 Models

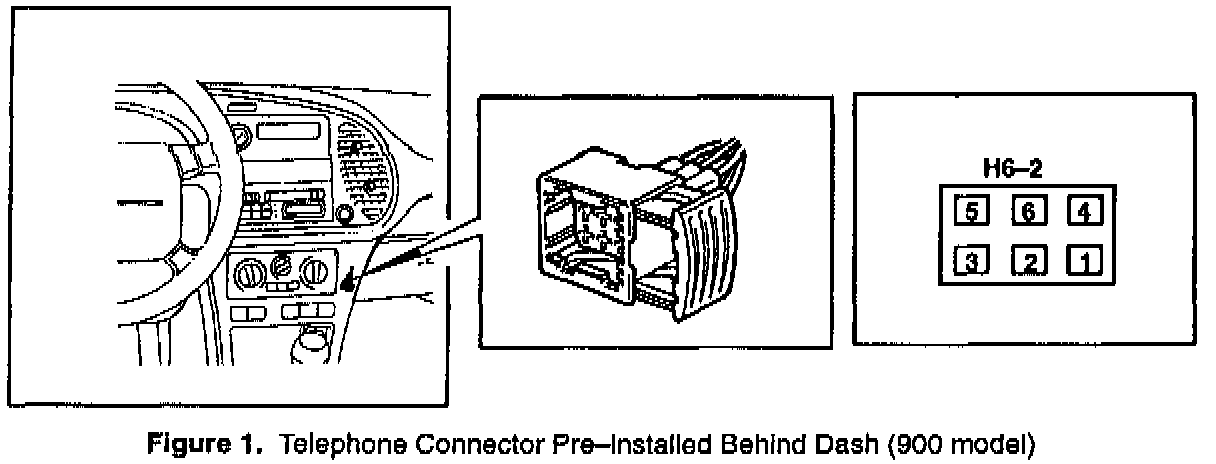

To ensure proper connection of mobile telephones in Saabs, the Factory has provided connectors located behind the center dash panel for easy installation. See Figure 1 for 900 information. The connector in 9000 models is similarly located. See Figure 5 for 9000 information.

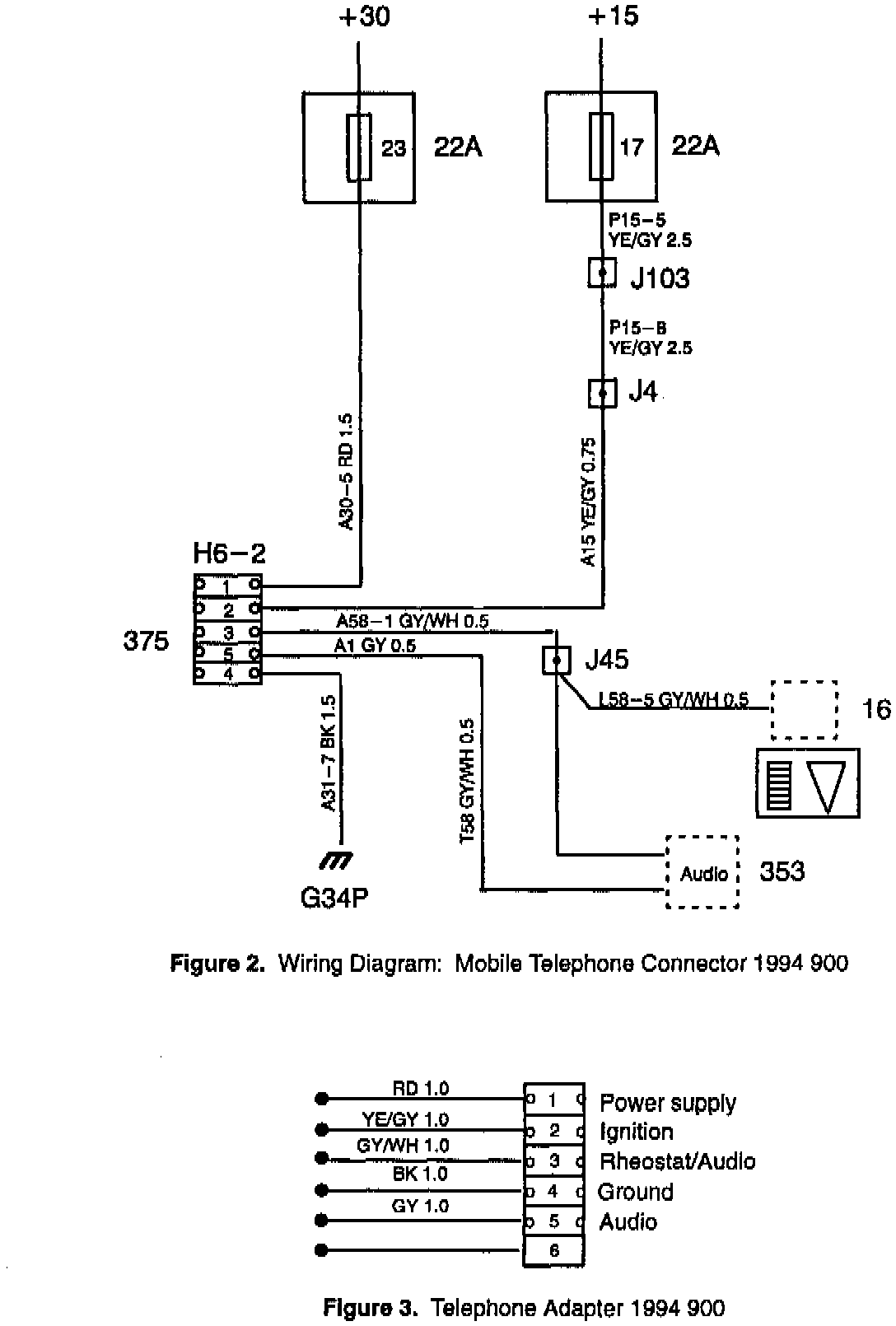

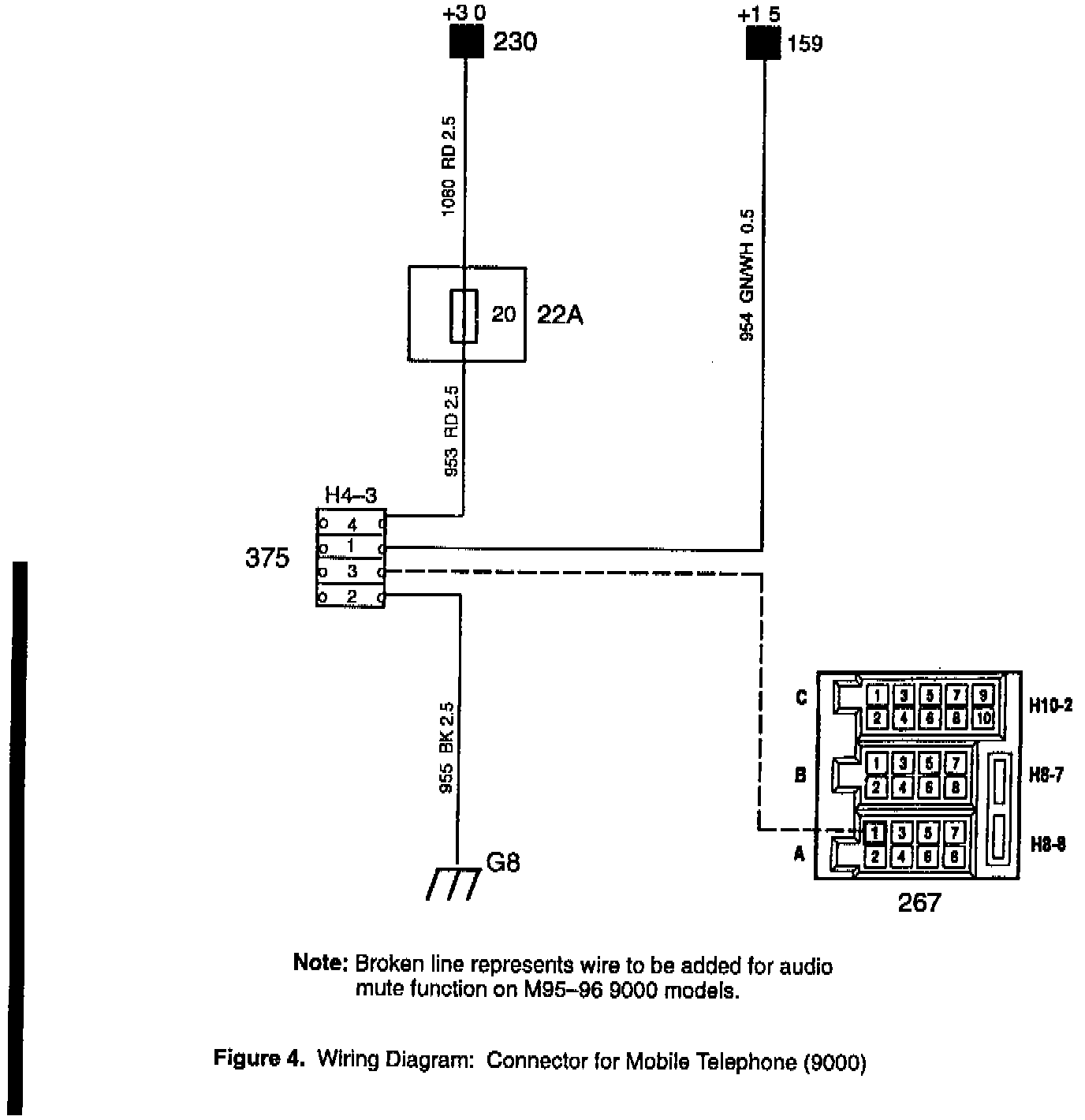

We are including a wiring diagram in this bulletin, showing correct wiring for this accessory on a 1994- 900 model to ensure that the item functions properly and does not cause any interference with the vehicle's electrical system. See Figure 4 for 9000 wiring diagram.

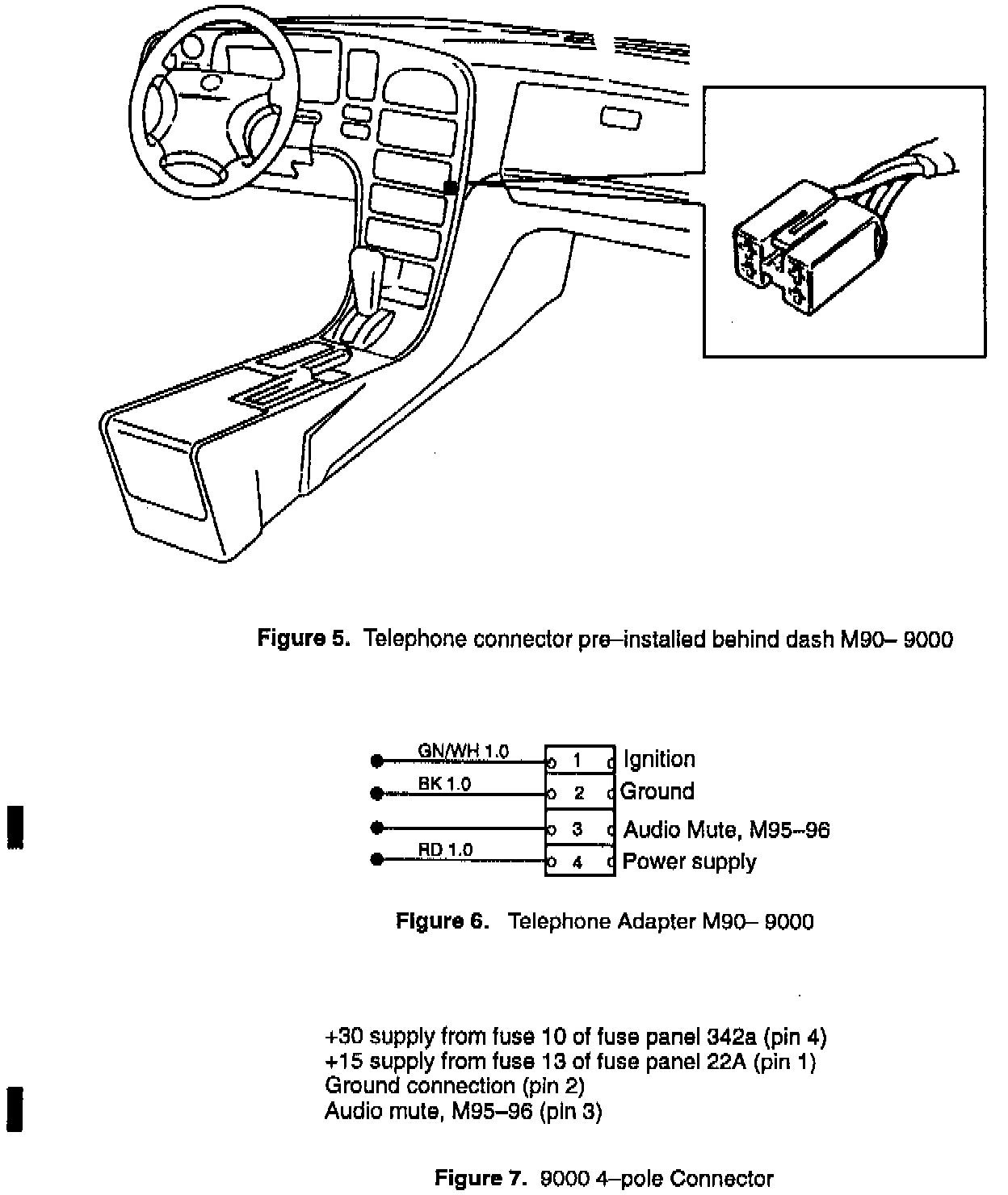

Since 1990, 9000 models have come with a 4-pole connector located behind the center dash panel to the right. See ** Figure 5 for more information regarding this connector. An additional wire may be added to M95-96 models to include the audio system mute function. Use a length of 16 gauge wire and two terminals, P/N 91 20 957. See Figure 4 for proper connections.**

Saab recommends when installing mobile telephones and/or communications radios that an external antenna be used to eliminate the generation of electromagnetic fields within the vehicle and to increase the range of the component.

For 900's, the special 6-pole connector provides.

^ +30 supply from fuse 23 (pin 1)

^ +15 supply from fuse 17 (pin 2)

^ adjustment of the light from rheostat 16 (pin 3)

^ reduction of radio volume in the case of incoming/outgoing calls (pin 5)

^ ground connection (pin 4)

A mating adapter harness is now available from spare parts stock for use on both 900 and 9000 models. Please recommend this item to all installers.

Adapter Kit, 900 1994- 02 46 666

Adapter Kit, 9000 1990- 02 48 658
