Interior - Uncomfortable Driving Positon
CATEGORYBrakes
SECTION
5
PAGE
16
ISSUE
01/97-0728
CODE
524
Subject:
Pedal Raising Kit
Application:
1994-97 900 Models
Supersedes PSI 08/94-0489

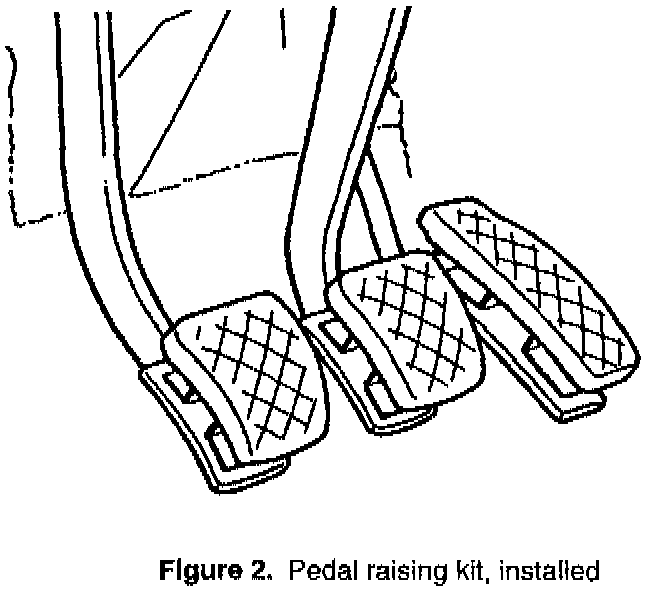

In cases where short drivers have difficulty obtaining a comfortable driving position, a pedal raising kit (Figure 1) has been developed. This kit is stocked as a spare part and should be fitted as described in the instructions below. When installed, this kit does not prevent taller driver's from obtaining a comfortable driving position.
Whenever a pedal raising kit is to be installed, all of the pedals should be raised equally in order to maintain the proper relationship of the pedals to one another.
Cars Affected:
1994-97 900 models with manually adjustable driver's seat
Parts:
Pedal raising kit, 89 94 006
manual transmission
Pedal raising kit, 89 94 014
automatic transmission
All kits contain pedal-raising components for all pedals, templates for drilling holes and M6 bolts and lock- nuts.
Action:
To install:
26. Remove the pedal rubbers from all pedals.

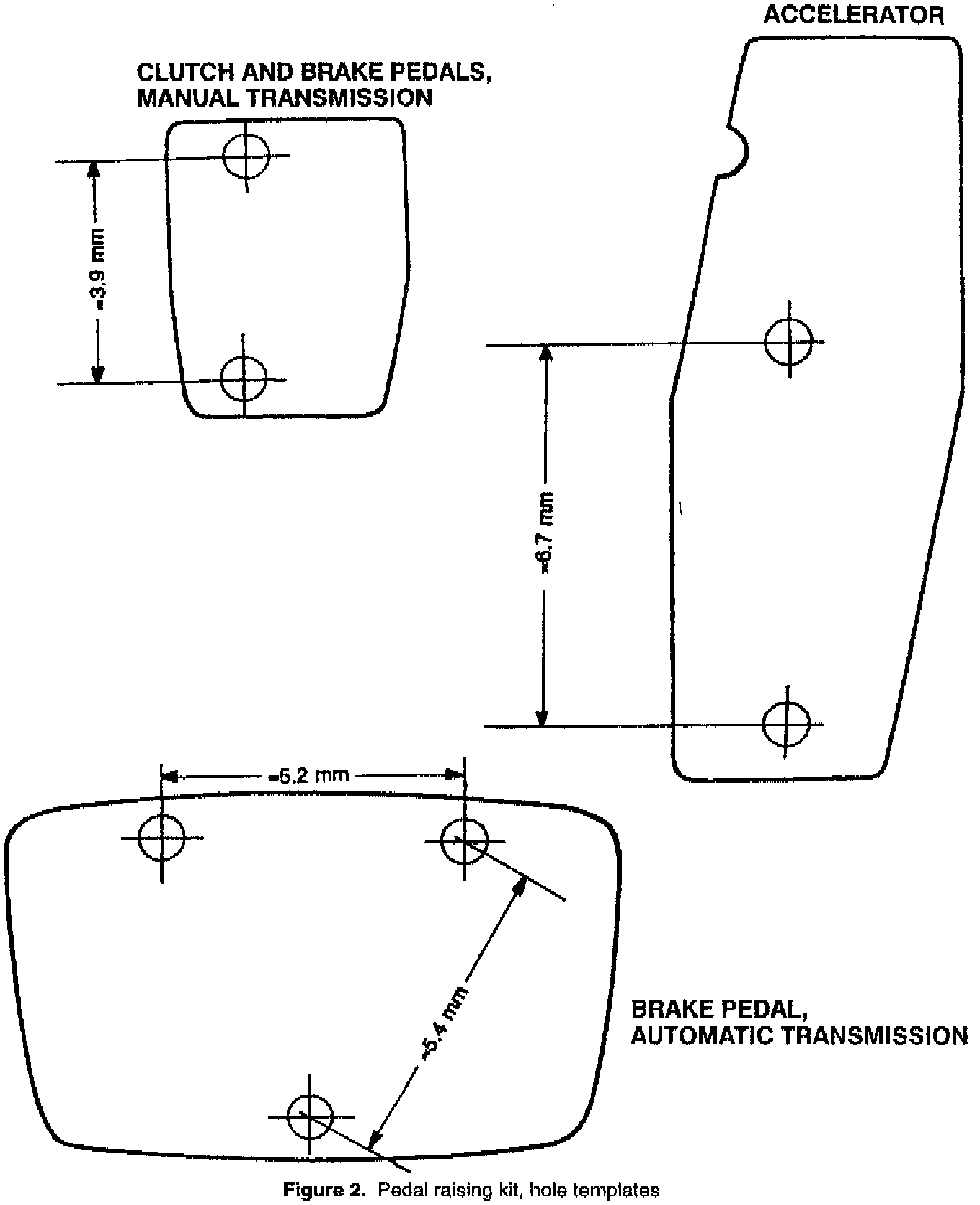

27. Use the hole-drilling templates supplied with the pedal raising kit (also supplied in this service bulletin, Figure 2) and fasten them to the pedals with a piece of adhesive tape. Mark the positions of the holes and drill the holes at right angles to the pedal plate using a 7 mm (9/32") diameter bit.
28. Install all pedal rubbers on the new pedal plates.
29. Secure the pedal plate in place by means of the M6 bolts and locknuts. Torque: 7 ft.lbs. (9.5Nm)
Warranty Information:
Based on a customer complaint, a self-authorized goodwill claim may be submitted. The following information must be provided: Failure code 52412-07-5-17-05, Operation number 52412 and Time allowance of 0.2 hours.
