Expander Rivet Extraction Tool

CATEGORY
Tools

SECTION
1

ISSUE
10/96-0712

PAGE
58

CODE
108

Subject:
New Available Tool: Expander Rivet Extraction Tool

Application:
All 900 and 9000 Models

A new tool has been developed to assist in the removal of expander rivets. It can also be used to remove other types of plastic clips that have large heads. See below for instructions on using this tool.

Parts:

Expander rivet extraction tool 84 71 179

Price: $12.85





This tool is available for ordering directly from Kent-Moore at 1-800-345-2233.

Action:

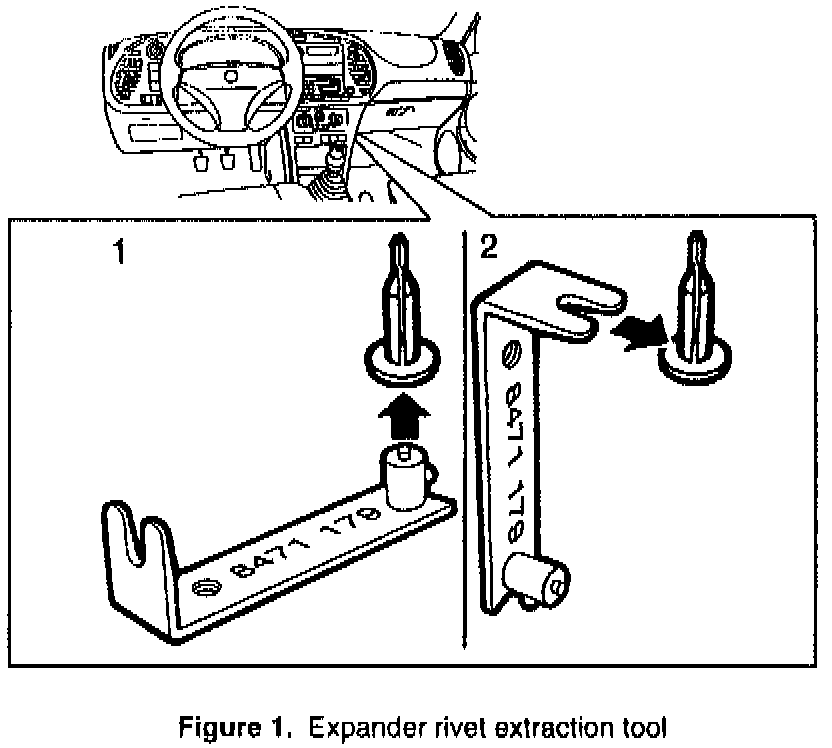

Use the tool as follows:

1. Press in the expander rivet's stud by using a suitable pin on the tool, depending on the location of the rivet.

2. Insert the forked part of the tool under the head of the expander rivet and withdraw same.
