Brake Rotor - Measuring Fixture

CATEGORY
Tools

SECTION
1

PAGE
16

ISSUE
10/91-0146

CODE
101

Subject:
New Special Tool: Brake Rotor Measuring Fixture

Application:
1988- 900 Models, 1986- 9000 Models

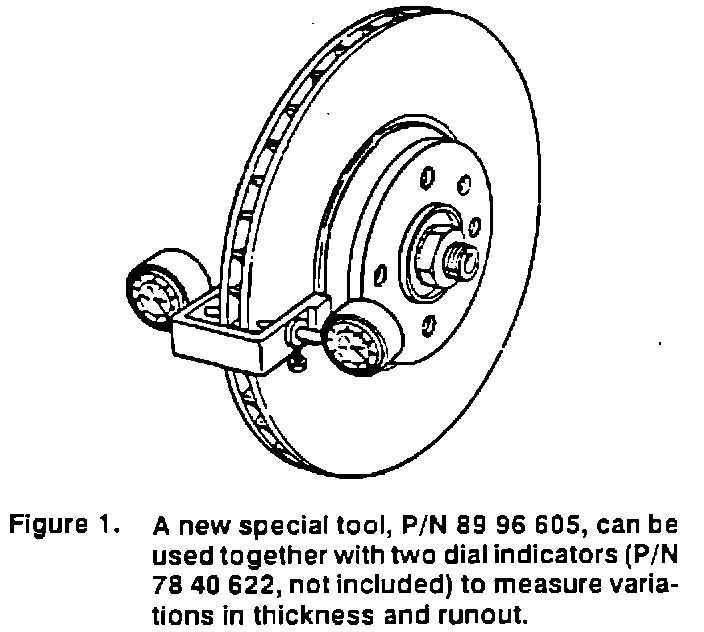

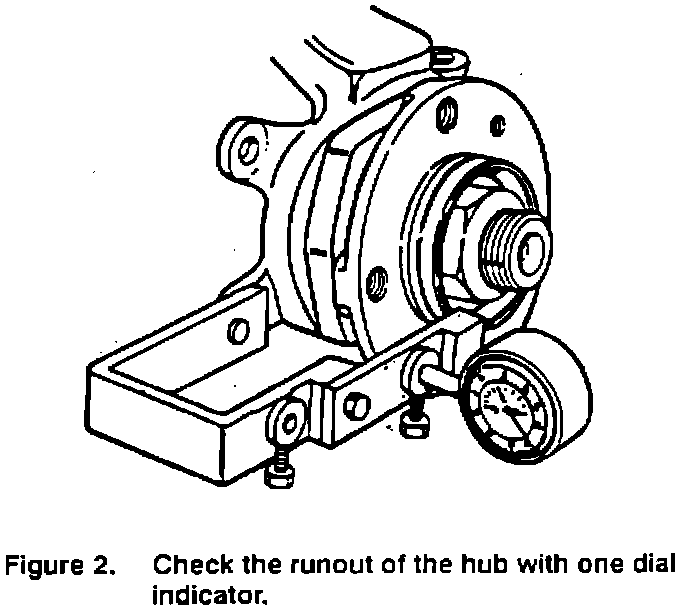

A new special tool has been developed to aid in the measurement of front and rear brake rotors. This new special tool enables the technician to accurately measure a rotor for lateral run-out and thickness variation prior to resurfacing or replacement of the rotor (Figure 1). It can also be used for measuring the run-out of the hubs (Figure 2). Complete information for proper use of the tool can be found in the 900 Service Manual, Section 5-.1 Brakes, M1988-91-. Note that the instructions for using this tool that are found in the 900 Service Manual also apply to 9000 models.

This tool has NOT been designated as a required special tool. It is available for ordering from your servicing Saab Parts Distribution Center.

Measuring Jig P/N 89 96 605

Please store this tool in the Saab tool crate marked "Brakes."
