Antilock Brakes - Manual Resistance Reading Corrections

CATEGORY:
Specifications

SECTION:
0

ISSUE:
03/96-0675

PAGE:
21

CODE:
500

Subject:
Correction to 900 Service Manual:
Section 5:2 Anti lock Brakes (ABS 2E)
M1994-95 (P/N 03 63 465)

Application:
1994-95 900

Please make the following corrections to the above referenced service manual:

Page 44

Correct point 4 to read as follows:

- Take a resistance reading across pins 20 and 21 of the control module's connector. The resistance should be O.8-1.7 kohms.

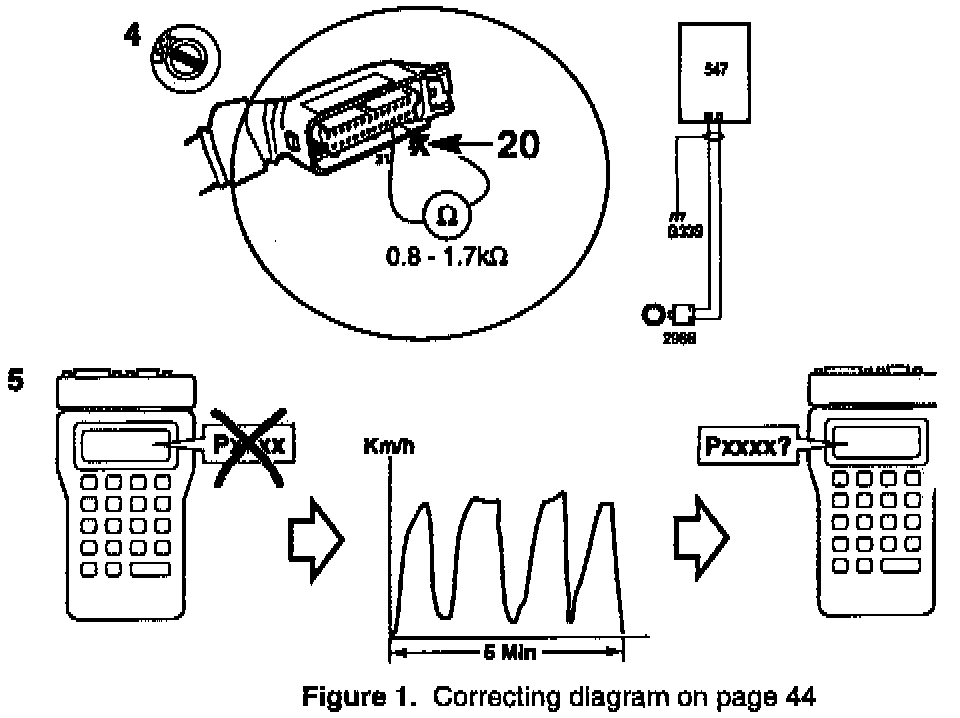

Correct the drawing on the same page as indicated:

Page 50:

Correct point 4 to read as follows:

- Take a resistance reading across pins 6 and 18 of the control module's connector. The resistance should be 0.8-1.7 kohms.
