Rubber Bush (Bushing)

REMOVAL
1. Remove the damper.
2. Place the damper, an 18 mm socket and special tool No. 89 96 720, or equivalent, in a press.

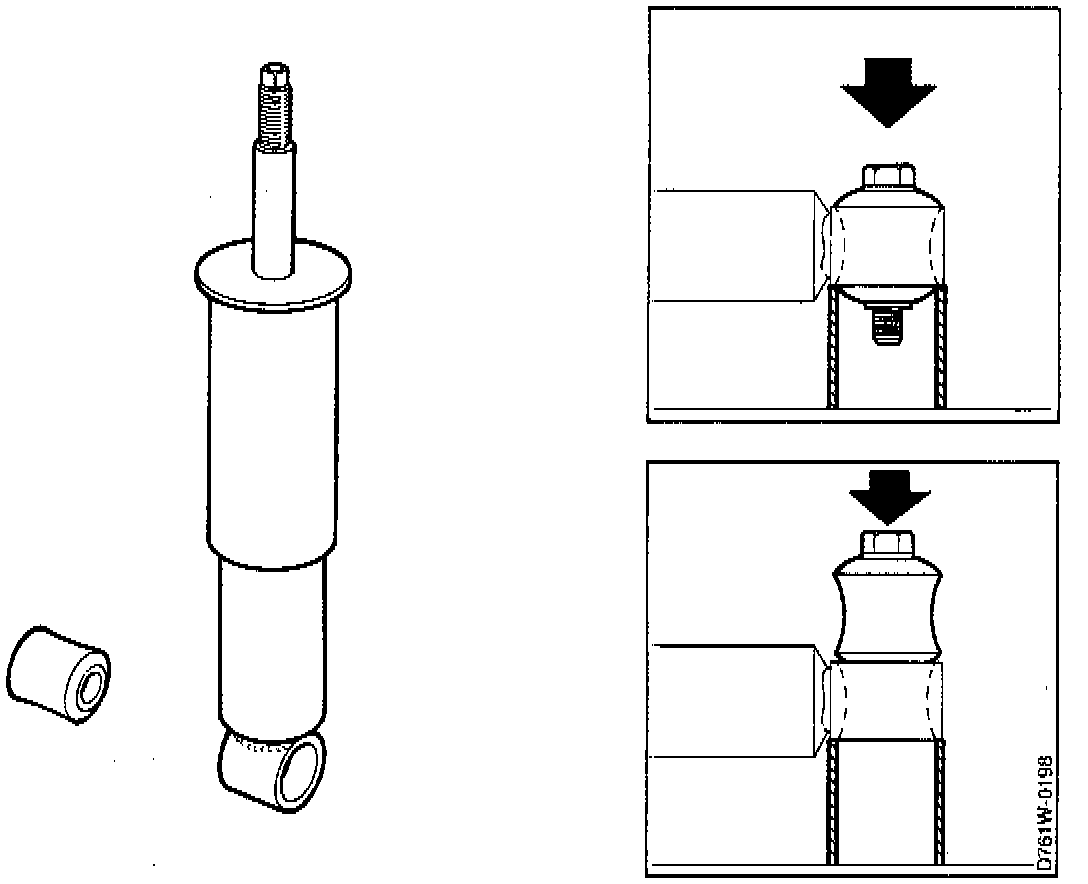

3. Press out the bush (see picture).

INSTALLATION
1. Lubricate the bush and compression tool, if used, with petroleum jelly (Vaseline) or the like.
2. Press in the compressed bush, using special tool No. 89 96 720, or equivalent, as a dolly (see picture).
3. Install the damper.
