Inner

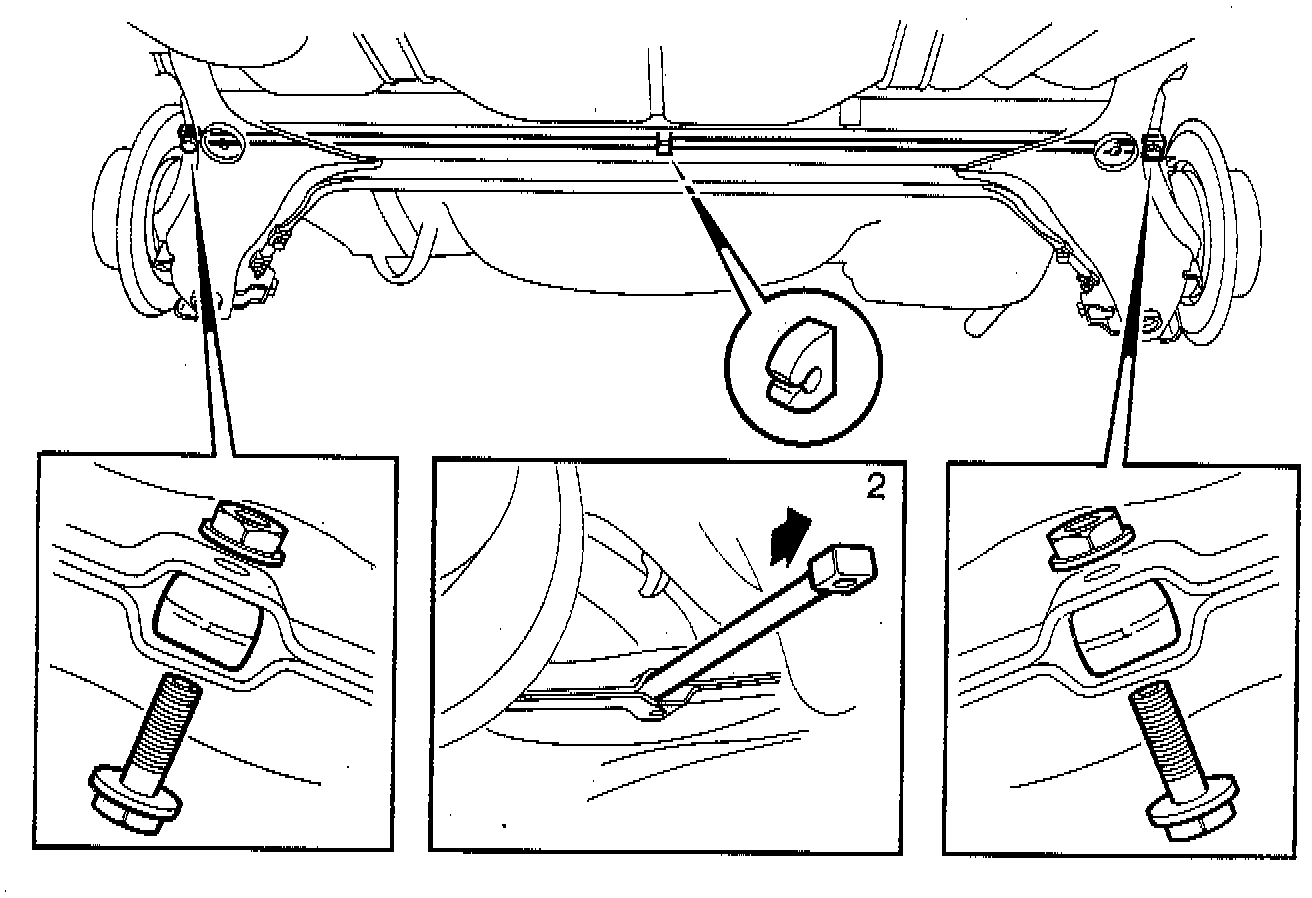

NOTE: The numbers found below in parenthesis ( ), refer to that number (and that part/component) found in the illustration.

REMOVAL
1. Raise the car and remove one of the rear wheels.
2. Remove the bolts at the ends) securing the inner anti-roll bar (1).
3. Withdraw the anti-roll bar from the rear axle (2).

INSTALLATION
1. Slide the new anti-roll bar into the rear axle (coat the anti-roll bar thinly with grease to facilitate assembly).
2. Install all retaining bolts and tighten them.
Tightening torque: 60 Nm (44.3 ft. lbs.) + 60 - 75°
3. Check the position of the rubber block (3).
4. Install the wheel on the car.
