Radius Arm: Description and Operation

Suspension Arms

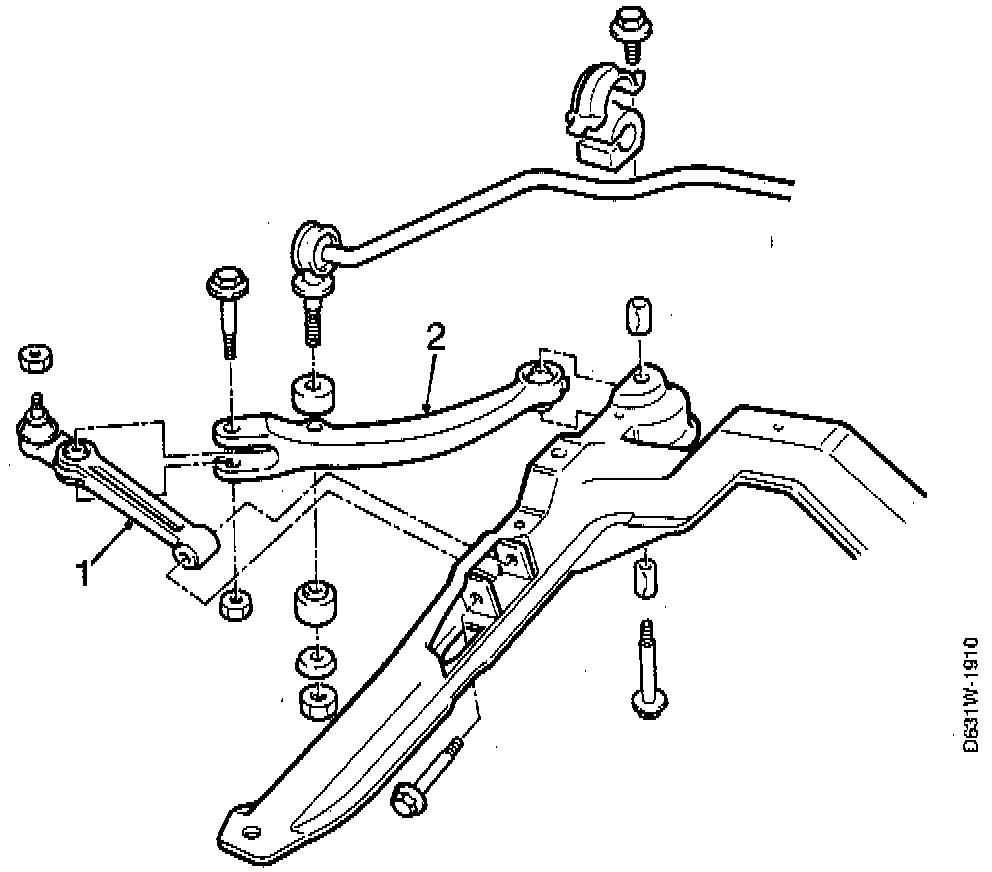

One end of each suspension arm (No. 1, as shown) is attached to the subframe via a rubber bush and the other end to the steering swivel member via a ball joint.
A support arm (No. 2, as shown), secured to the rear of the subframe via a rubber bush, braces the suspension arm longitudinally.
