Gear Rubber Gaiter

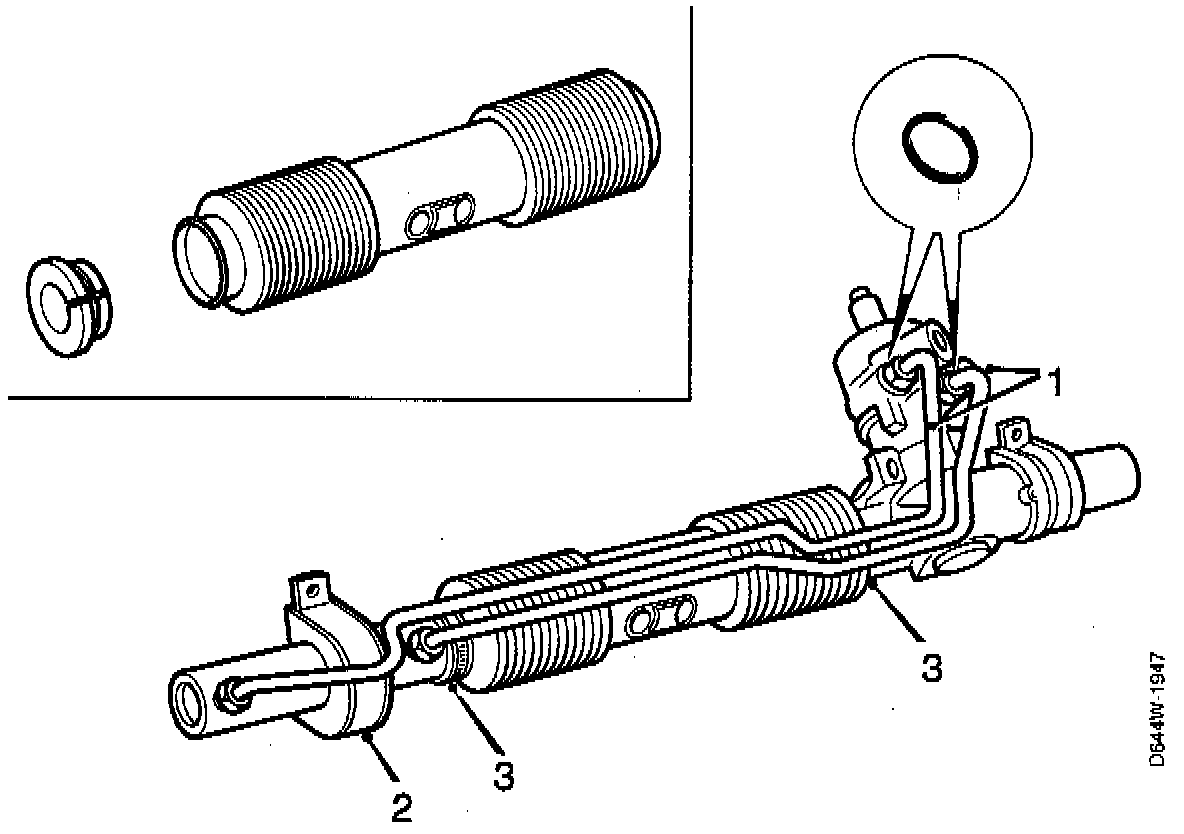

NOTE: The numbers found below in parenthesis ( ), refer to that number (and that part/component) found in the illustration.

REMOVAL
1. Remove the steering gear.
2. Remove the equalization pipes (1).
3. Remove the fixing clamps with rubber bushes (2) .
4. Remove the clips (3).
5. Pull the rubber gaiter off the steering gear.

INSTALLATION
1. Pull the new rubber gaiter onto the steering gear and install the clips (3)
2. Install the rubber bushes and fixing clamps (2).
3. Install the equalization pipes (1).
4. Install the steering gear
