Grounding Points G3

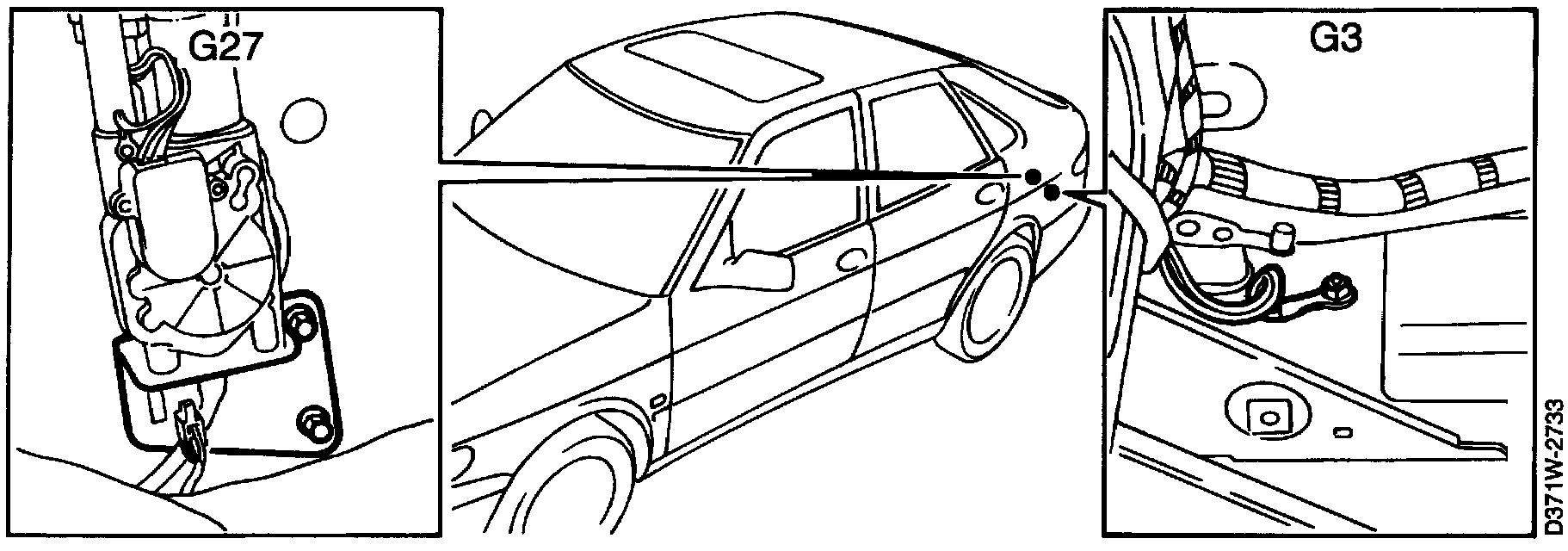

Grounding Points G3, G27:

Connected to grounding point G3 in the luggage compartment by the left-hand rear light cluster are the following components:

14 Left-hand and right-hand reversing lights
30 Left-hand and right-hand brake lights
27 Left-hand and right-hand direction indicators
188 Motor for central locking, tailgate
565 TSAS (Cabriolet)

The following components are additional on cars not
having grounding point G5:

23 Fuel pump
15 Number plate lighting
33 Rear fog light
32 Reversing lights
554 Microswitch for anti-theft alarm (tailgate)
115 Electrically heated rear window
109 High-level brake light
62A Rear window wiper motor
