Suspension Strut

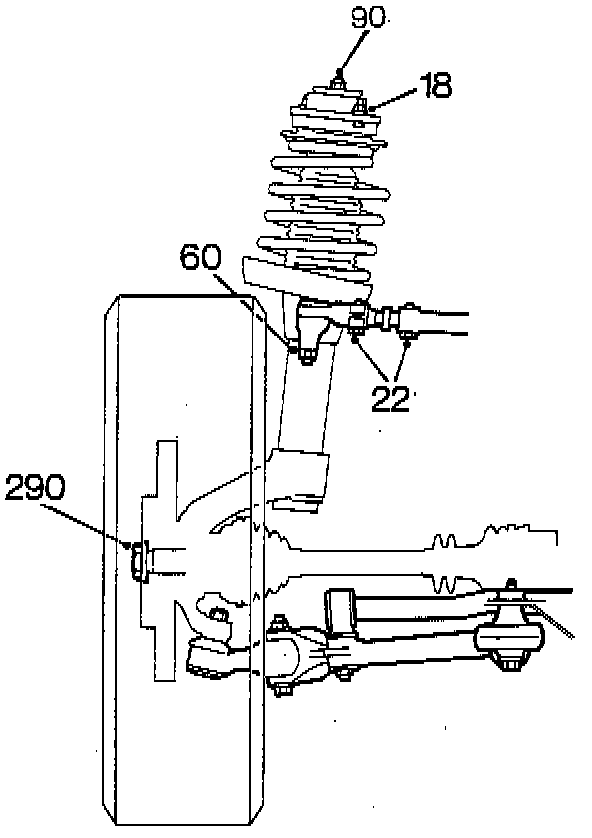

TIGHTENING SPECIFICATIONS
Nut, Upper Strut Mounting: 90 Nm (66.4 ft. lbs.)
Upper Strut Retaining Bolts: 18 Nm (13.3 ft. lbs.)
Metalloc Nut: 290 Nm (214 ft. lbs.)
Toe-in Adjustment Locking Bolts: 22 Nm (16.2 ft. lbs.)
Track-rod Ends: 60 Nm (44.3 ft. lbs.)
Piston Lock Nut: 90 Nm (66.4 ft. lbs.)
Strut Damper Threaded Ring: 215 Nm (158.7 ft. lbs.)
Steering Gear Retaining Bolts: 24 Nm (17.7 ft. lbs.)
