Valve Spring

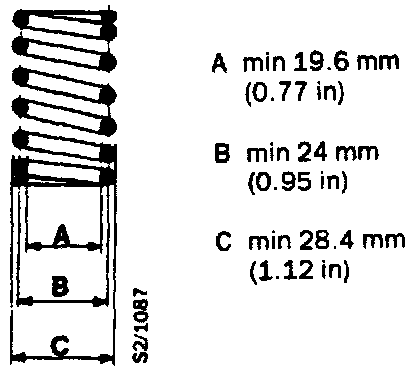

Valve Springs:
Length when fitted 37.0 mm (1.46 in)
Free length 45 ± 1.5 mm (1.77 ± 0.05 in)
Length [1] 595-645 N (131-141 lb) 28.4 mm (1.12 in)
[1] When subjected to compressive force of
Length when fitted 37.0 mm (1.46 in)
Free length 45 ± 1.5 mm (1.77 ± 0.05 in)
Length [1] 595-645 N (131-141 lb) 28.4 mm (1.12 in)
[1] When subjected to compressive force of
