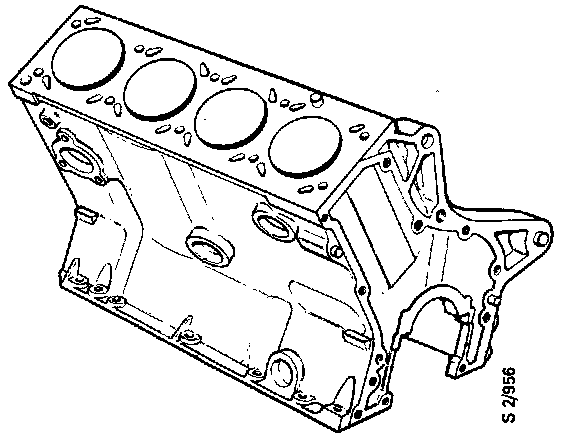

Cylinder Block

Engine Block:

Cylinder Block Bores:
Standard (A) - 90.000 - 90.010 mm (3.5433 - 3.5437 in)
Standard (B) - 90.010 - 90.020 mm (3.5437 - 3.5441 in)
First oversize - 90.500 - 90.512 mm (3.5630 - 3.5635 in)
Second oversize - 91.000 - 91.012 mm (3.5827 - 3.5831 in)
