Home >> Saab >> 1994 >> 900 Turbo Convertible L4-1985cc 2.0L DOHC Turbo EFI >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Idle Speed/Throttle Actuator - Electronic

Idle Speed/Throttle Actuator - Electronic

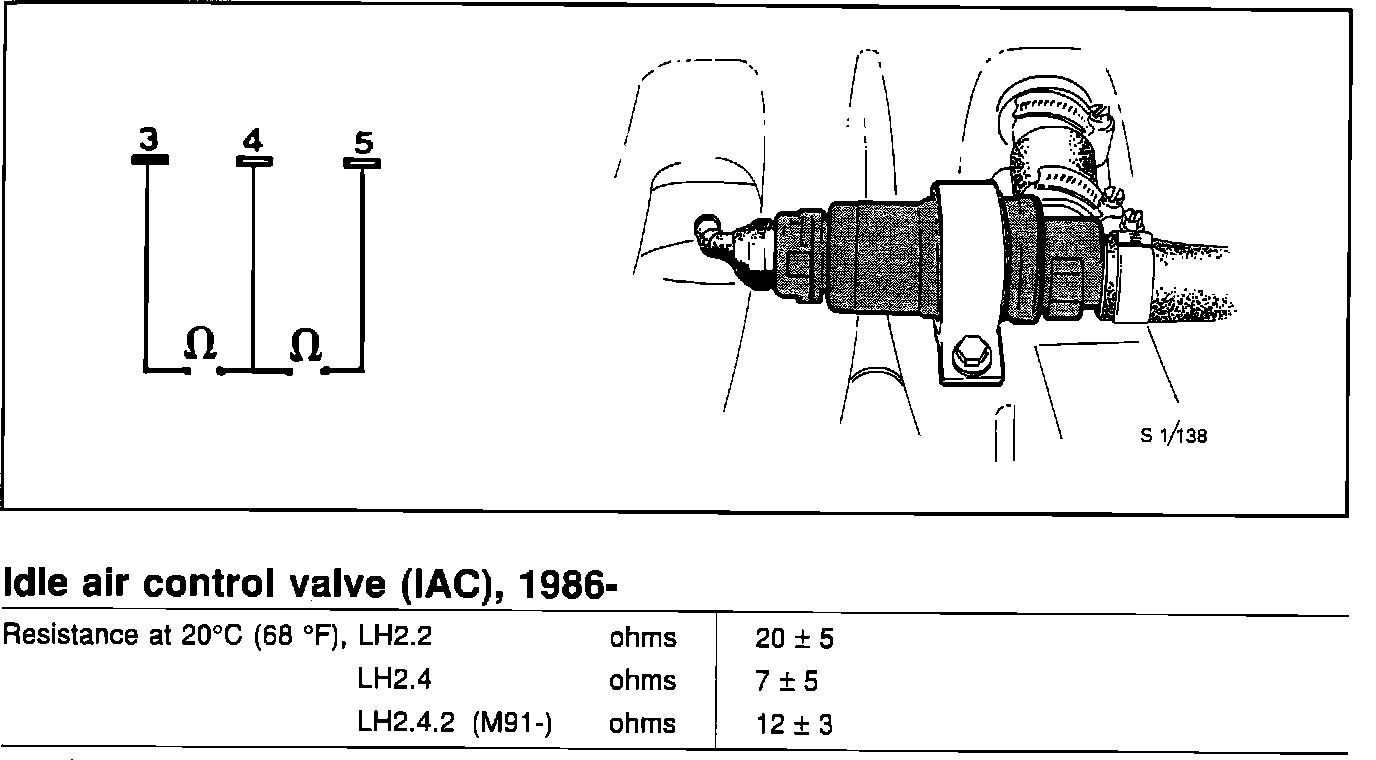

Idle Air Control Valve:
