Headlamp Switch: Service and Repair

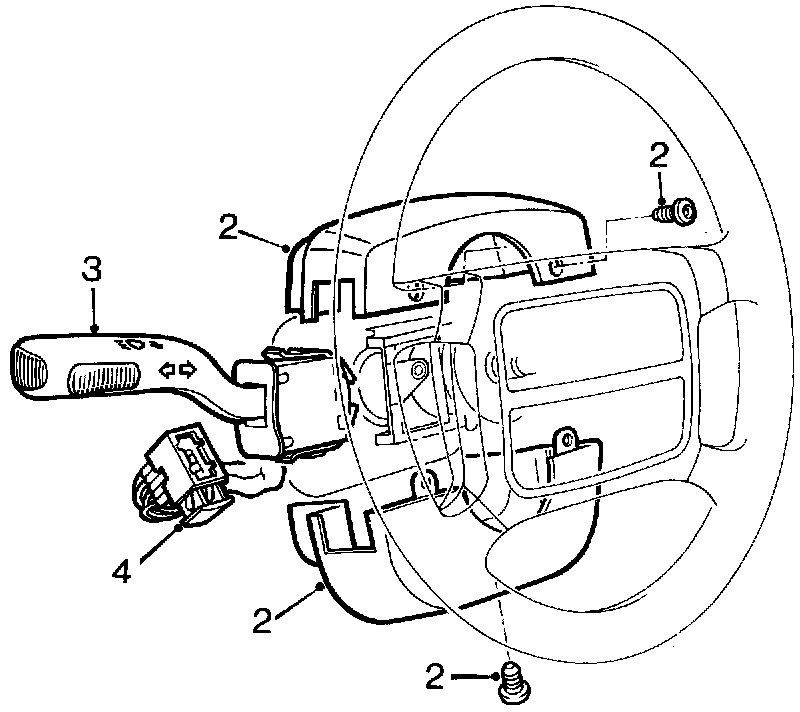

1 Pull up the steering wheel to its fullest extent.
2 Remove the steering column bearing bracket covers (3 screws).
3 Withdraw the stalk (pressed into grooves).
4 Unplug the 10-pin connector.
Install in reverse order.
