Dome Lamp Switch: Service and Repair

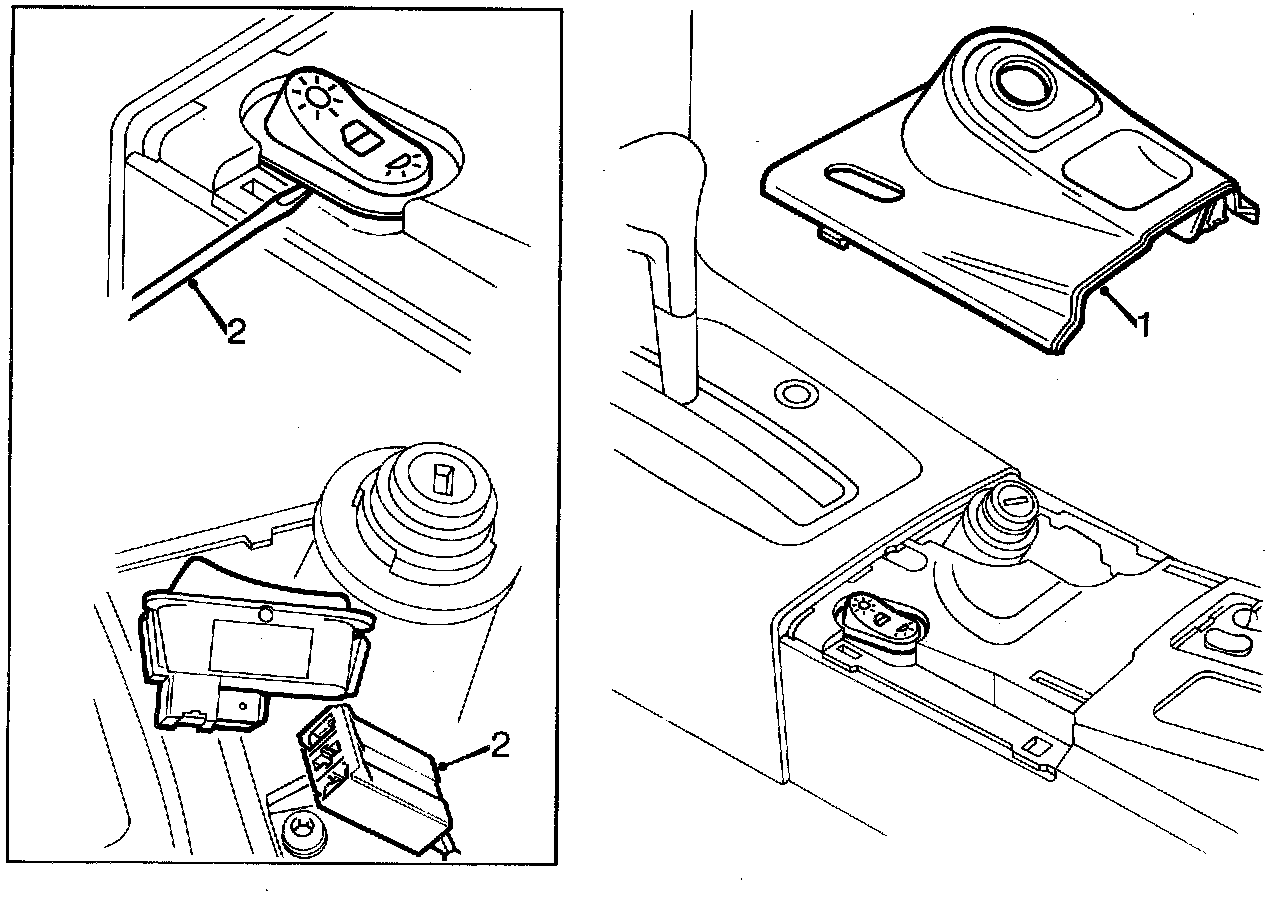

The interior lighting switch is located on the center console between the two front seats.
1
Remove the protective cover over the switch
2
Withdraw the switch and unplug the connector.
Install in reverse order.
