Brake Switch (Cruise Control): Service and Repair

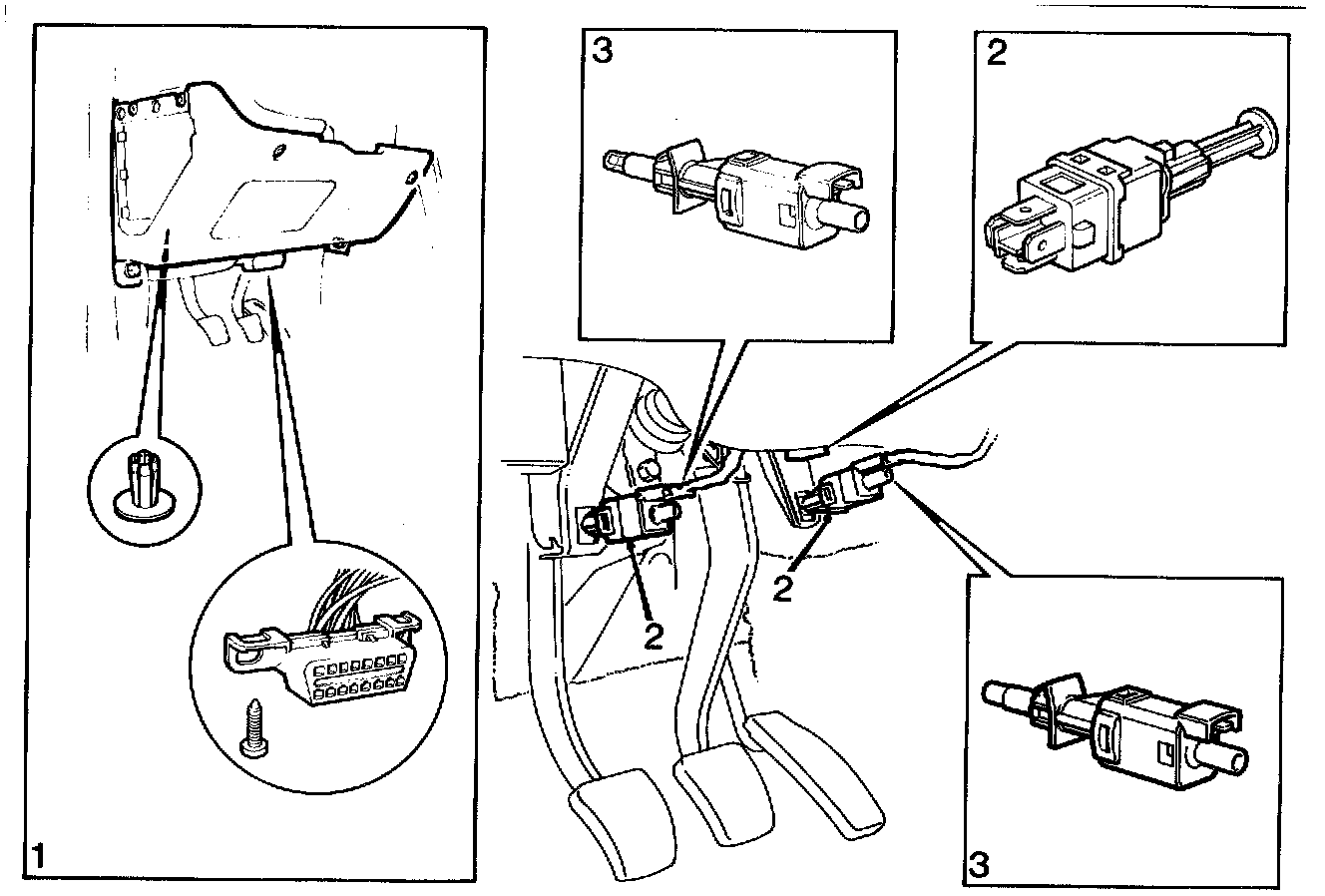

1
Remove the lower part of the dashboard.
2
Turn the
brake light switch
in either direction and lift it out.
3
Unplug the connector.
4
Install a new switch.
