Front

Right Front Replacement

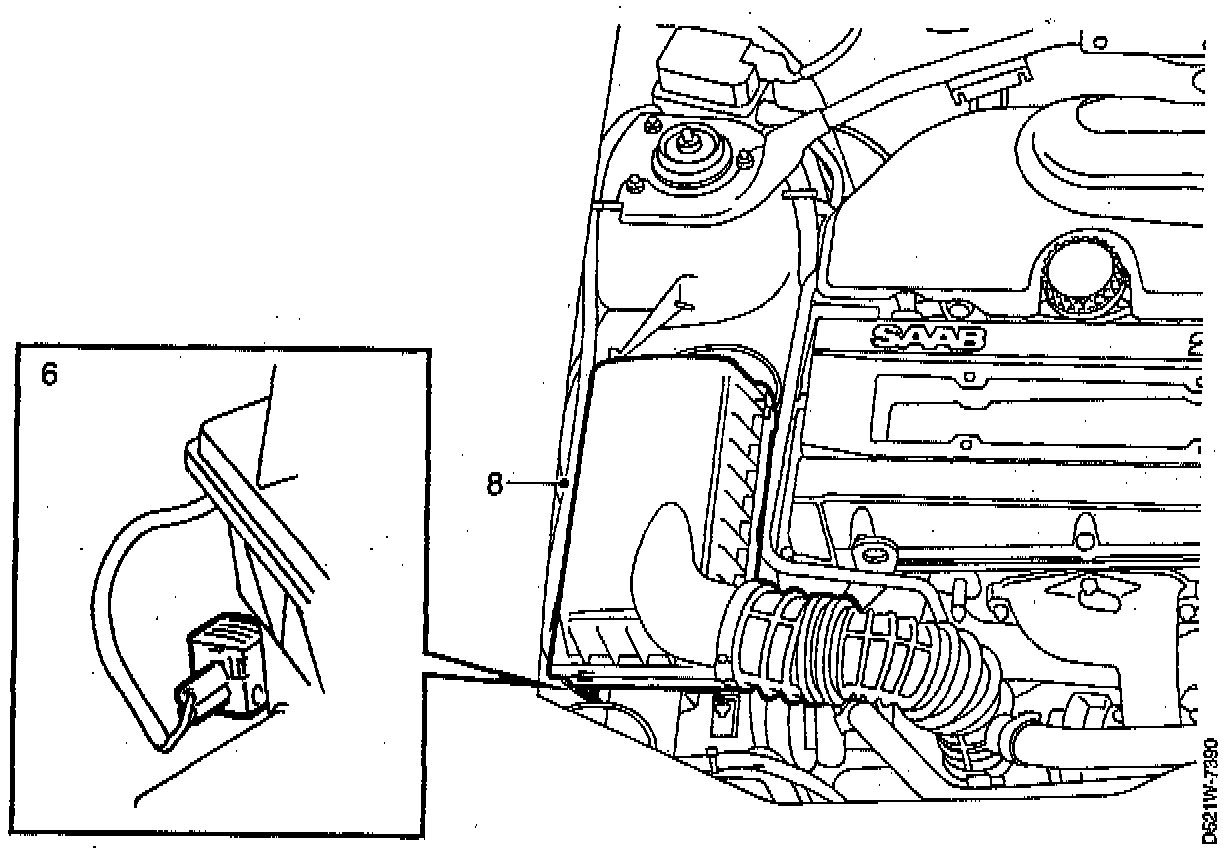

Removal
1. Unfasten the air filter housing over part and the mass air flow sensor and move it away.
2. Unfasten the connector cable tie from the branch bolt.
3. Part the connector and cut off the cable tie.
4. Also cut off the cable tie at the air filter housing mounting.

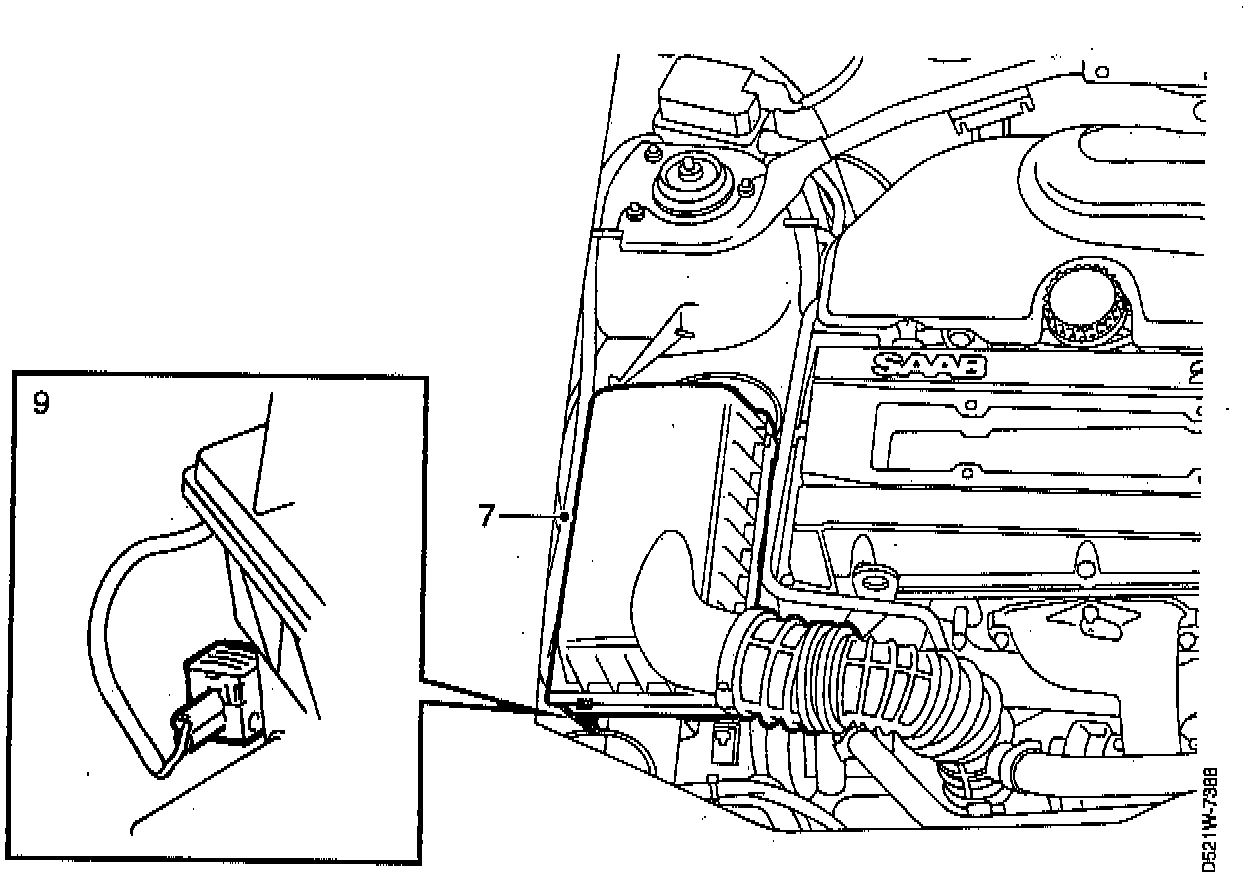

Installation
1. Connect the connector.
2. Install a new cable tie to the air filter housing mounting.
3. Install the over part of air filter housing and install the air-mass meter.

Left Front Replacement

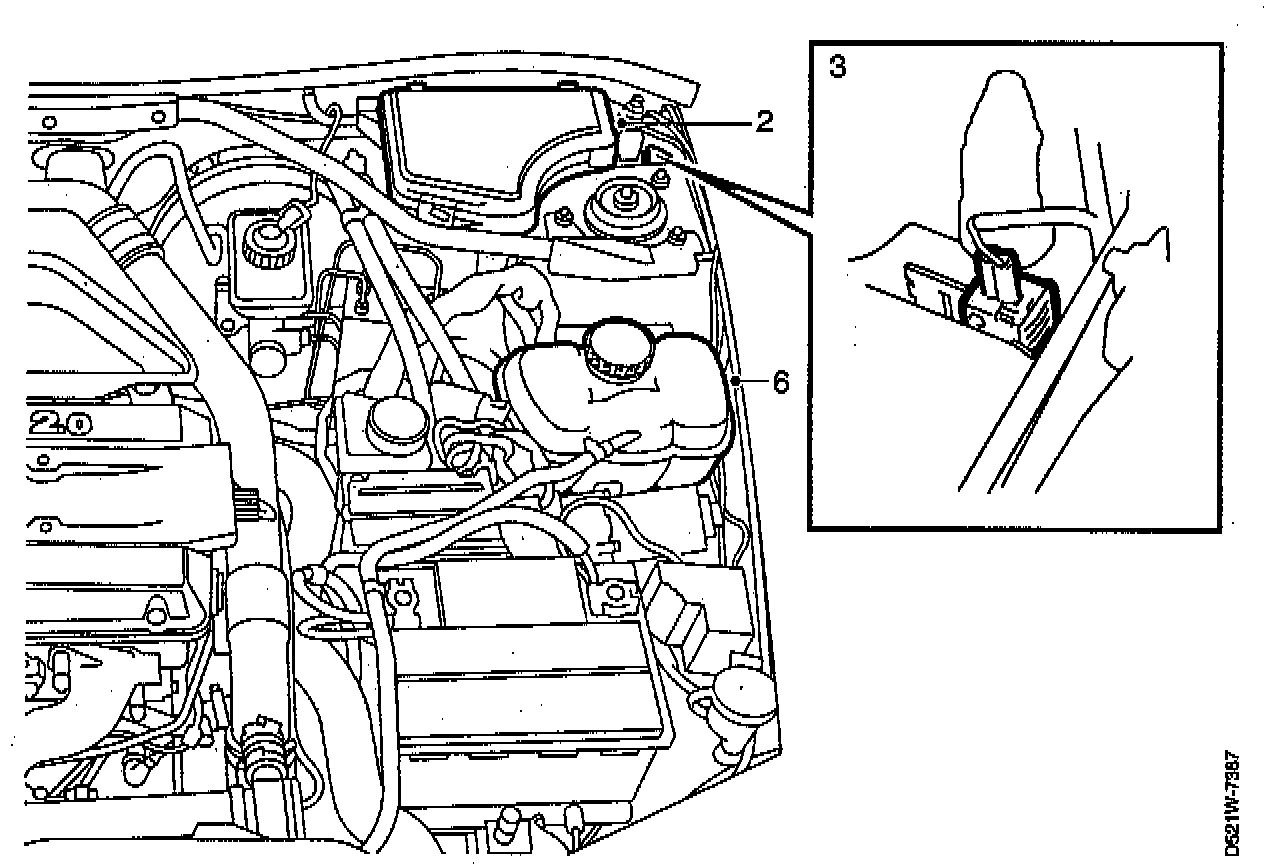

Removal
1. Open the bonnet
2. Unfasten the electrical distribution box and move it away.
3. Part the electrical connection, push in the locking catch and unfasten it from the bracket.
4. Cut off the cable tie on the McPherson strut.
5. Unfasten the level sensor connectors.
6. Unfasten the coolant expansion tank and move it out of the way.

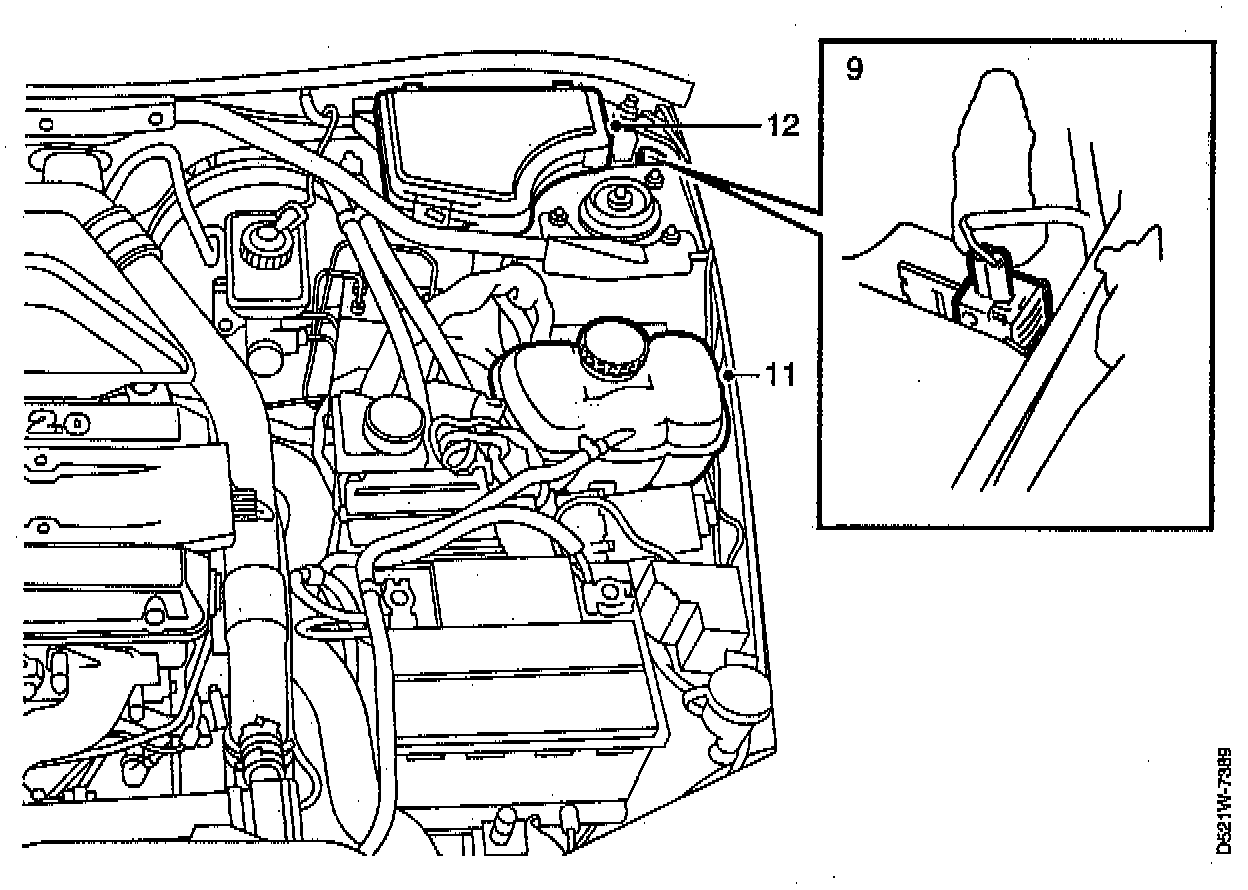

Installation
1. Connect the connector.
2. Install a new cable tie to the McPherson strut shaft.
3. Install the level sensor electrical connection and coolant expansion tank.
4. Replace the electrical distribution box.
5. Close the bonnet and erase the diagnostic trouble codes.
