Power Mirror Switch: Service and Repair
1

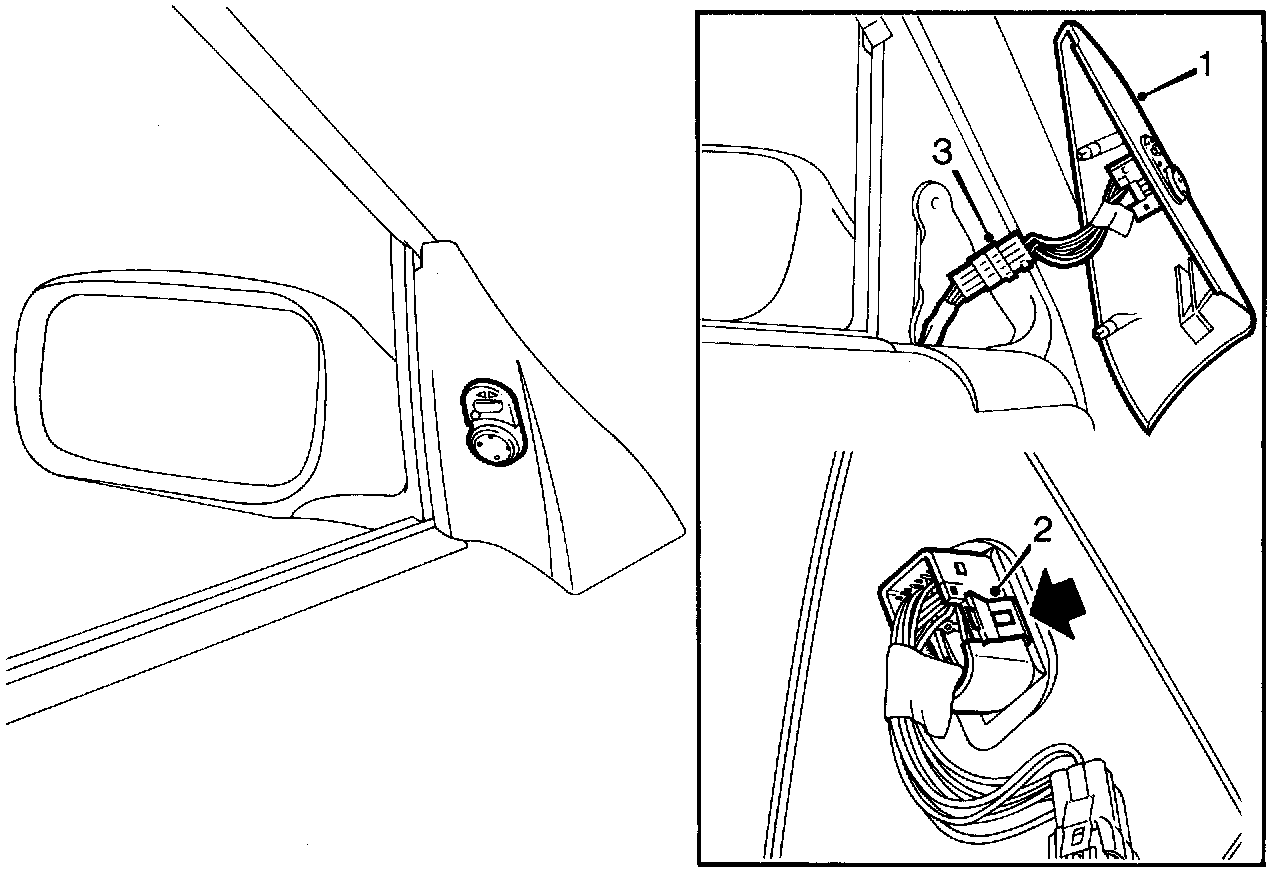

Remove the switch from the black cover on the inside of the driver's door.
2
Withdraw the wiring until the connector emerges.
Unplug the connector.
Install in reverse order.
