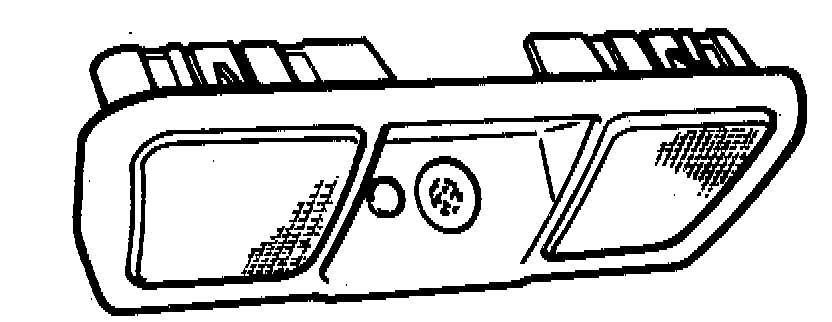

Connector Locations





Type Ultrasound (microphone)
Sensor voltage Pin No.1
Ground Pin No.2
Frequency range 45 kHz band
