Airbag Module

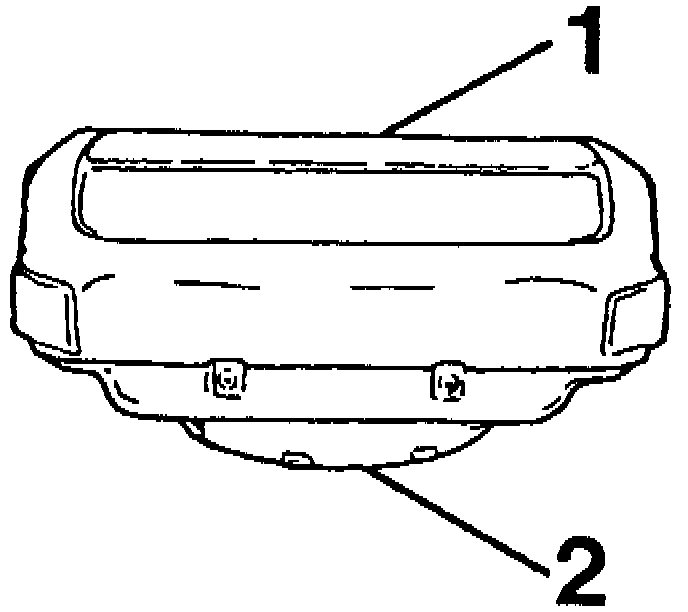

Fig. 4 Air Bag Module:

The airbag module, located in the steering wheel pad, contains the gas generator and airbag, Fig. 4. The gas generator consists of an aluminum case with a center compartment and two annular compartments. The center compartment has an electric detonator and explosive charge and is in communication with the inner annular compartment.
