Replacement of Control Module

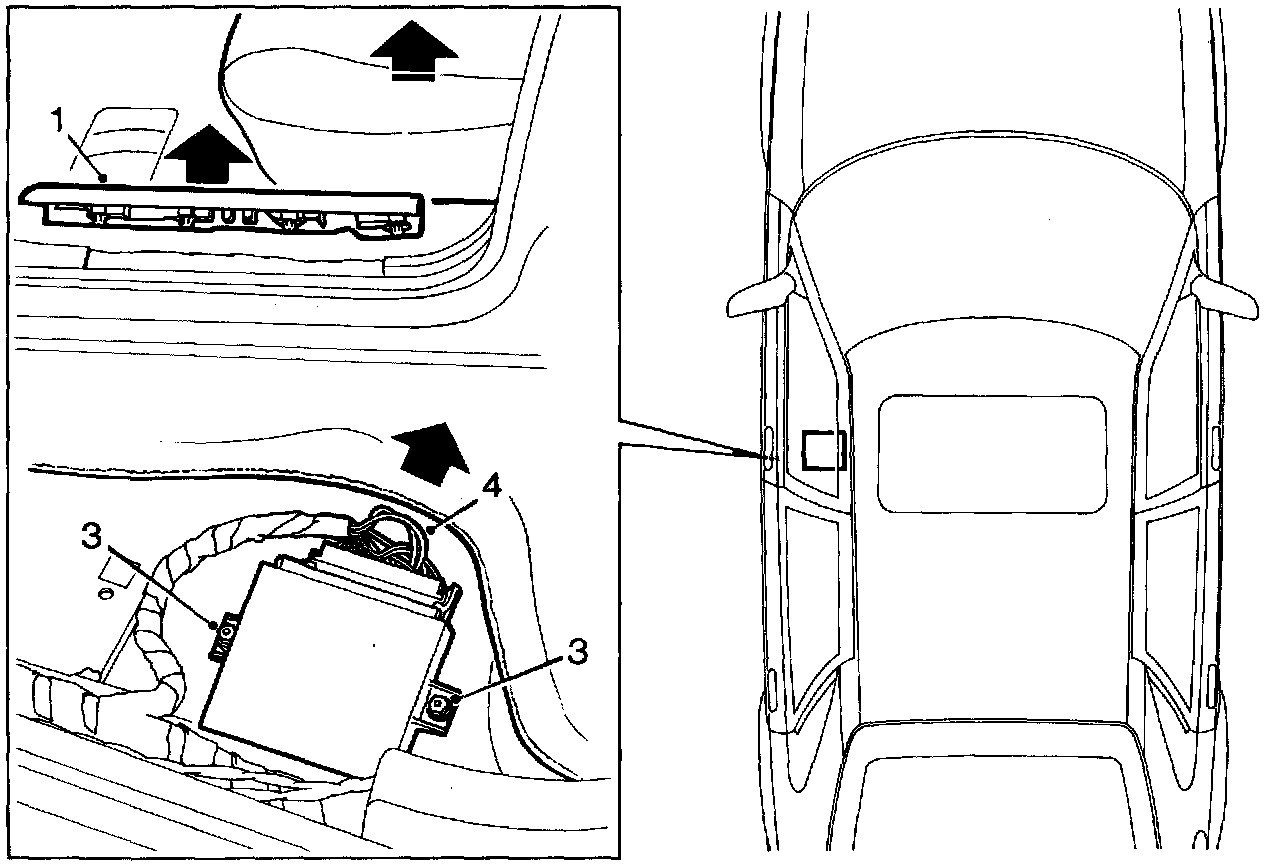

1 Raise the front seat to its highest position and remove the sill scuff plate.
2 3-D : Remove the floor-mounted seat-belt bolt. Lift up the carpet just in front of the B pillar to gain access to the control module.
3 Remove the two plastic nuts holding the control module in place and lift it out.
4 Unplug the connector from the control module.

Install in reverse order.
