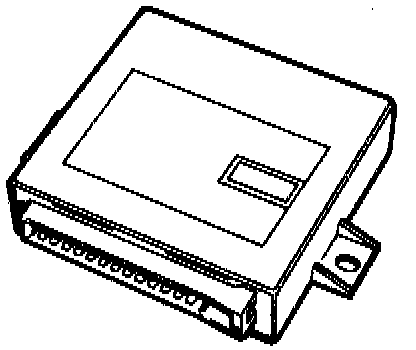

Control Module





Number of pins 25
Power supply (+30 circuit) Pin No.13
+15 Pin No.17
+50 Pin No.18
Main ground (power) Pin No.10
Signal ground Pin No.22
