Ignition

Description Of Function, Ignition:

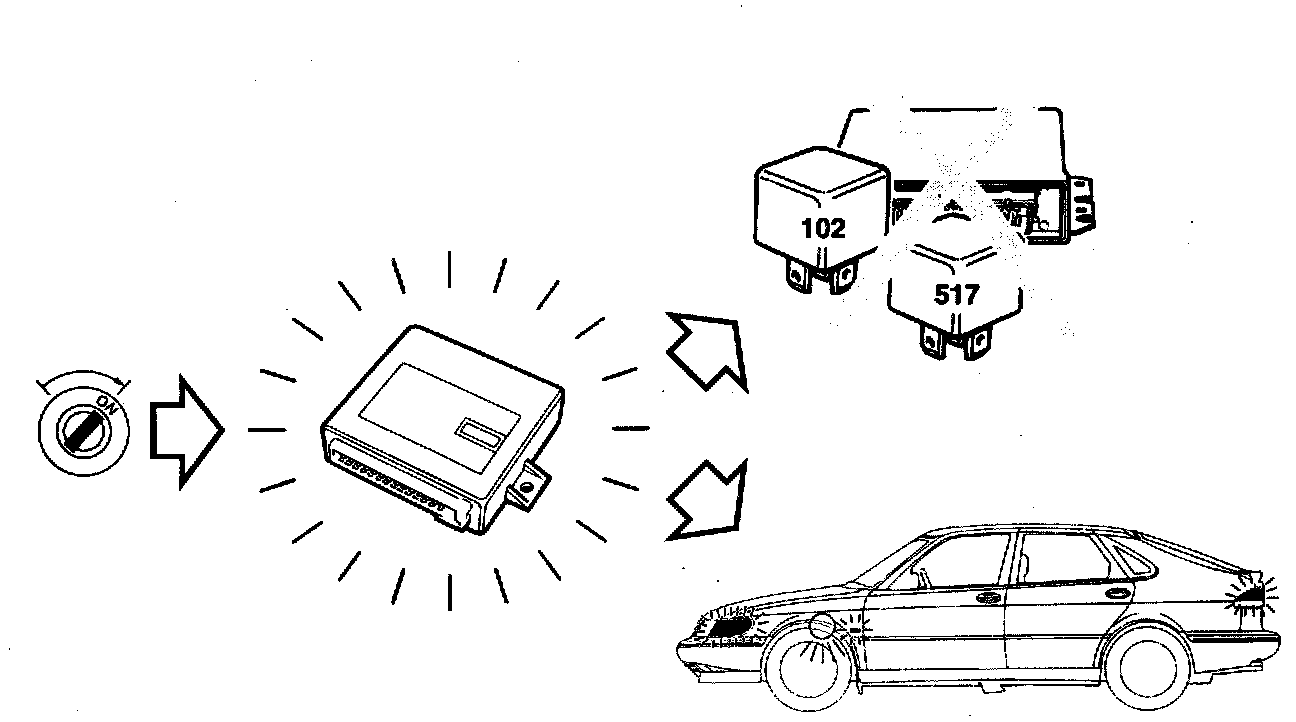

The ignition switch is connected to the control module (pin 10) so that the control module is able to sense the voltage (12 V) if the ignition is turned to the "ON" position (+ 15). The alarm is set off if the theft alarm is armed. This means that if an attempt is made to start the car, both the alarm and 3 circuit breaking (immobilization of starter and fuel pump relays and + 15 to the engine control system) are set off.


Important:
- If the ignition is in the "ON" position (+ 15), the theft alarm cannot be armed.
- If the ignition is turned to the "ON" position (+ 15) during the alarm delay period, the theft alarm is automatically disarmed.
