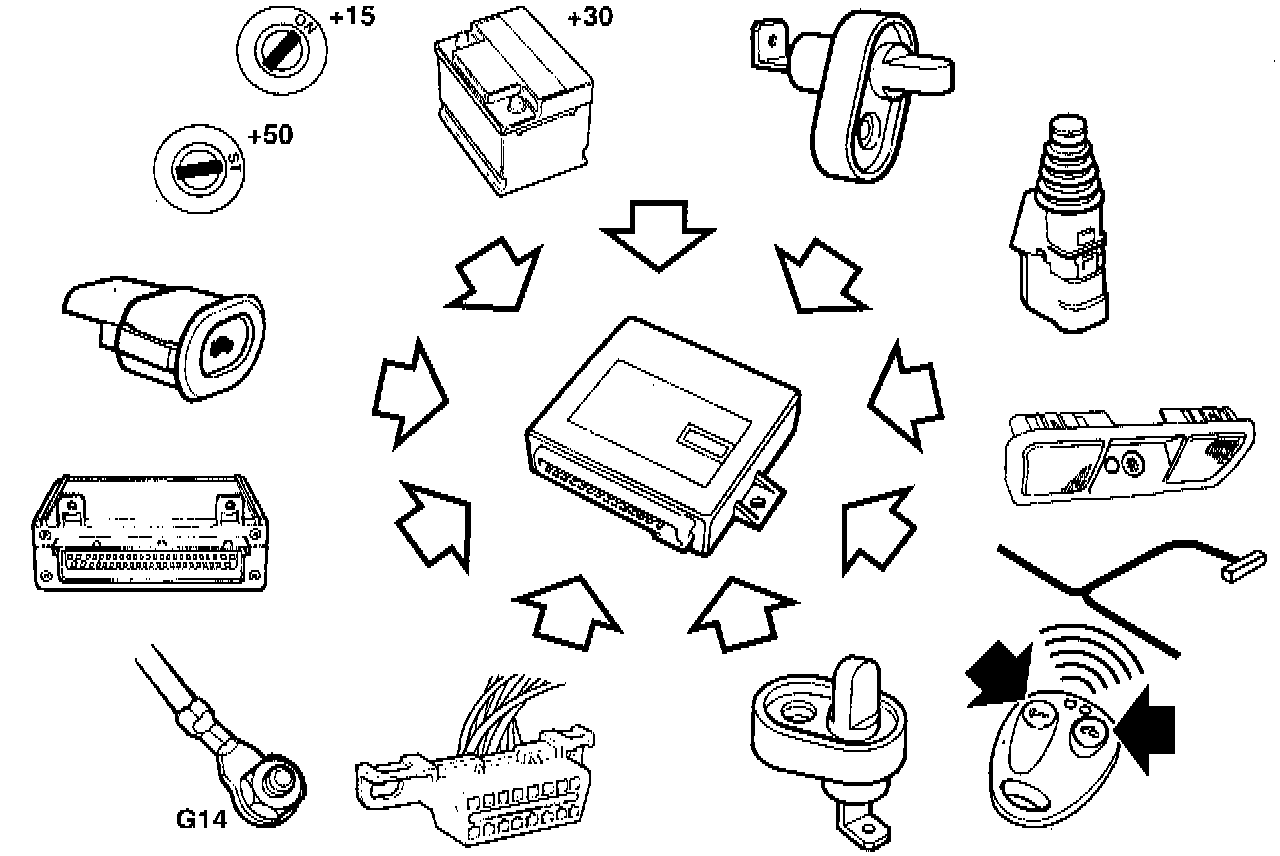

Electronic Control Module Inputs

Description Of Function, Electronic Control Module inputs:

- Remote control antenna, signal.
- Remote control antenna, ground.
- Luggage compartment switch.
- Lighting switch, luggage.
- Scan tool diagnostics, Intelligent Saab Tester (ISAT) scan tool.
- Door indication, driver door.
- Door switches via ICE control module.
- Glass breakage sensor, signal.
- Glass breakage sensor, ground.
- Main ground.
- Engine hood switch.
- Voltage supply + 30.
- Ignition "ON" (+ 15).
