Ignition Discharge Module - Pre-Replacement Check: Overview
SI No. 340-1722PI No. 2/97 Group 3 D 2.0
Date September 1997
Distr. all
900

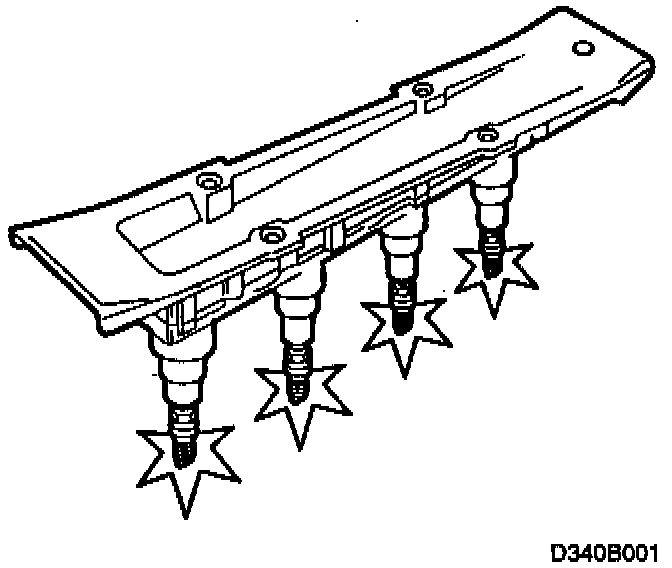

Pre-replacement check of [1][2]ignition discharge module
Cars affected
All cars with electronic ignition
Background
Because there is no diagnostic tool specifically for the [1][2]ignition discharge module. it can be difficult to measure certain of the module's functions. Saab has now produced a special test module, Part. No. 83 95 279 (CA:30567748). This module, used together with the other special tools and diagnostic procedures, makes it possible to test the ignition discharge module and thereby avoid unnecessary replacements.
The test module is a standard [1][2]ignition discharge module, except that ports have been provided between the mounting holes on the sides of the module. A hole for hanging the module has been provided, and the module is painted blue. The test module has undergone comprehensive function checks during both factory and road tests.
Materials
Test module: 83 95 279 (CA: 30567748)
See SI 103-1813 for information on this tool.
