Ignition Coil Pack: Service and Repair

To Remove

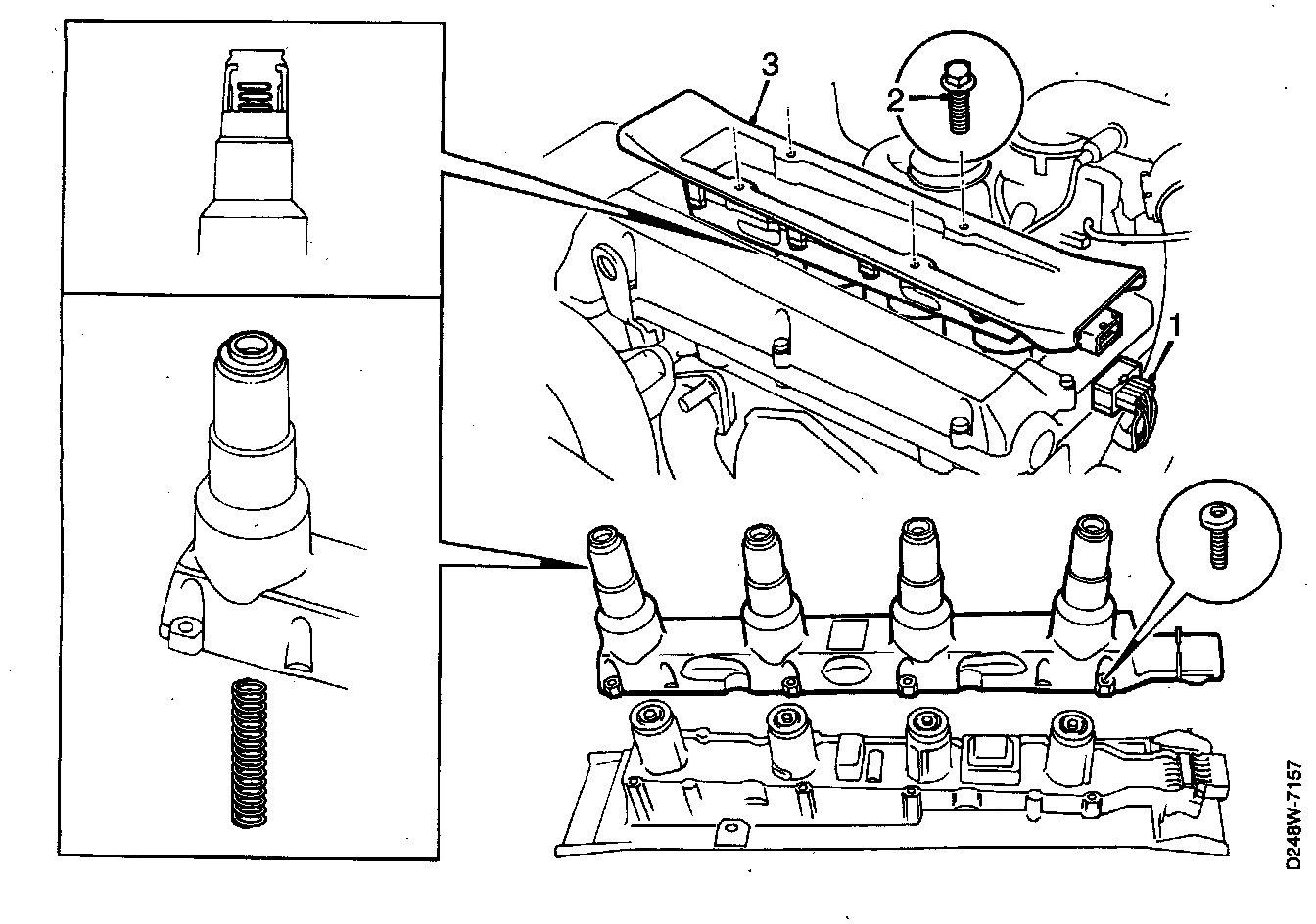

1. Unplug the connector.
2. Remove the 4 screws.
3. Lift up the [1][2]ignition discharge module.

To Install
Install in reverse order.
Tightening torque: 11 Nm (8.1 ft lbs).

Changing The Spring
1. Turn the [1][2]ignition discharge module upside down and remove the 8 screws.
2. Lift off the black bottom part of the [1][2]ignition discharge module.
3. To change the spring, use a screwdriver to prise out the old spring.
4. Then install the new spring in place.
