Pressure Regulator Four-Cylinder

PRESSURE REGULATOR, FOUR-CYLINDER

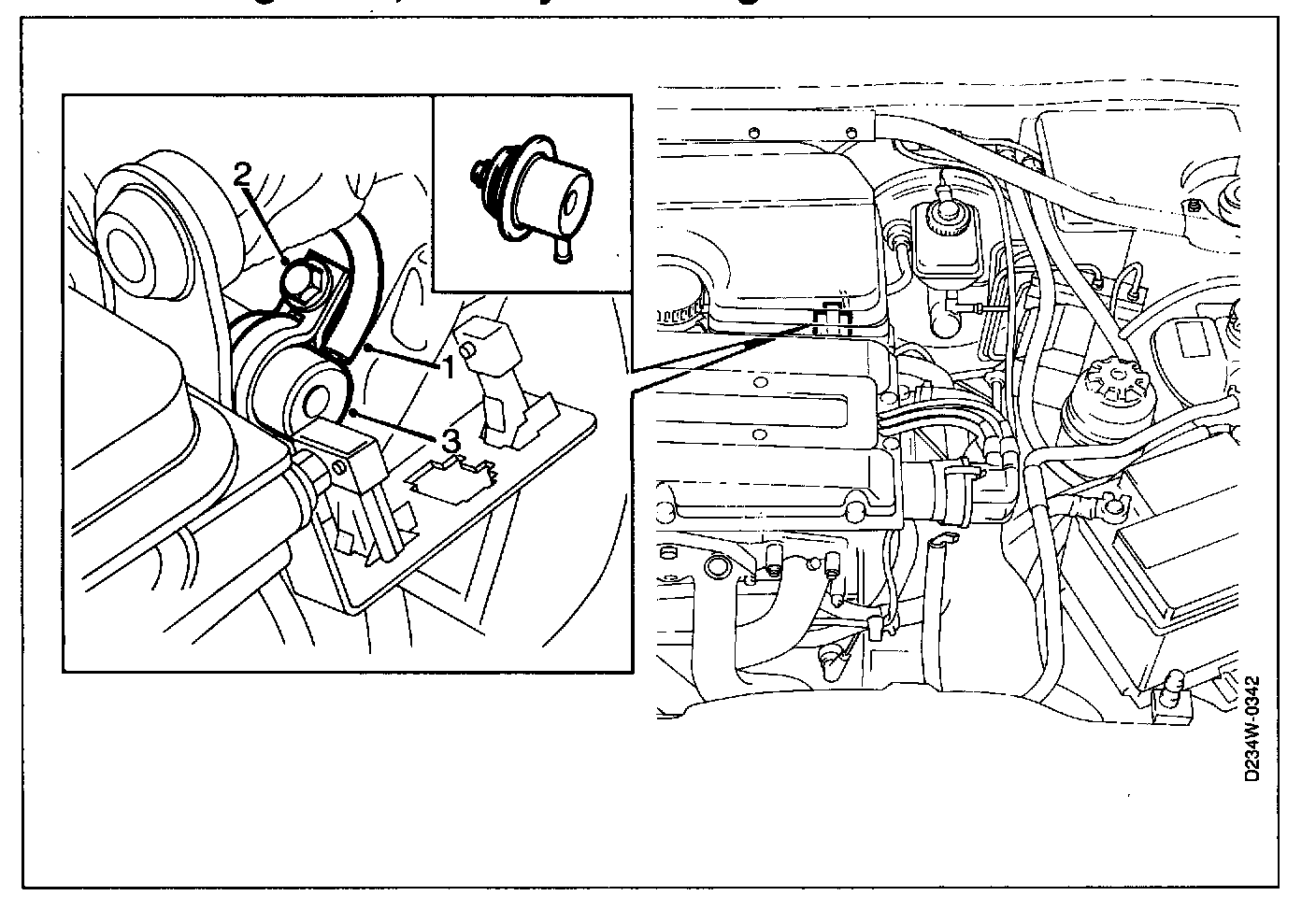

To Remove:

1. Remove the vacuum hose.

2. Slacken the screw and lower the clip.

3. Withdraw the pressure regulator.


To Fit:

Fit in reverse order.


Important Lubricate the 0-ring before filling it in place.
