Canister Purge Control Valve: Service and Repair

To Remove

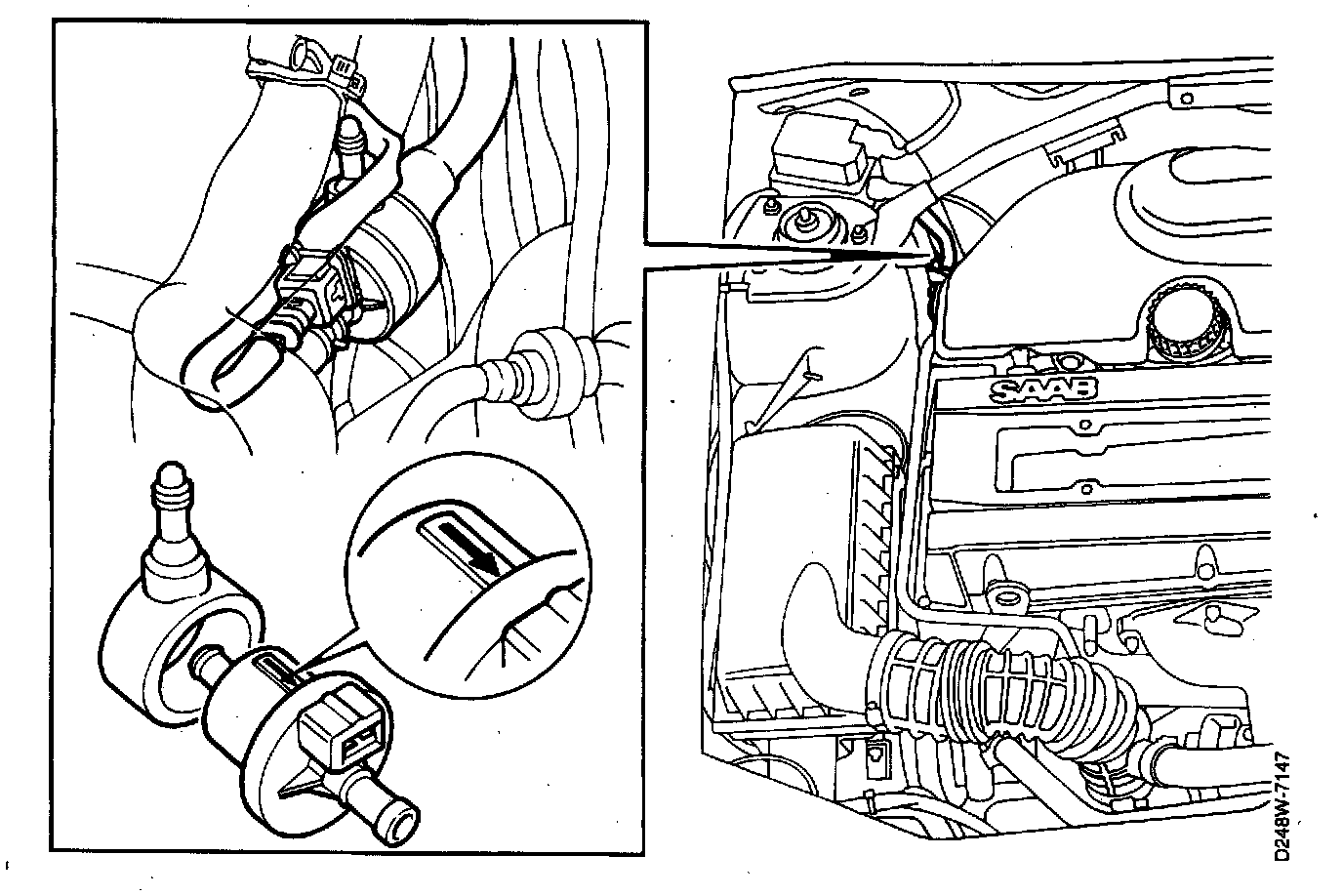

1. Unplug the connector from the purge valve.

NOTE: Note the position of the valve.

2. Disconnect the hoses from the valve.
3. Remove the valve from the holder.

To Install
Install in reverse order.
Pay attention to the position of the valve.

IMPORTANT: Note the arrow on the valve. The arrow should point to the front.
