Without Scantool

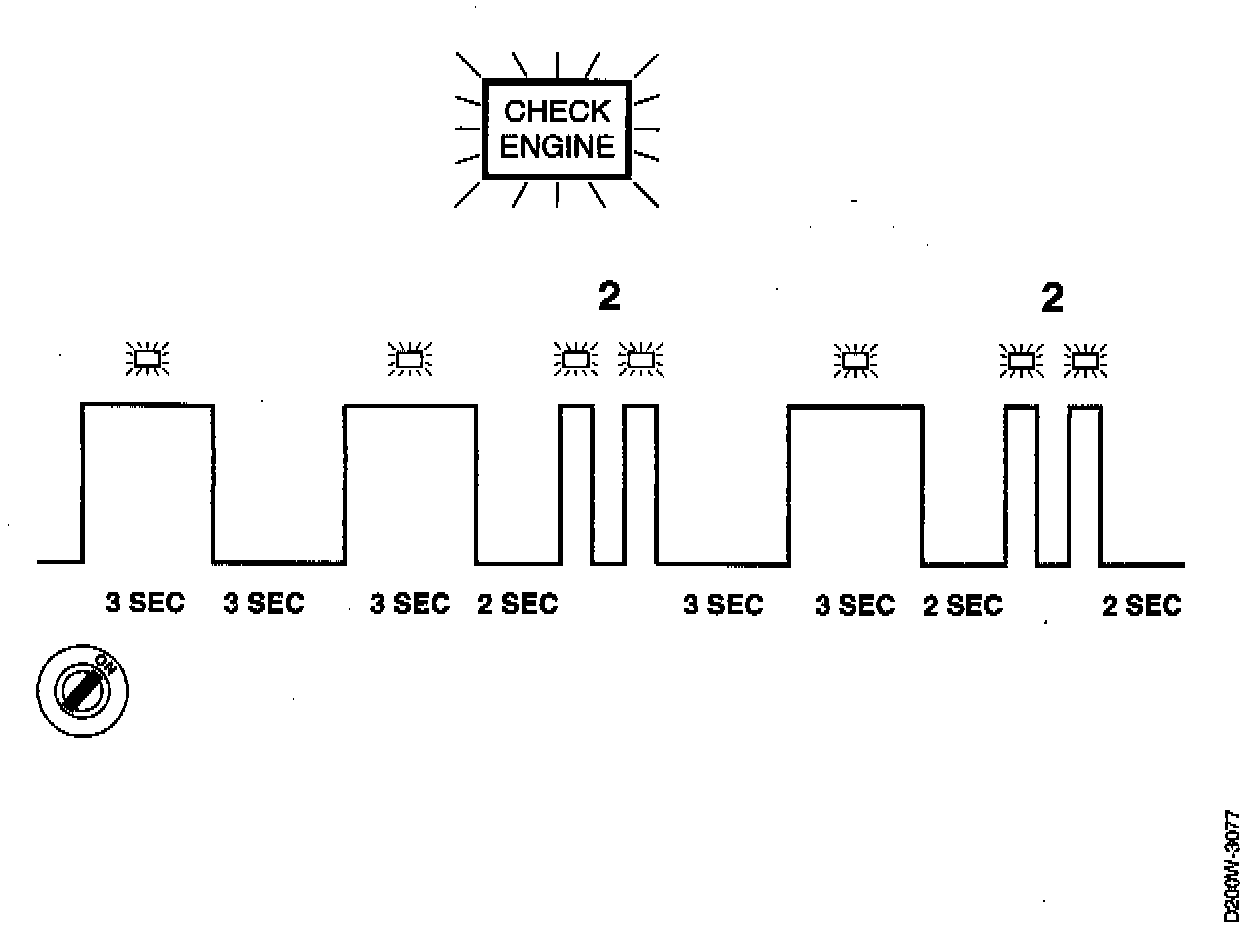

Flashing Code Sequence:

Diagnostic trouble codes (DTC) can be read off via the Malfunction Indicator Lamp (MIL) after the lamp test (3 seconds) when the ignition has been switched ON. The reading of flash codes can be repeated until the DTC memory has been cleared.

The DTC memory is cleared using the Intelligent SAab Tester (ISAT). But in an emergency clearing can be done by disconnecting the Trionic ECM connector for at least 5 minutes. Note that the ECM will then loose all adaptive values.

Read Out Diagnostic Trouble Codes As Follows

1. Stop the engine.
2. Switch ON the ignition without starting the engine.
3. After approximately 6 seconds, the MIL goes out for an instant before lighting up again for 3 seconds. This 3 second flash is a warning that the actual flashing code is about to appear.
4. The flashing code consists of a number of short flashes lasting 0.4 seconds. The MIL goes out for 2 seconds between each new flashing code (if there is more than one fault).
5. After the last flashing code, the MIL goes out for 3 seconds before lighting up again for 3 seconds, after which the flashing codes are repeated again. Readout continues in this way as many times as you wish.

NOTE: For a listing of codes, refer to "Flashing Code Charts", Engine Control Systems
