Trouble Codes - (Errant) Fault May Not Exist

CATEGORY
Maintenance

SECTION
1

PAGE
39

ISSUE
06/94-0471

CODE
101

Subject:
Diagnostic Trouble Codes Where a Fault May Not Exist

Application:
1994-900 Models

During normal scanning with ISAT (i.e. at PDI), It has been found that incorrect trouble codes (DTC) may be generated in some systems. To avoid unnecessary repair work, please refer to the table of codes and remarks illustrated.

Cars Affected:
1994-900 models

Action:

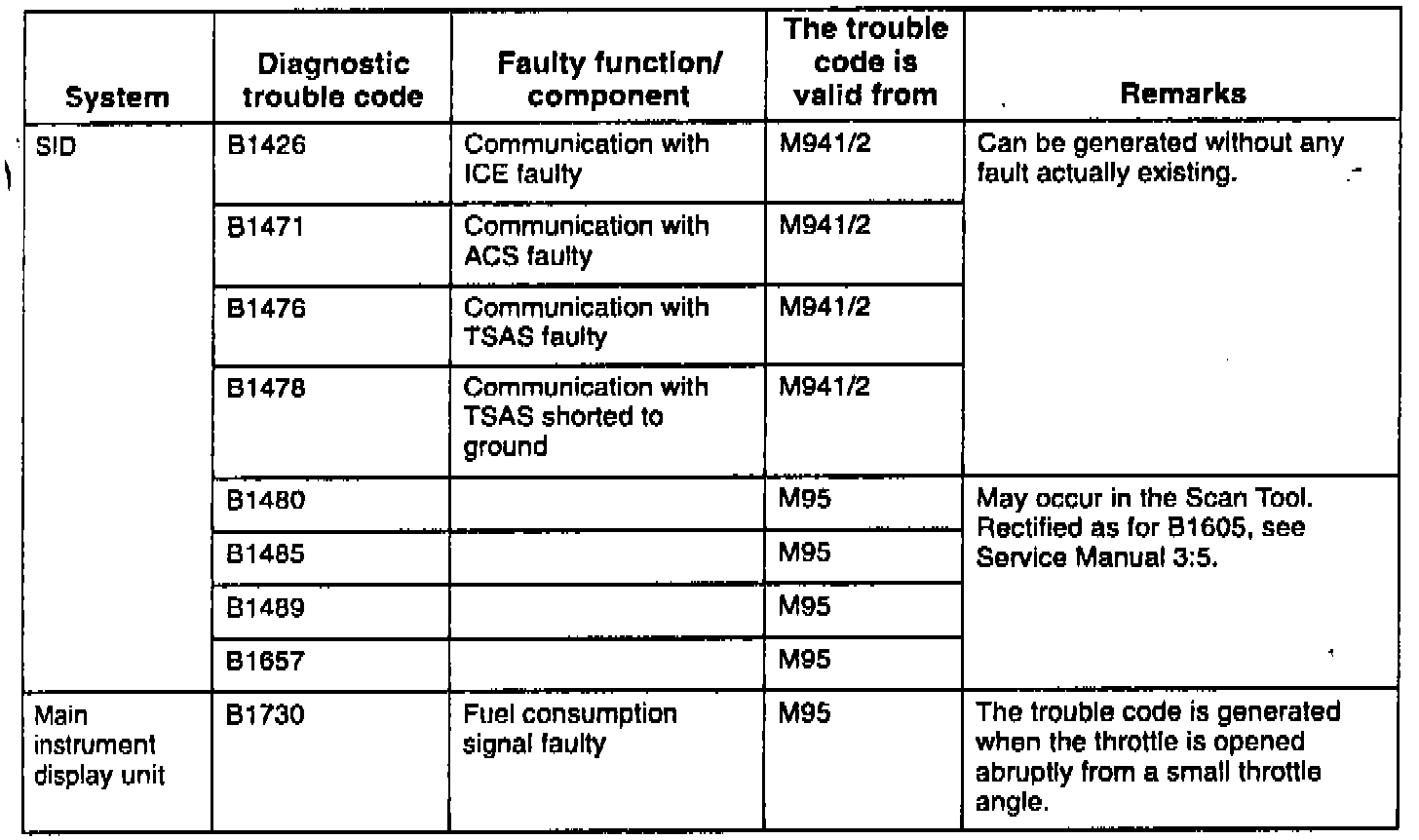

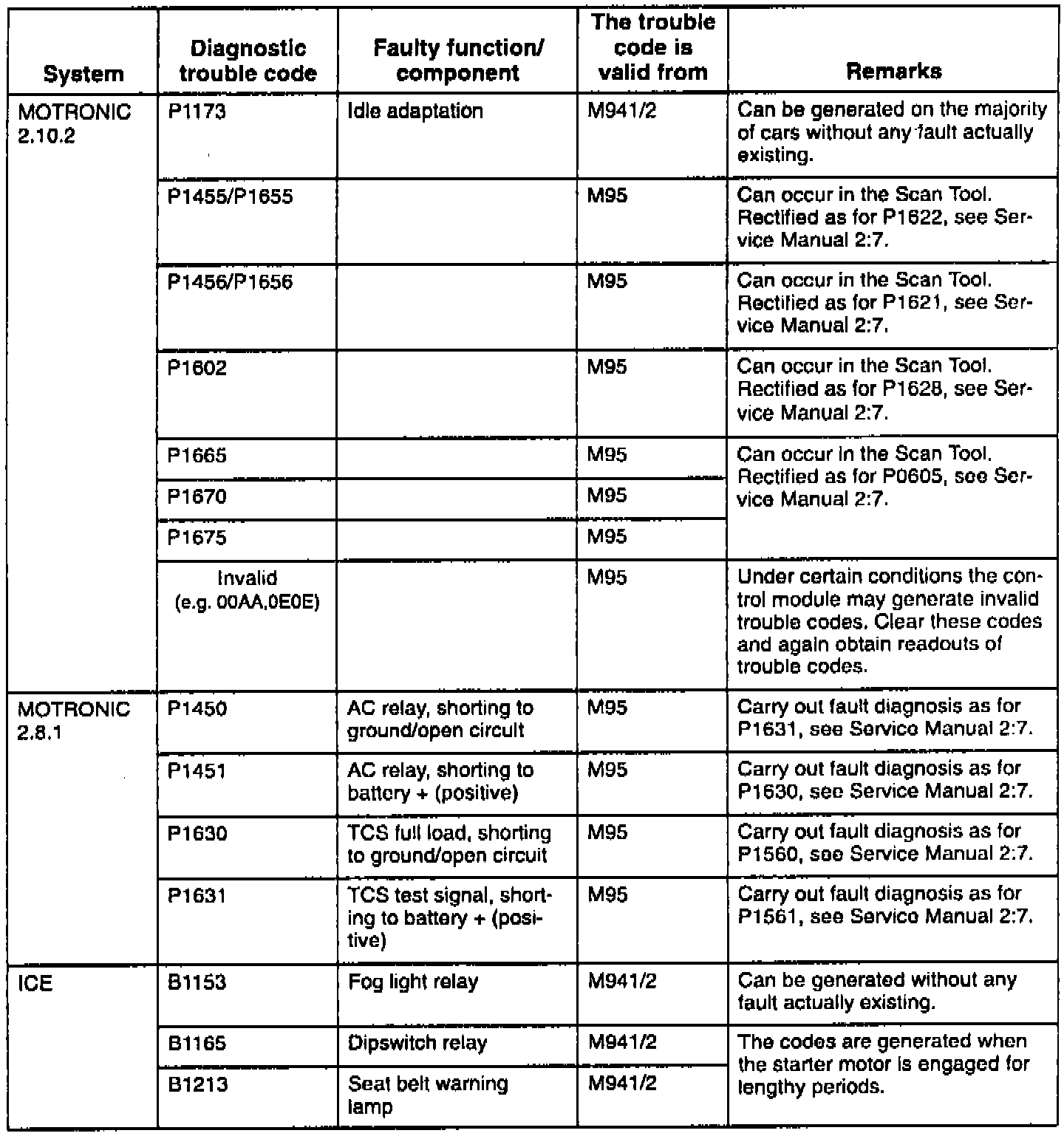

The illustrated tables list the trouble codes you may encounter.
