ISAT Scan Tool Diagnostics Set - Changes

CATEGORY
Tools

SECTION
1

ISSUE
12/95-0650

PAGE
50

CODE
100

Subject:
Change to Basic ISAT Scan Tool Diagnostics Set

Application:





The basic ISAT scan tool has been upgraded to provide better graphics capabilities. Along with this change, there has also been a change made to the layout of the transport case to allow for the storage of ISAT with SDA attached. The case will also allow for storage of ISAT fitted with a Saab Interface Module (SIM) although this item is not included in the kit. The contents of an ISAT "Kit" have also been changed. See below. Please note the change to the part number.

Parts

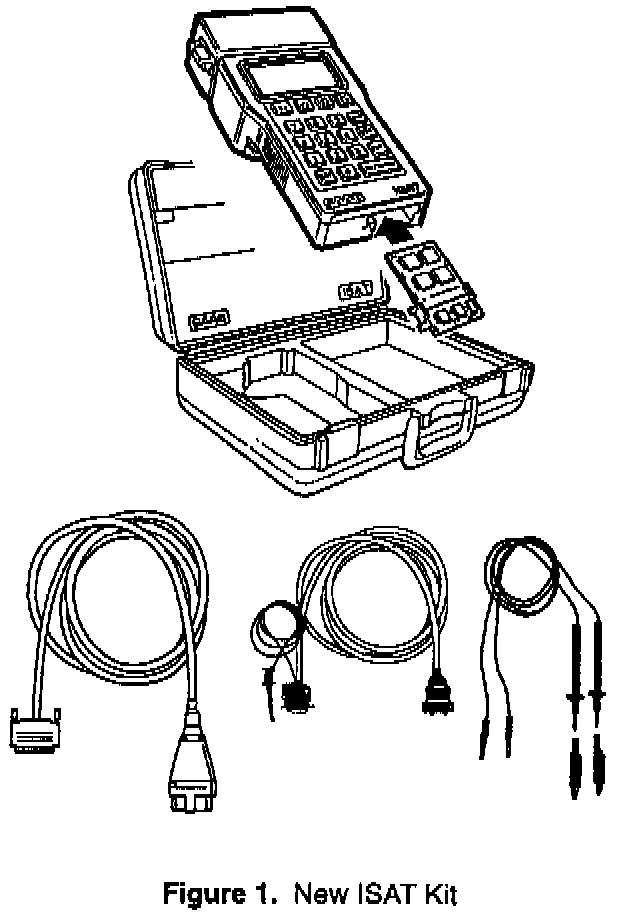

ISAT Scan Tool Diagnostics Kit 86 12 012

Consisting of:

^ ISAT scan tool with flash memory module (P/N 86 11 998) and rechargeable 9 volt battery

^ SDA 11 adapter (86 11 436)

^ Three (3) cables:
10-pin P/N 86 10 701
16-pin P/N 86 12 004
Multi-meter P/N 86 10 719

Price: $3108.50

This new part number supersedes earlier ISAT Kit, P/N 86 10 834. All future dealer orders will be of new P/N 86 120 12. This item is available for ordering from Kent-Moore at 1-800-345-2233.
