Idle Speed/Throttle Actuator - Electronic: Service and Repair

To Remove
1. Remove the engine cover.

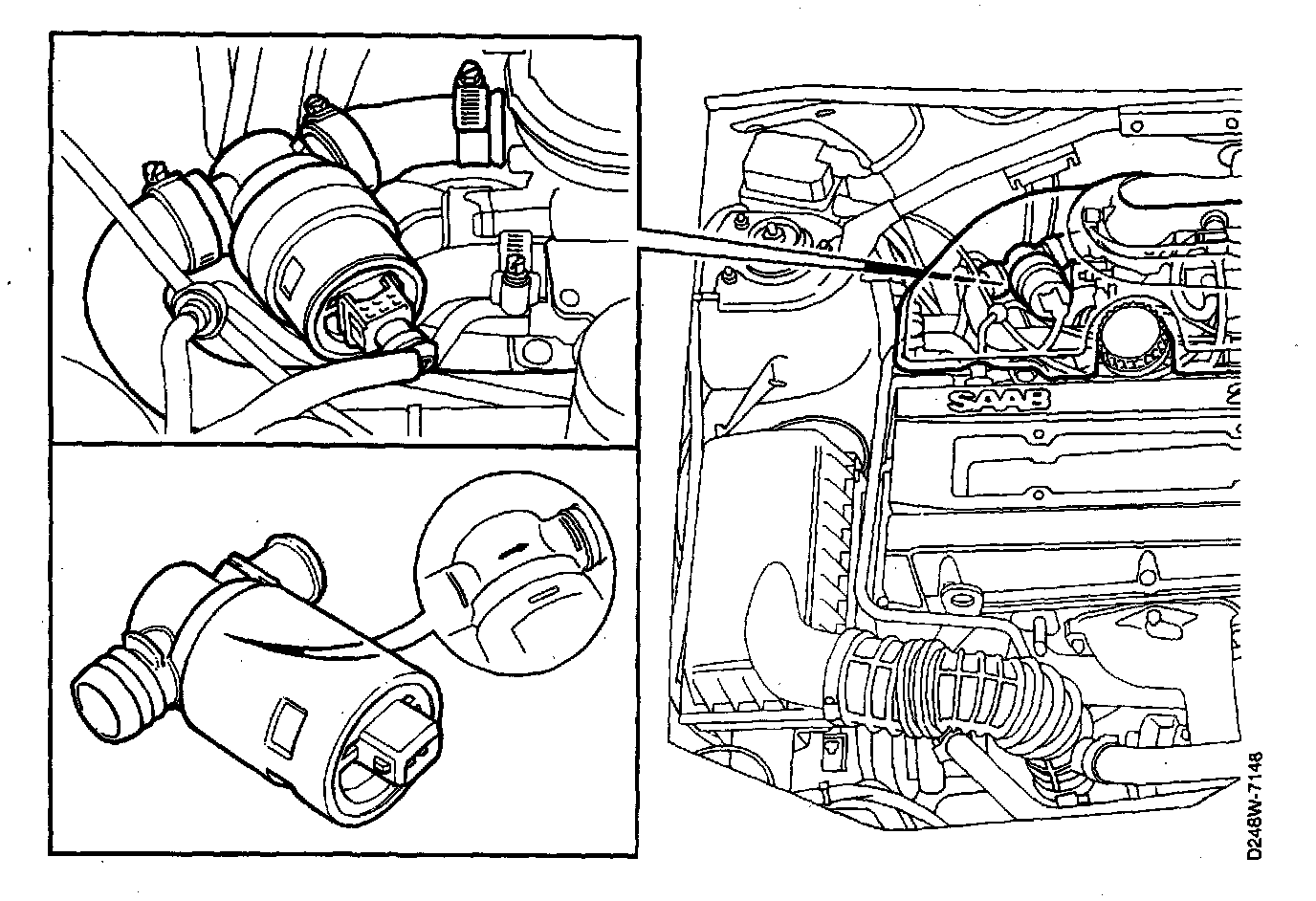

2. Unplug the [1][2]idle air control valve's connector and remove the valve.
3. Remove the valve from the bracket and hoses.

To Install
Install in reverse order.

IMPORTANT: Note the arrow on the valve. The arrow should point away from the throttle body.
