Power Supply and Grounding Points

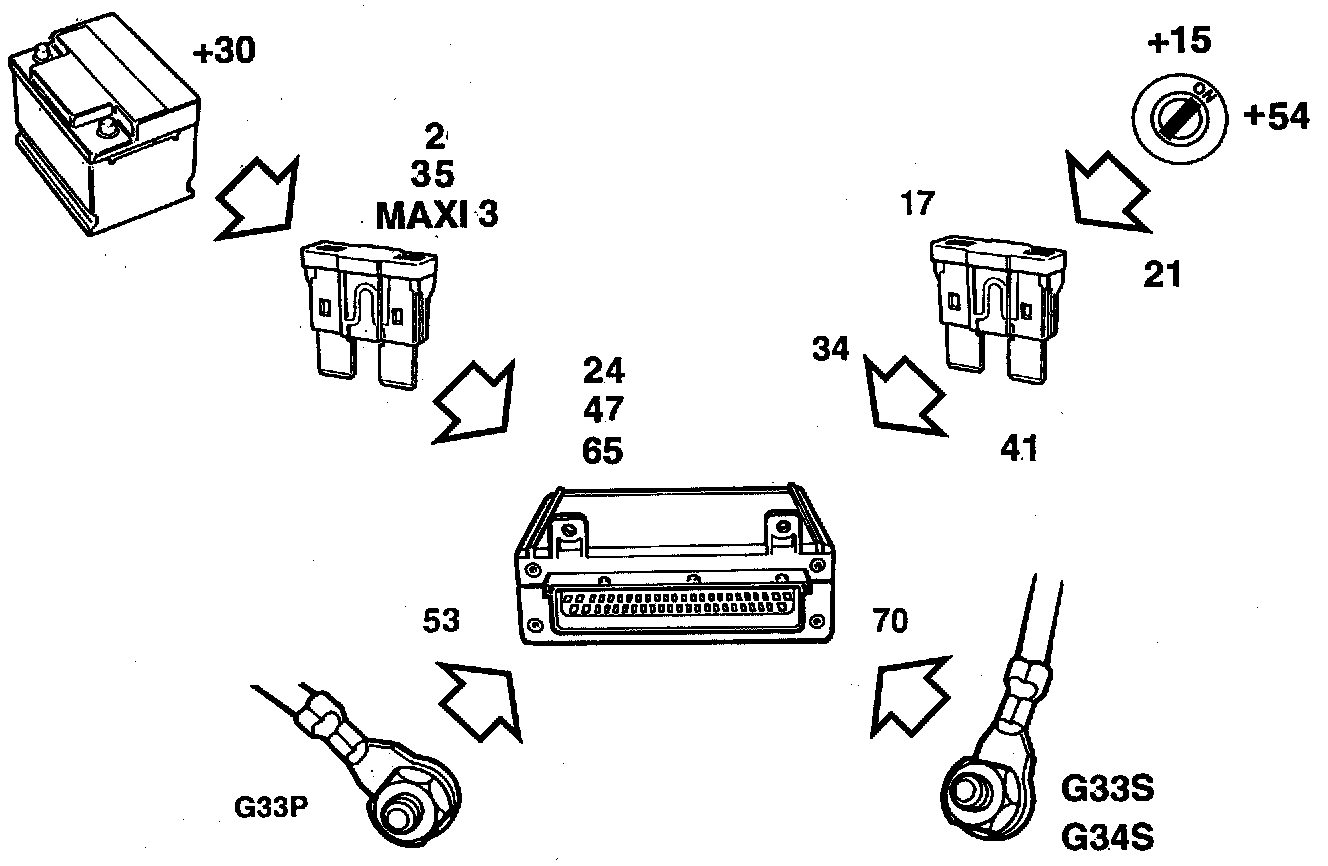

Power supply
+54:
+54 power supply is applied to pin 41 of the control module via fuse 21.

+30:
+30 power supply is applied to pins 24 and 47 of the control module via fuses 2 and 35.
The +30 supply also goes via MAXI fuse 3 and the ignition switch to pin 65 of the control module.

+15:
+15 power supply is applied to pin 34 of the control module via fuse 17.

Grounding points
Control module pins 53 and 70 are connected to ground at grounding points G33P and G33S (LHD) or G34S (RHD).
