Dipped Beam

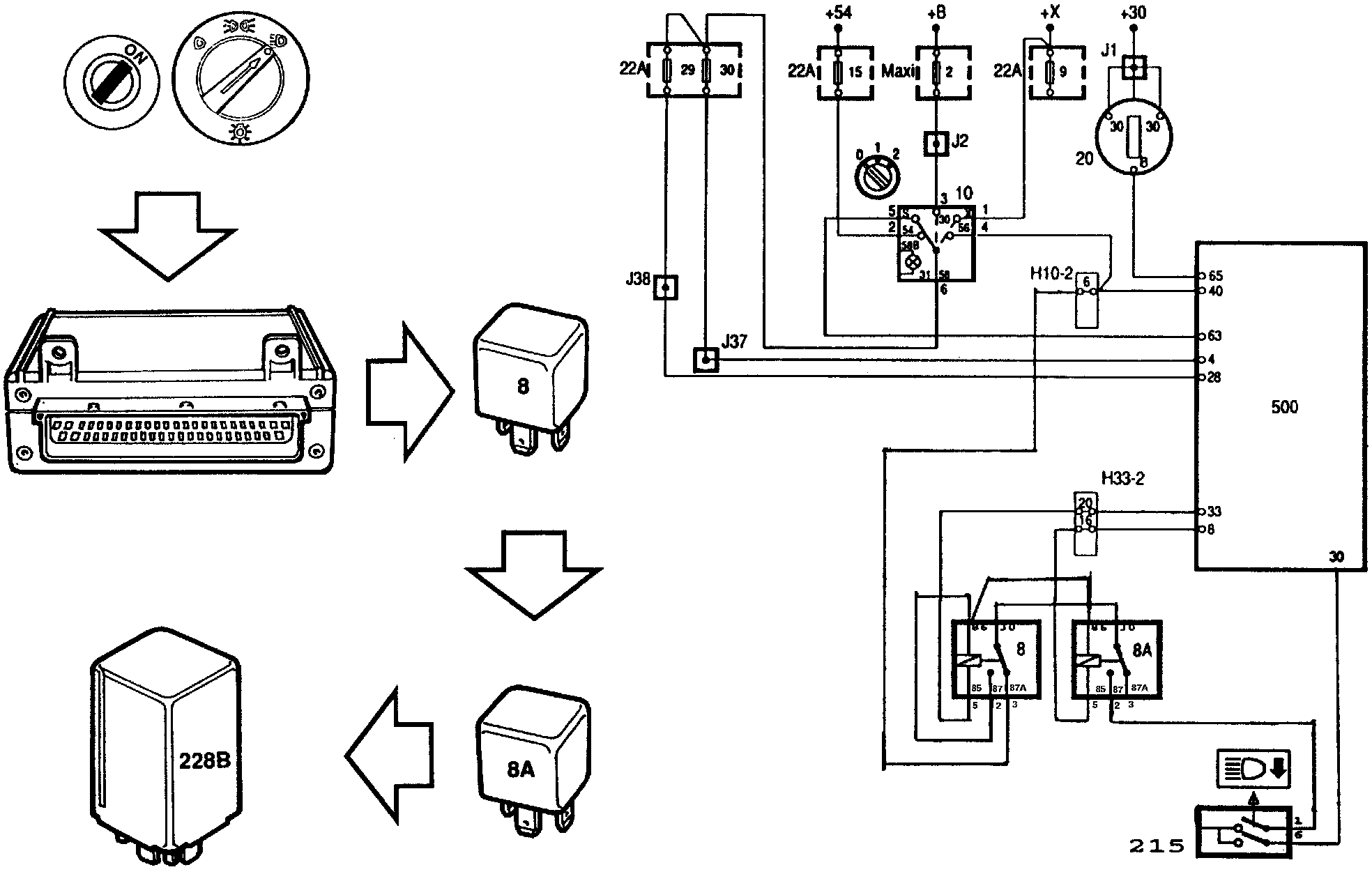

When the lights switch is in position 2, Integrated Central Electronics (ICE) module pin 40 is supplied with power from switch pin 56. ICE module pin 33 grounds the coil of the relay for the lights.
Power (+30) is supplied via the lights relay and front filament monitor, pin 56B, and the dipped beam fuses.
