ICE Components List
(.� ~�� �� �� *�� :

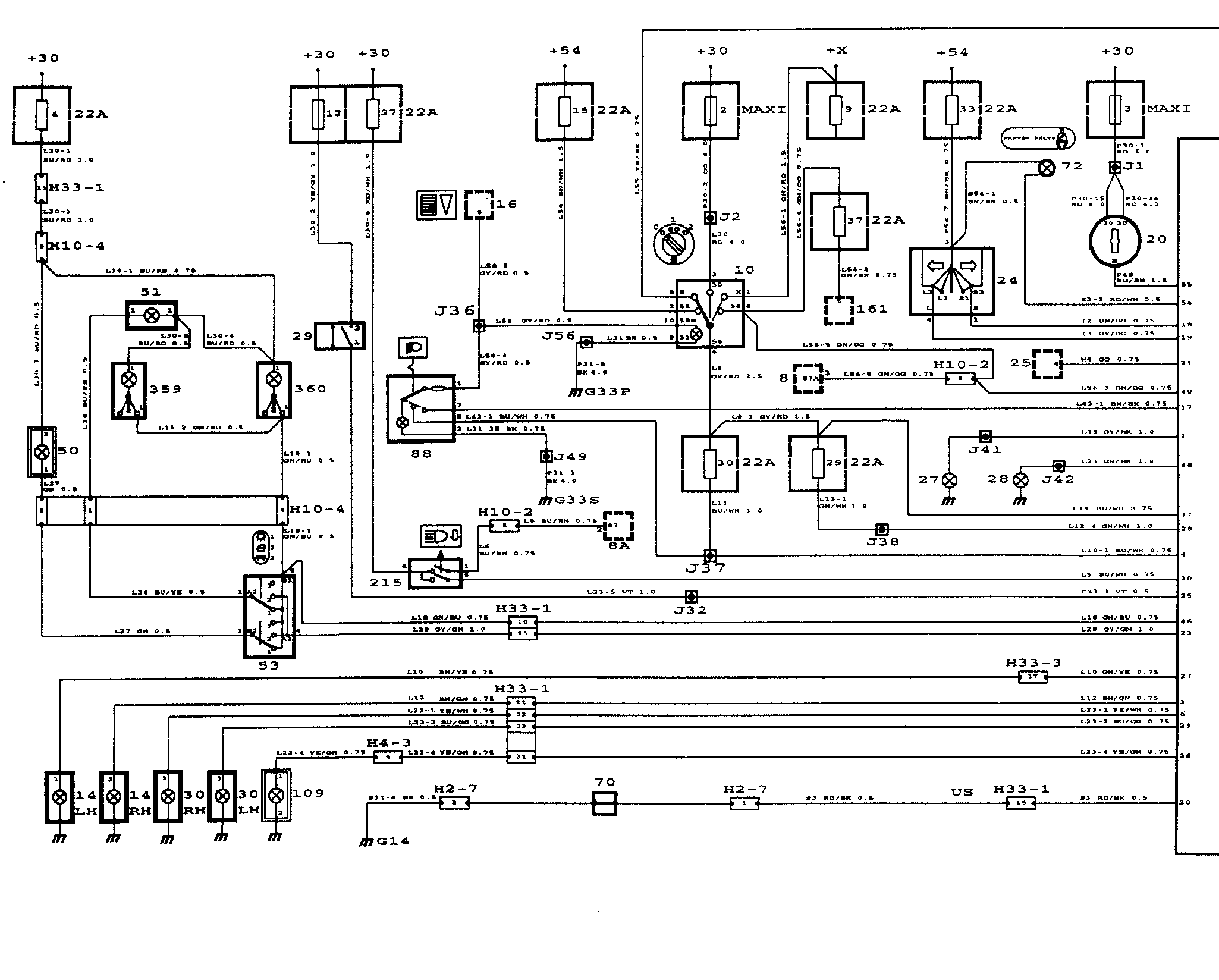

Wiring Diagram: Integrated Central Electronics (ICE) wiring diagram, M94
List Of Components
MAXI Maxi main fuse box in the engine bay.
8 Headlamp relay in the main fuse box in the engine bay (pos. A).
8A Dipswitch relay in the main fuse box in the engine bay (pos. B).
10 Lights switch to the left (LHD) or right (RHD) of the steering wheel.
14 Rear lights in rear light clusters.
16 Rheostat to the left (LHD) or right (RHD) of the steering wheel.
20 Ignition switch between the front seats.
22A Main fuse box, behind the cover panel in the glove box.
24 Direction indicator stalk switch on the left of the steering column.
27 LH direction indicator lamps in front and rear light clusters.
28 RH direction indicator lamps in front and rear light clusters.
29 Brake light switch on brake pedal assembly.
30 Brake light in RH and LH rear light clusters.
45 Engine coolant temperature sensor on the left-hand side in the engine bay.
46 Fuel level sensor in the fuel tank.
50 Roof lamp, rear
51 Roof lamp, front
53 Interior lighting switch on centre console beside the ignition switch.
54 Door switch in the door openings.
61 Windshield wiper switch on the right of the steering column.
61 A Rear window wiper switch on the windshield wiper stalk switch.
70 Driver's seat-belt switch in belt buckle.
72 Seat-belt warning lamp above side instrument panel.
81 Relay, 2-speed radiator fan in main fuse box in engine bay (pos. 342B:l).
83 Relay, intermittent windshield wiper operation in main fuse box in dashboard (pos. 22B:G (LHD) and pos. 22B:L (RHD)).
83A Relay, intermittent rear window wiper operation in main fuse box in dashboard (pos. 22B:D (LHD) and pos. 22B:K (RHD)).
88 Switch, extra fog lights, to left (LHD) or right (RHD) of the steering wheel.
107 Relay, extra fog lights, in the main fuse box in the engine bay (pos. 342B:F).
109 High-level brake light in the tailgate.
113 Relay, electrically heated rear window, in the main fuse box in the dashboard (pos. 22B:H (LHD) and pos. 22B:G (RHD)).
155 Relay, radiator fan, in the main fuse box in the engine bay (pos. 342B:G).
166 Pressure switch, A/C and ACC fan, beside the radiator fan on the left-hand side between the grille and the fan.
171 Anti-frost thermostat, A/C and ACC, behind the ashtray in the centre console.
215 Dipswitch, on the left of the steering column.
216 Climate control unit in the centre console.
289 Anti-theft alarm control module, under the left-hand front seat.
359 Illuminated vanity mirror/reading lamp on the left under the sun visor.
360 Illuminated vanity mirror/reading lamp on the right under the sun visor.
419 Pressure switch, A/C, beside the radiator fan on the left between the grille and the fan.
430 Control module, TRIONIC engine management system, on the right-hand side behind the side trim under the A pillar.
445 Data link connector under the dashboard by (H16-1) the steering wheel.
446 Relay, driver's seat, under the driver's seat.
500 Integrated Central Electronics (ICE) control module beside the steering column above the relay holder.
504 Heating and ventilation control panel in the middle of the dashboard in the centre console.
505 Control module M2.10.1 on the right-hand side behind the side trim under the A pillar.
510 Control module M2.8.1 on the right-hand side behind the side trim under the A pillar.
540 Main instrument display panel in the dashboard.
541 Saab Information Display (SID) unit in the middle of the dashboard.
H2-6 Under the driver's seat (LHD).
H2-7 Under the driver's seat (RHD).
H4-4 Behind the left-hand wheel housing in the luggage compartment.
H8-3 Under the driver's seat.
H10-2 On a bracket below the left-hand A pillar.
H10-4 Behind the left-hand wheel housing in the luggage compartment.
H33-1 Blue 33-pin connector on a bracket below the left-hand A pillar.
H33-2 Black 33-pin connector on a bracket below the left-hand A pillar.
H33-3 Grey 33-pin connector on a bracket below the left-hand A pillar.
H33-4 Behind the glove compartment on the bulkhead.
��� �Y� �Z� C[� e[� :

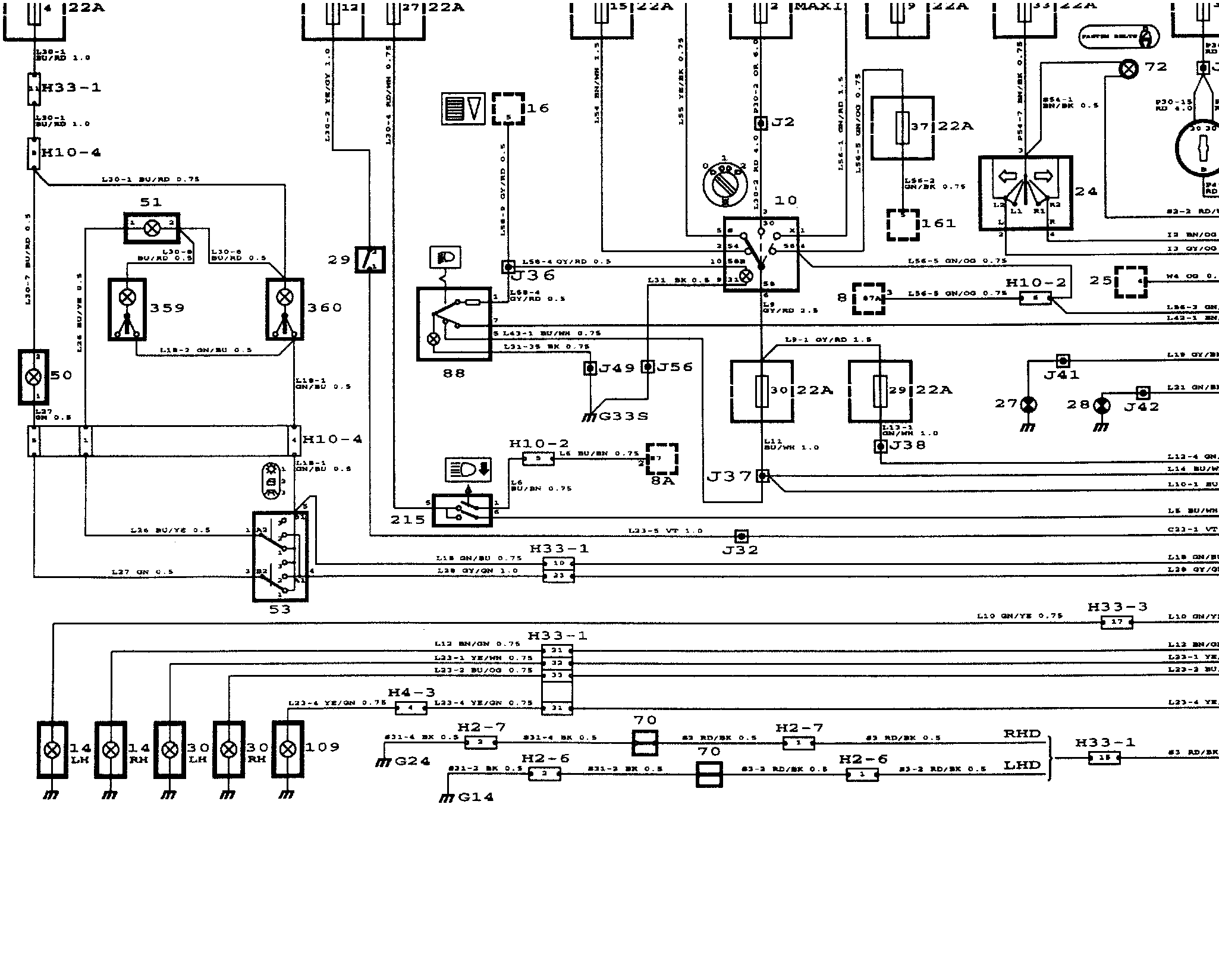

Wiring Diagram: ICE wiring diagram, M941/2
List Of Components
MAXI Maxi main fuse box in the engine bay.
8 Headlamp relay in the main fuse box in the engine bay (pos. A).
8A Dipswitch relay in the main fuse box in the engine bay (pos. B).
10 Lights switch to the left (LHD) or right (RHD) of the steering wheel.
14 Rear lights in rear light clusters.
16 Rheostat to the left (LHD) or right (RHD) of the steering wheel.
20 Ignition switch between the front seats.
22A Main fuse box, behind the cover panel in the glove box.
24 Direction indicator stalk switch on the left of the steering column.
27 LH direction indicator lamps in front and rear light clusters.
28 RH direction indicator lamps in front and rear tight clusters.
29 Brake light switch on brake pedal assembly.
30 brake light in RH and LH rear light clusters.
45 Engine coolant temperature sensor on the left-hand side in the engine bay.
46 Fuel level sensor in the fuel tank.
50 Roof lamp, rear
51 Roof lamp, front
53 Interior lighting switch on centre console beside the ignition switch.
54 Door switch in the door openings.
61 Windshield wiper switch on the right of the steering column.
61A Rear window wiper switch on the windshield wiper stalk switch.
70 Driver's seat-belt switch in belt buckle.
72 Seat-belt warning lamp above side instrument panel.
81 Relay, 2-speed radiator fan in main fuse box in engine bay (pos. 342B:1).
83 Relay, intermittent windshield wiper operation in main fuse box in dashboard (pos. 22B:G (LHD) and pos. 22B.L RHD)).
83A Relay, intermittent rear window wiper operation in main fuse box in dashboard (pos. 22B:D (LHD) and pos. 22B:K (RHD)).
88 Switch, extra fog lights, to left (LHD) or right (RHD) of the steering wheel.
107 Relay, extra fog lights, in the main fuse box in the engine bay (pos. 342B:F).
109 High-level brake light in the tailgate.
113 Relay, electrically heated rear window, in the main fuse box in the dashboard (pos. 22B:H (LHD) and pos. 22B:G (RHD)).
155 Relay, radiator fan, in the main fuse box in the engine bay (pos. 342B:G).
166 Pressure switch, NC and ACC fan, beside the radiator fan on the left-hand side between the grille and the. fan.
171 Anti-frost thermostat, A/C and ACC, behind the ashtray in the centre console.
215 Dipswitch, on the left of the steering column.
216 Climate control unit in the centre console.
289 Anti-theft alarm control module, under the left-hand front seat.
359 Illuminated vanity mirror/reading lamp on the left under the sun visor.
360 Illuminated vanity mirror/reading lamp on the right under the sun visor.
419 Pressure switch, NC, beside the radiator fan on the left between the grille and the fan.
430 Control module, TRIONIC engine management system, on the right-hand side behind the side trim under the A pillar.
445 Data link connector under the dashboard by (H16-1) the steering wheel.
446 Relay, driver's seat, under the driver's seat.
500 ICE control module beside the steering column above the relay holder.
504 Heating and ventilation control panel in the middle of the dashboard in the centre console.
505 Control module M2.10.1 on the right-hand side behind the side trim under the A pillar.
510 Control module M2.8.1 on the right-hand side behind the side trim under the A pillar.
540 Main instrument display panel in the dashboard.
541 SID unit in the middle of the dashboard.
H2-6 Under the driver's seat (LHD).
H2-7 Under the driver's seat (RHD).
H4-4 Behind the left-hand wheel housing in the luggage compartment.
H8-3 Under the driver's seat.
H10-2 On a bracket below the left-hand A pillar.
H10-4 Behind the left-hand wheel housing in the luggage compartment.
H33-1 Blue 33-pin connector on a bracket below the left-hand A pillar.
H33-2 Black 33-pin connector on a bracket below the left-hand A pillar.
H33-3 Grey 33-pin connector on a bracket below the left-hand A pillar.
H33-4 Behind the glove compartment on the bulkhead.
Y�� �� � � U � v � :

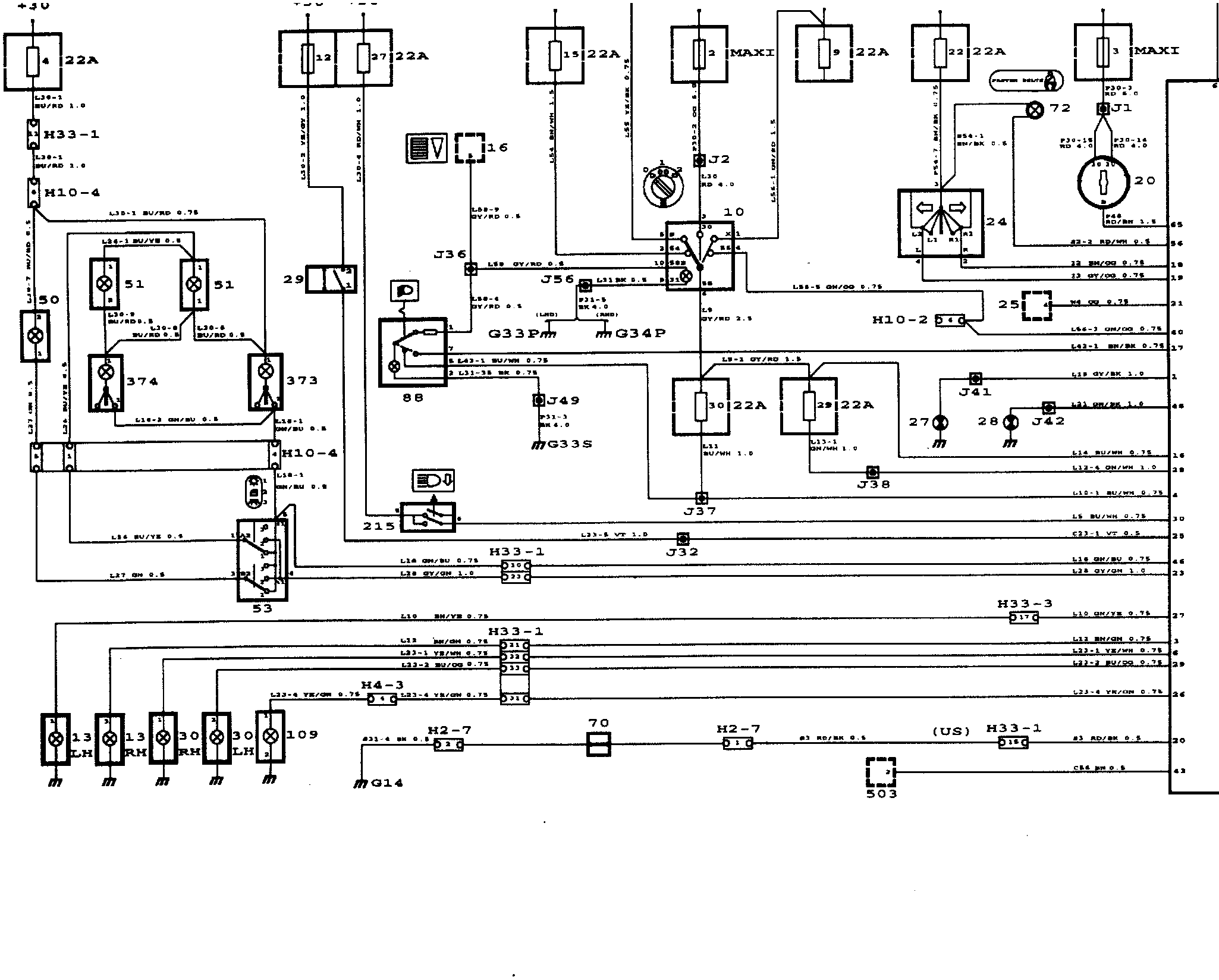

Wiring Diagram: ICE wiring diagram, M95
List Of Components
MAXI Maxi main fuse box in the engine bay.
8 Headlamp relay in the main fuse box in the engine bay (pos. A).
8A Dipswitch relay in the main fuse box in the engine bay (pos. B).
10 Lights switch to the left (LHD) or right (RHD) of the steering wheel.
14 Rear lights in rear light clusters.
16 Rheostat to the left (LHD) or right (RHD) of the steering wheel.
20 Ignition switch between the front seats.
22A Main fuse box, behind the cover panel in the glove box.
24 Direction indicator stalk switch on the left of the steering column.
27 LH direction indicator lamps in front and rear light clusters.
28 RH direction indicator lamps in front and rear light clusters.
29 Brake light switch on brake pedal assembly.
30 Brake light in RH and LH rear light clusters.
45 Engine coolant temperature sensor on the left-hand side in the engine bay.
46 Fuel level sensor in the fuel tank.
50 Roof lamp, rear
51 Roof lamp, front
53 Interior lighting switch on centre console beside the ignition switch.
54 Door switch in the door openings.
61 Windshield wiper switch on the right of the steering column.
61A Rear window wiper switch on the windshield wiper stalk switch.
70 Driver's seat-belt switch in belt buckle.
72 Seat-belt warning lamp above side instrument panel.
81 Relay, 2-speed radiator fan in main fuse box in engine bay (pos. 342B:l).
83 Relay, intermittent windshield wiper operation in main fuse box in dashboard (pos. 22B:G (LHD) and pos. 22B:L RHD)).
83A Relay, intermittent rear window wiper operation in main fuse box in dashboard (pos. 22B:D (LHD) and pos. 22B:K (RHD)).
88 Switch, extra fog lights, to left (LHD) or right (RHD) of the steering wheel.
107 Relay, extra fog lights, in the main fuse box in the engine bay (pos. 342B:F).
109 High-level brake light in the tailgate.
113 Relay, electrically heated rear window, in the main fuse box in the dashboard (pos. 22B:H (LHD) and pos. 22B:G (RHD)).
155 Relay, radiator fan, in the main fuse box in the engine bay (pos. 342B:G).
166 Pressure switch, A/C and ACC fan, beside the radiator fan on the left-hand side between the grille and the fan.
171 Anti-frost thermostat, A/C and ACC, behind the ashtray in the centre console.
215 Dipswitch, on the left of the steering column.
216 Climate control unit in the centre console.
289 Anti-theft alarm control module, under the left-hand front seat.
359 Illuminated vanity mirror/reading lamp on the left under the sun visor.
360 Illuminated vanity mirror/reading lamp on the right under the sun visor.
419 Pressure switch, A/C, beside the radiator fan on the left between the grille and the fan.
430 Control module, TRIONIC engine management system, on the right-hand side behind the side trim under the A pillar.
445 Data link connector under the dashboard by (H16-1) the steering wheel.
446 Relay, driver's seat, under the driver's seat.
500 ICE control module beside the steering column above the relay holder.
504 Heating and ventilation control panel in the middle of the dashboard in the centre console.
505 Control module M2.10.1 on the right-hand side behind the side trim under the A pillar.
510 Control module M2.8.1 on the right-hand side behind the side trim under the A pillar.
540 Main instrument display panel in the dashboard.
541 SID unit in the middle of the dashboard.
H2-6 Under the driver's seat (LHD).
H2-7 Under the driver's seat (RHD).
H4-4 Behind the left-hand wheel housing in the luggage compartment.
H8-3 Under the driver's seat.
H10-2 On a bracket below the left-hand A pillar.
H10-4 Behind the left-hand wheel housing in the luggage compartment.
H33-1 Blue 33-pin connector on a bracket below the left-hand A pillar.
H33-2 Black 33-pin connector on a bracket below the left-hand A pillar.
H33-3 Grey 33-pin connector on a bracket below the left-hand A pillar.
H33-4 Behind the glove compartment on the bulkhead.
