Subject:
Connector for Mobile Telephones

**Application:
1994-900 Models,
1990-9000 Models**

Supersedes PSI 11/93-0414

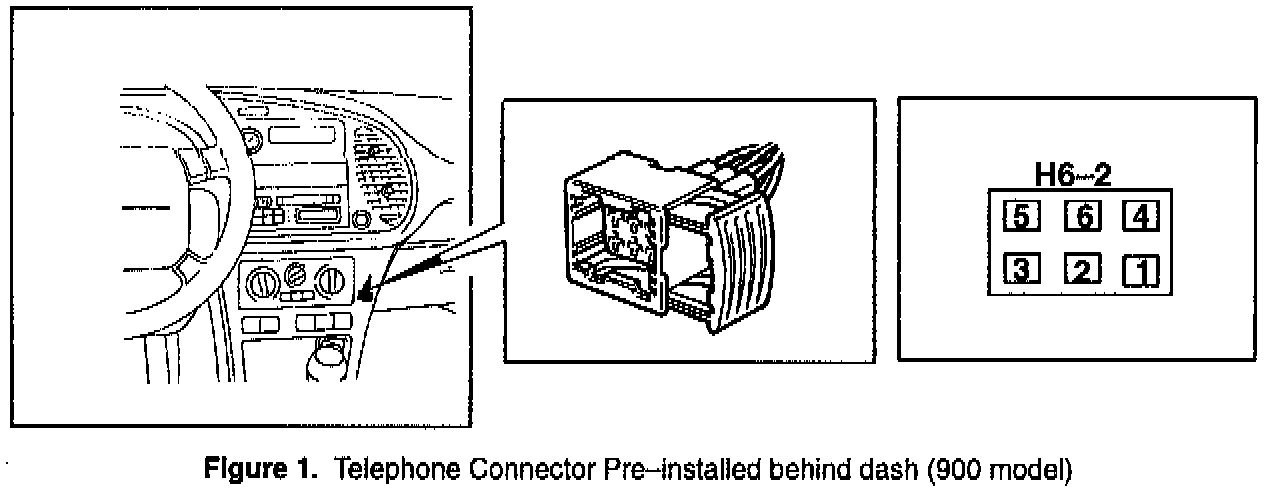

To ensure proper connection of mobile telephones in Saabs, the Factory has provided connectors located behind the **center dash panel for easy installation. See Figure 1 for 900 information. The connector in 9000 models is similarly located. See Figure 5 for 9000 information.

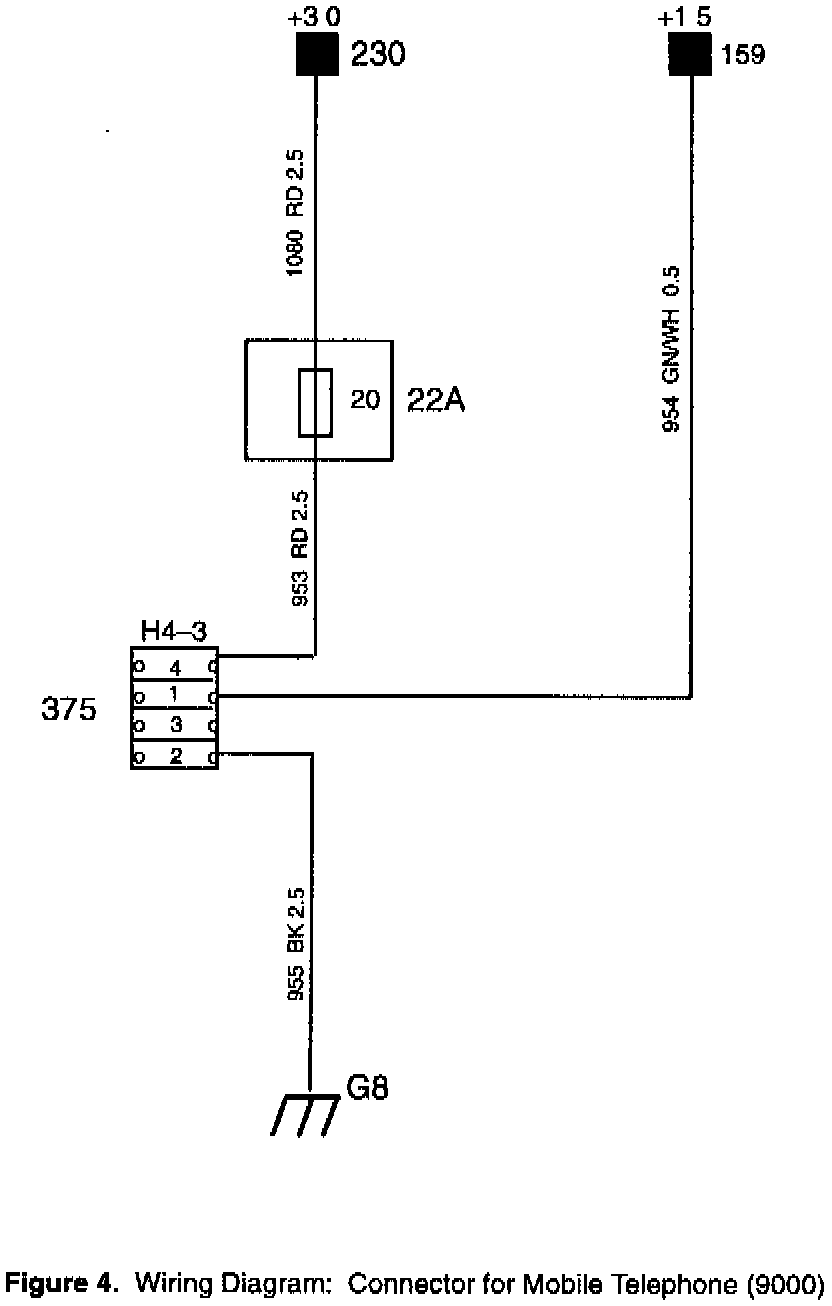

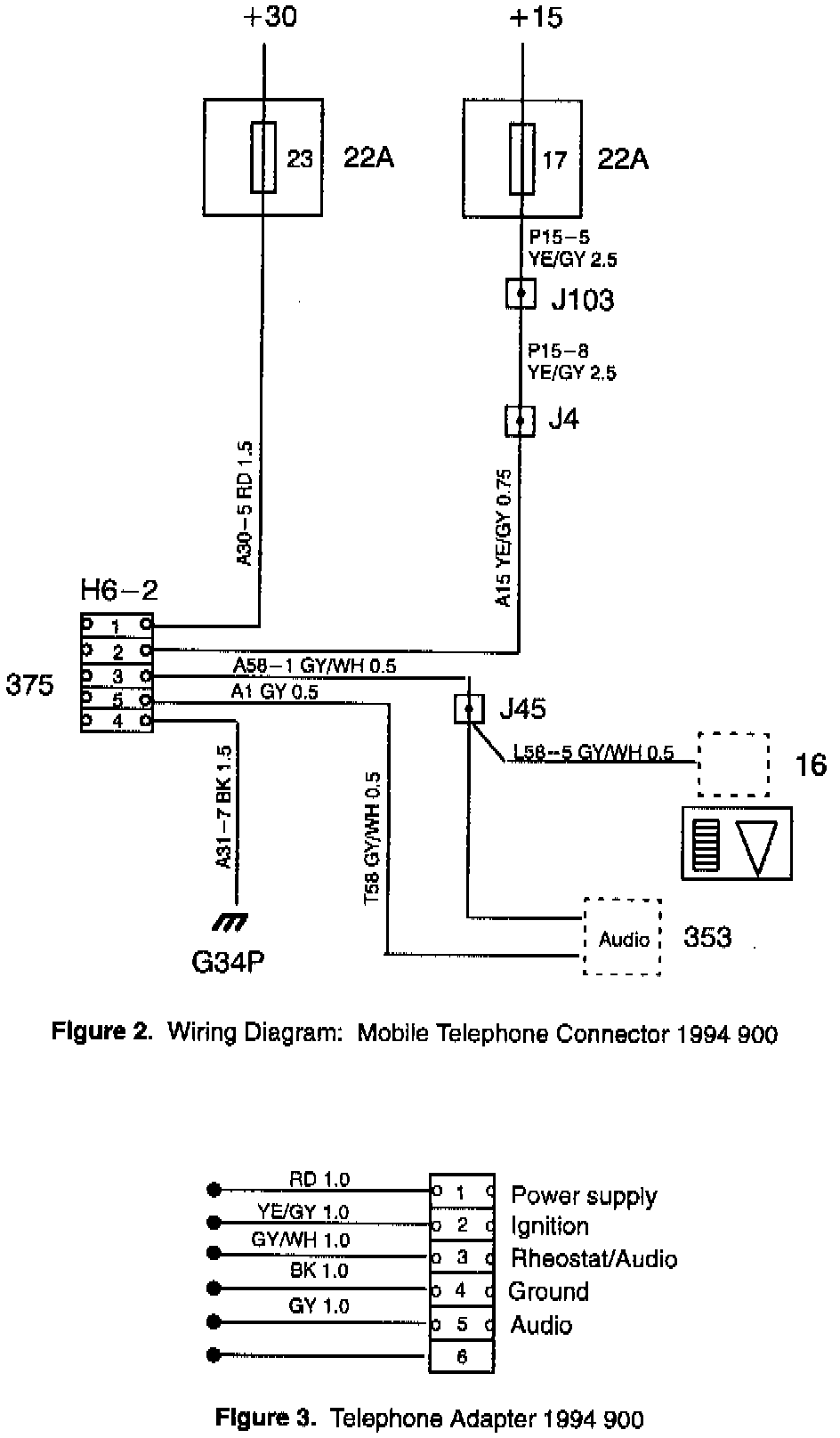

We are including a wiring diagram (figures 2 and 3) in this bulletin, showing correct wiring for this accessory on a 1994-900 model to ensure that the item functions properly and does not cause any interference with the vehicle's electrical system. See figure 4 for 9000 wiring diagram.





Since 1990, 9000 models have come with a 4-pole connector located behind the center dash panel to the right. See Figures at the end of this bulletin for more information regarding this connector.**

Saab recommends when installing mobile telephones and/or communications radios that an external antenna be used to eliminate the generation of electromagnetic fields within the vehicle and to increase the range of the component.

For 900's, the special 6-pole connector provides.

^ +30 supply from fuse 23 (pin 1)
^ +15 supply from fuse 17 (pin 2)
^ adjustment of the light from rheostat 16 (pin 3)
^ reduction of radio volume in the case of incoming/outgoing calls (pin 5)
^ ground connection (pin 4)

**A mating adapter harness is now available from spare parts stock for use on both 900 and 9000 models. Please recommend this item to all installers.

Adapter kit, 900 1994-02 48 666

Adapter Kit, 9000 1990-02 48 658**
