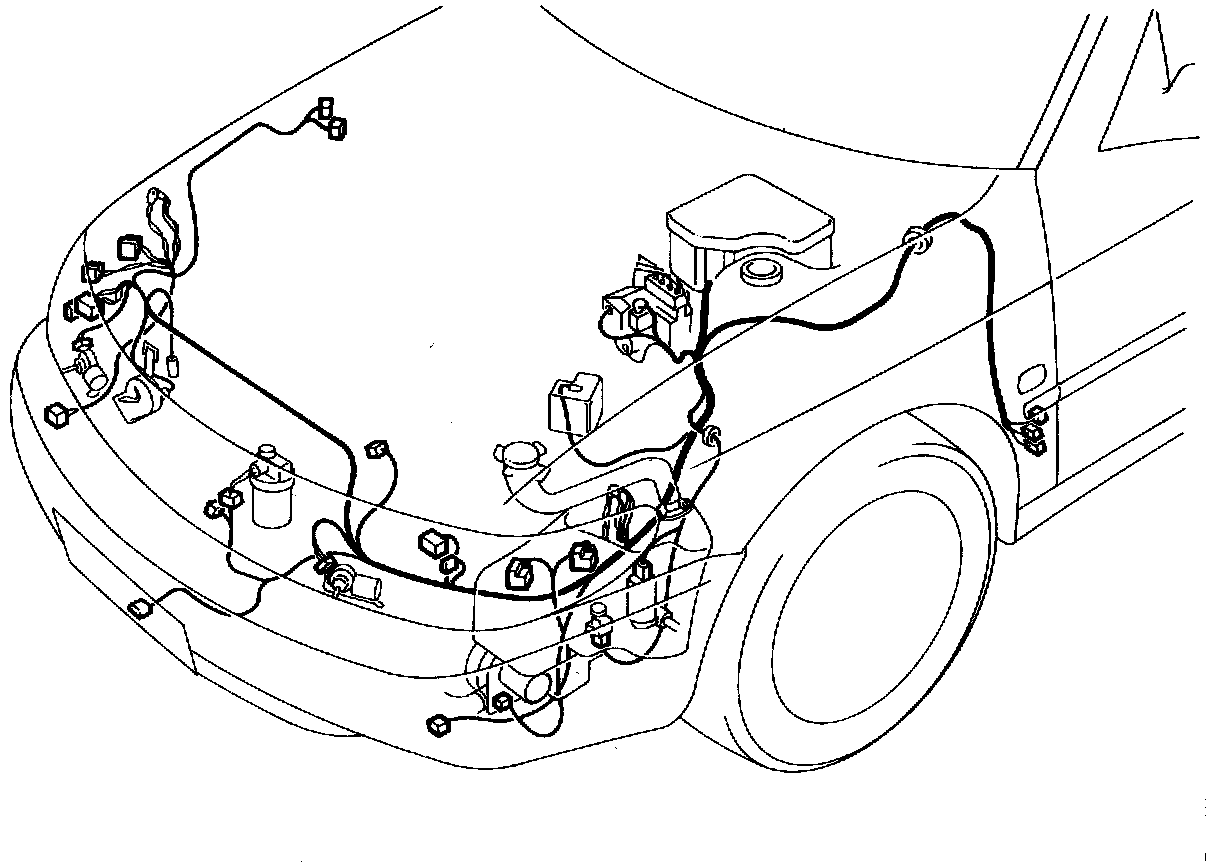

Replacement of Front Wiring In Engine Bay

1 Remove the battery, expansion tank, both fuse boxes and the air cleaner. The wiring in the engine bay will then be accessible.
2 Carefully mark all connectors before unplugging them from the components.
3 Install the new wiring. Check the cable codes and color coding of the connector carefully against the wiring diagrams.


NOTE: Fix the wiring properly so that no knocking, rattling or other unwanted noise occurs when the car is being driven.
