Grounding Points G7P

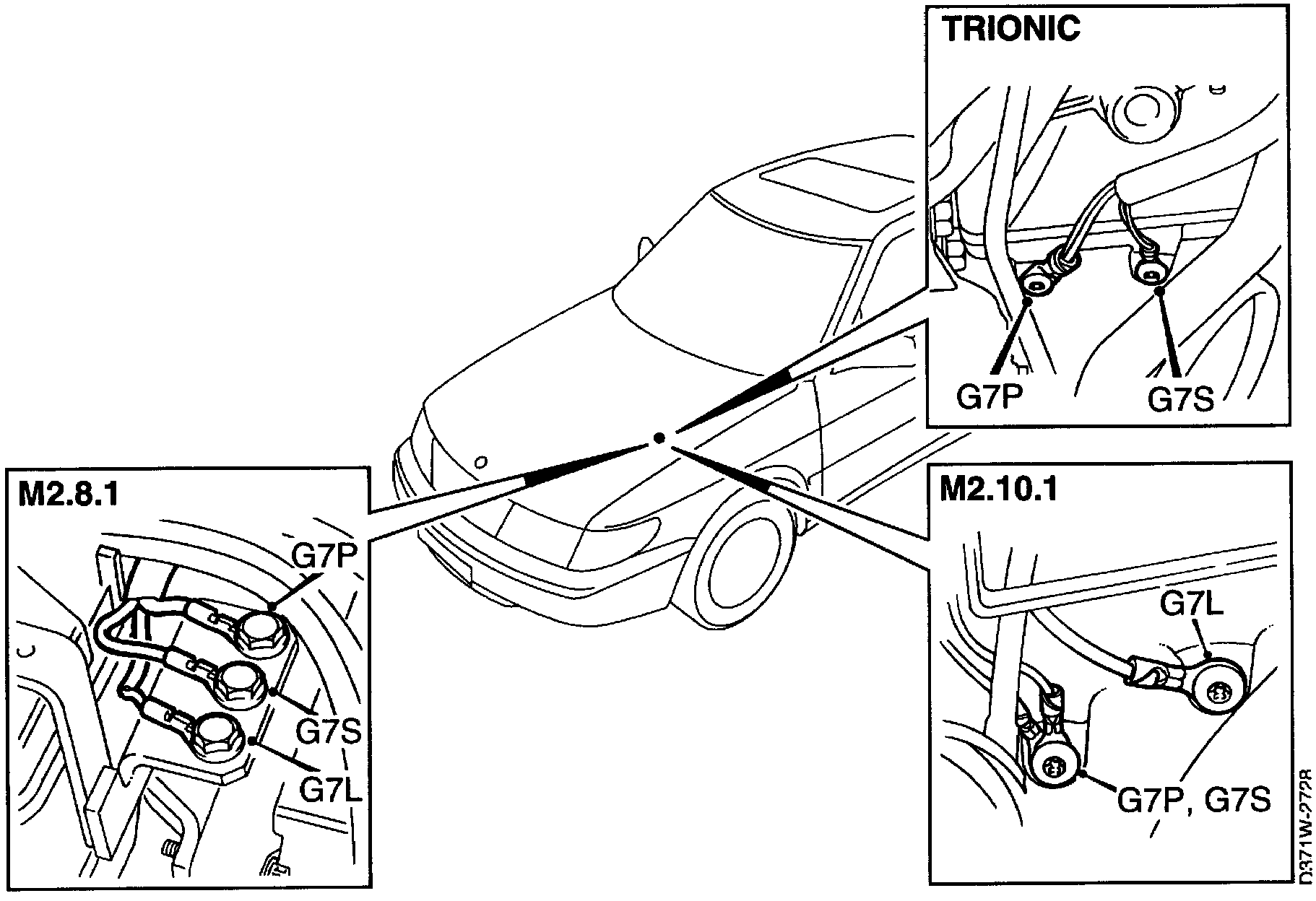

Grounding Points G7L, G7S & G7P:

Connected to grounding point G7P on a bracket on the engine are the following components:

505 M2.10.2 control module
510 M2.8.1 control module
136 Oxygen sensor (front M2.8.1)
515 Oxygen sensor (rear M2.8.1)
205 Mass air flow sensor
