Grounding Points G5

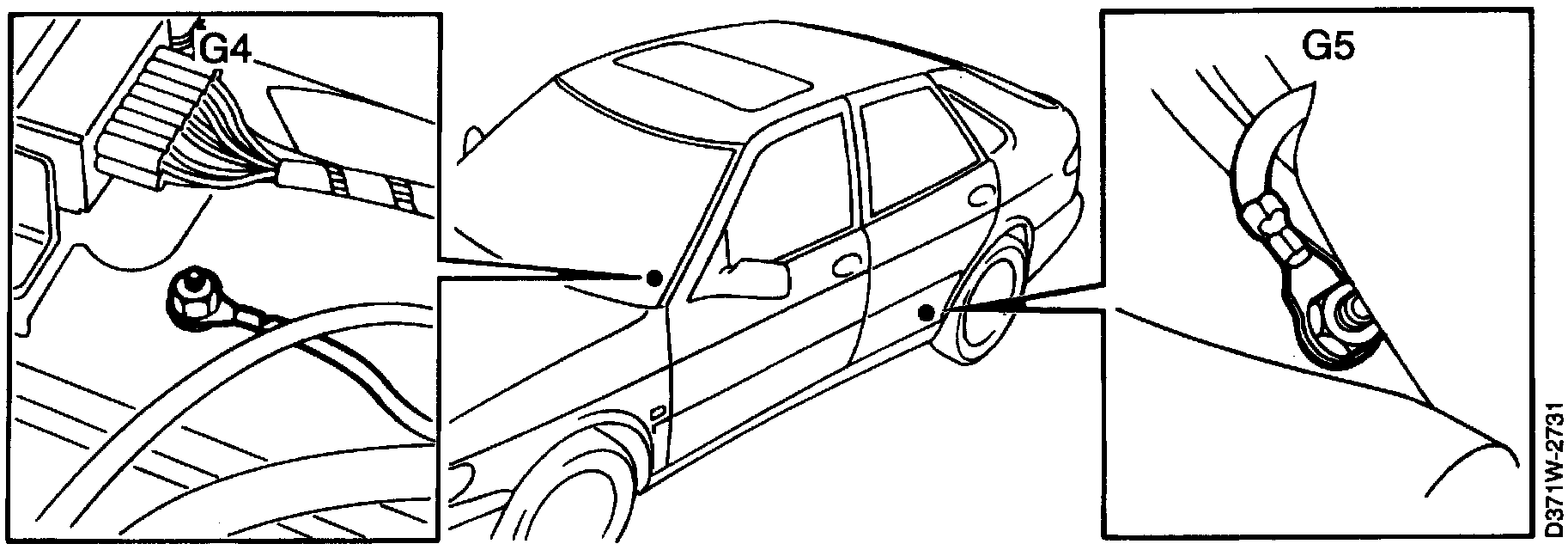

Grounding Point G4 (G5):

Connected to grounding point G5 on cars where this grounding point is located under the rear seat on the left-hand side are the following components:

289 Anti-theft alarm control module (otherwise G31)
323 Fuel pump (otherwise G3)
15 Number plate lighting (otherwise G3)
33 Rear fog light (otherwise G3)
32 Reversing lights (otherwise G3)
554 Microswitch for anti-theft alarm (tailgate) (otherwise G3)
115 Electrically heated rear window (otherwise G3)
109 High-level brake light (otherwise G3)
62A Rear window wiper motor (otherwise G3)
