Grounding Points G14

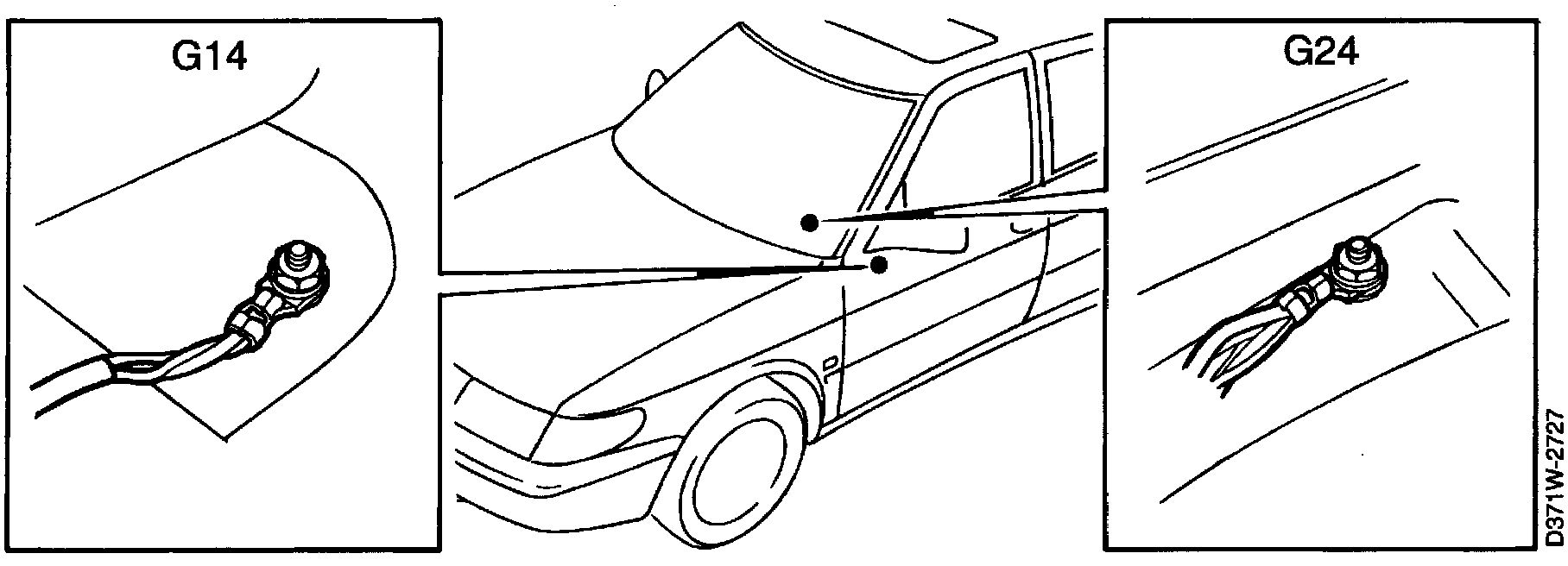

Grounding Points G14 & G24:

Connected to grounding point G14 located in the left-hand seat member under the carpet are the following components:

64 Left-hand and right-hand front seat heating pads
70 Seat-belt warning switch, LHD
357 Switch for electrically adjustable driver's seat
357K Control module for electrically adjustable driver's seat with memory (LHD)
386 Switches for electric window lifts/electric sunroof
